PBX 1, S
Rx+ Rx- Tx+ Tx-
Rx+ Rx- Tx+ Tx-
PBX 2, S
(Pressure clamps)

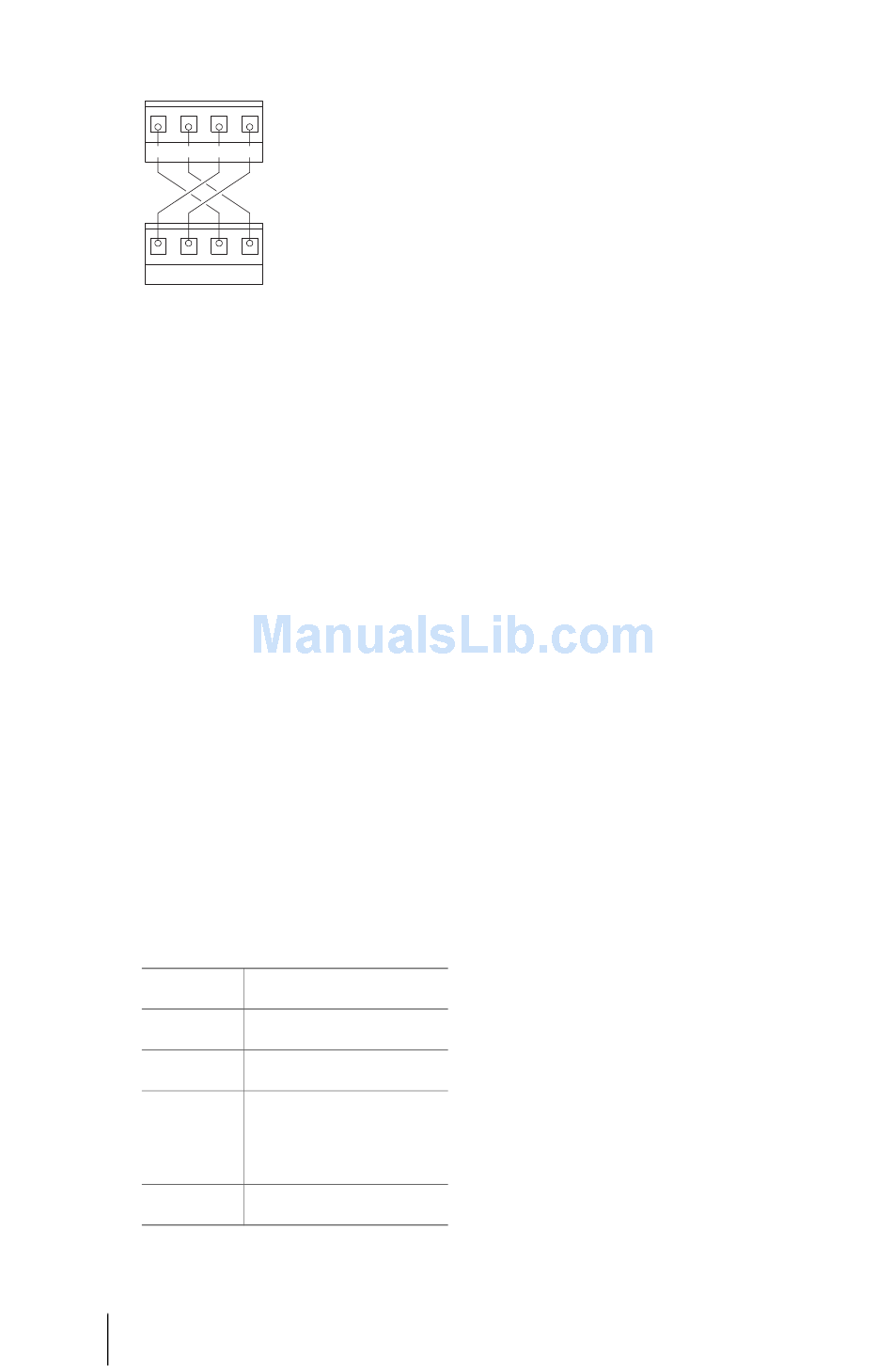

Example of the wiring of the S2M port
for two OpenCom 120s
8. If necessary, check to make sure
that the NT is fed by its own
power supply.
9. Reconnect the OpenCom 120 to
the power supply.
10. Configure the S
the Configurator of the
OpenCom 120 (refer to Configu-
ration starting on page 45).
Check the level 1 status with ref-
erence to the LEDs on the mod-
ule. None of the LEDs are illumi-
nated before the S
has been configured.
LED Displays
LED
1 (green)
2 (green)
3 (yellow)
4 (red)
42
S Connector Module
2M
2M
2M
module in
2M
module
2M
Meaning
Synchronous (= ok)
Blue alarm
Remote alarm
or out of sync
(yellow alarm)
Loss of signal (red alarm)
11. Pull out the mains plug of the
OpenCom 120 again and close
the housing.
12. Reconnect the OpenCom 120 to
the power supply.

Configuration

The menu item S appears in the
2M
Configurator, menu PBX Configura-
tion: Ports after installation of the
S module. Configure the port in
2M
the input mask of this menu item.
Further information on this can be
found in the online help.
If the menu item S
2M
check whether or not the firmware
has to be updated. You need software
release 3.0 or higher. The current
firmware version is given in the menu
System Info: Versions.
is not displayed,
