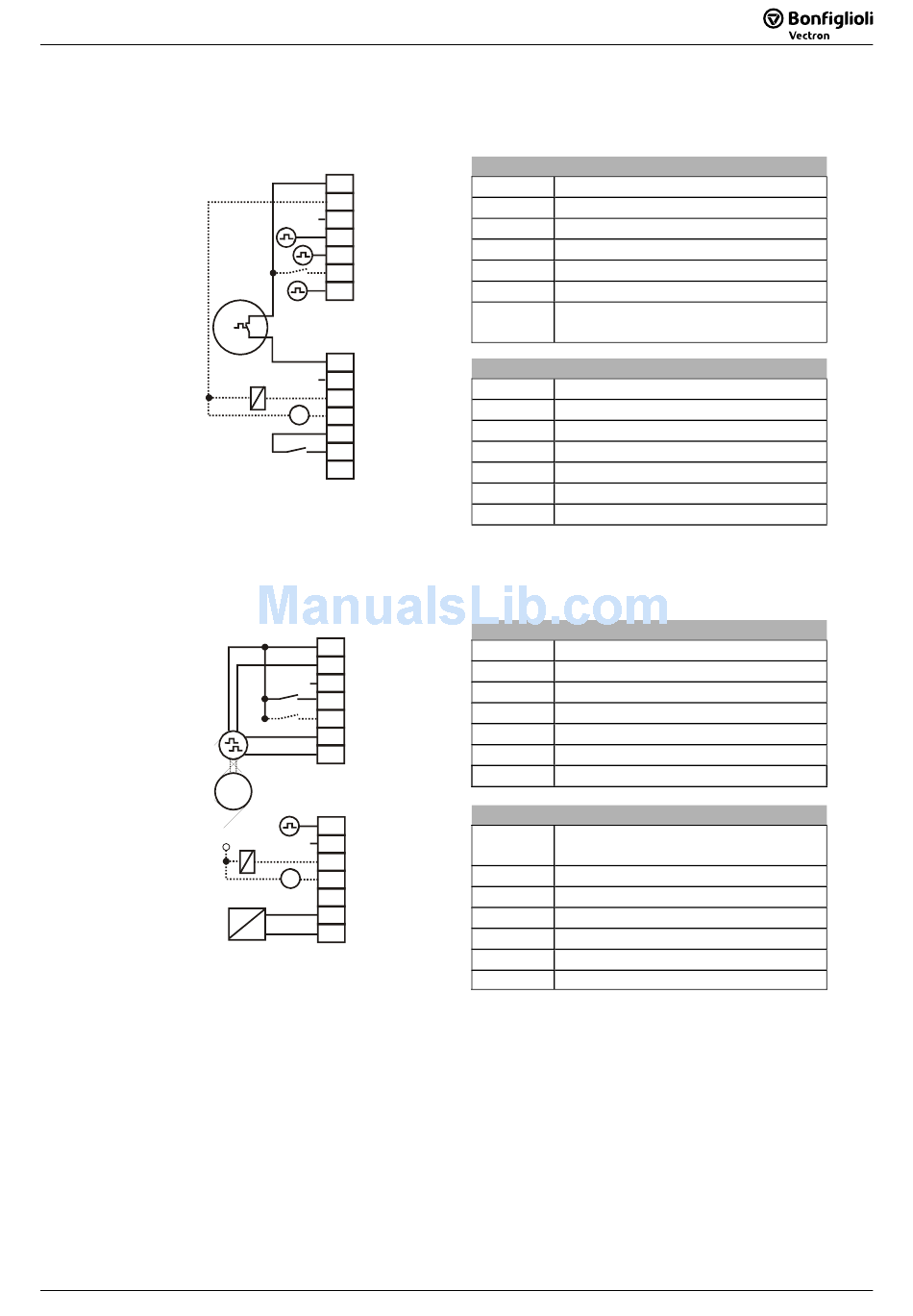

BONFIGLIOLI ACTIVE CUBE Applications Manual page 9

Configuration 116– sensorless control with electronic gear and
index control
Configuration 215– field-oriented control with electronic gear
and position control
09/08
09/08
X210A
1 +20 V/180 mA
2 GND 20 V
STOA
3
S1IND
S2IND
4
5
S3IND
6
S4IND
7
S5IND
M
X210B
1 S6IND
S7IND
STOB 2
-
+
S1OUT
3
-
+
V MFO1A
4
+10 V/4 mA
5
6 MFI1D
GND 10 V
7
X210A
1 +20 V/180 mA
2 GND 20 V
STOA 3 S1IND
4 S2IND
5 S3IND
+ -
B
6
S4IND
A
7
S5IND
M
X210B
1 S6IND
GND
S7IND
2
STOB
-
+
S1OUT
3
-
+
MFO1A
V
4
+10 V/4 mA
5
+
6 MFI1A
GND 10 V
7
-
Application Manual Electronic Gear
Application Manual Electronic Gear
Control terminal X210A
X210A.1 Supply voltage +20V
X210A.2 Ground 20 V
X210A.3 Safety function, digital input STOA
X210A.4 Index signal Master
X210A.5 Index signal Slave
X210A.6 Start of clockwise operation
X210A.7 Reference value electronic gear
at speed sensor 1 input, track A
Control terminal X210B
X210B.1 Motor thermal contact
X210B.2 Safety function, digital input STOB
X210B.3 Operating message
X210B.4 Analog signal of actual frequency
X210B.5 Supply voltage +10V
X210B.6 Index controller release
X210B.7 Ground 10 V
Control terminal X210A
X210A.1 Supply voltage +20V
X210A.2 Ground 20 V
X210A.3 Safety function, digital input STOA
X210A.4 Start of clockwise operation
X210A.5 Start of anticlockwise operation
X210A.6 Speed sensor track B
X210A.7 Speed sensor track A
Control terminal X210B
X210B.1 Repetition frequency input
(reference value electronic gear)
X210B.2 Safety function, digital input STOB
X210B.3 Operating message
X210B.4 Analog signal of actual frequency
X210B.5 Supply voltage +10V
X210B.6 Analog signal reference gear factor
X210B.7 Ground 10 V
7
7
