3
3.1
After completion of the installation work, make sure to check all control and power
connections again before switching on the mains voltage. If all electrical connections
are correct, make sure that the frequency inverter is not enabled (control input S1IND
open). After power-up, the frequency inverter carries out a self-test and the relay
output (X10) reports "Fault".
After a few seconds, the self-test is complete, the relay (X10) picks up and signals "no
fault ".
If the unit is in "as-delivered" condition or after resetting the unit to the factory set-
tings, the guided commissioning procedure is started automatically. On the control
unit, the "SetUP" menu from the menu branch CTRL is displayed.
3.2
Caution!

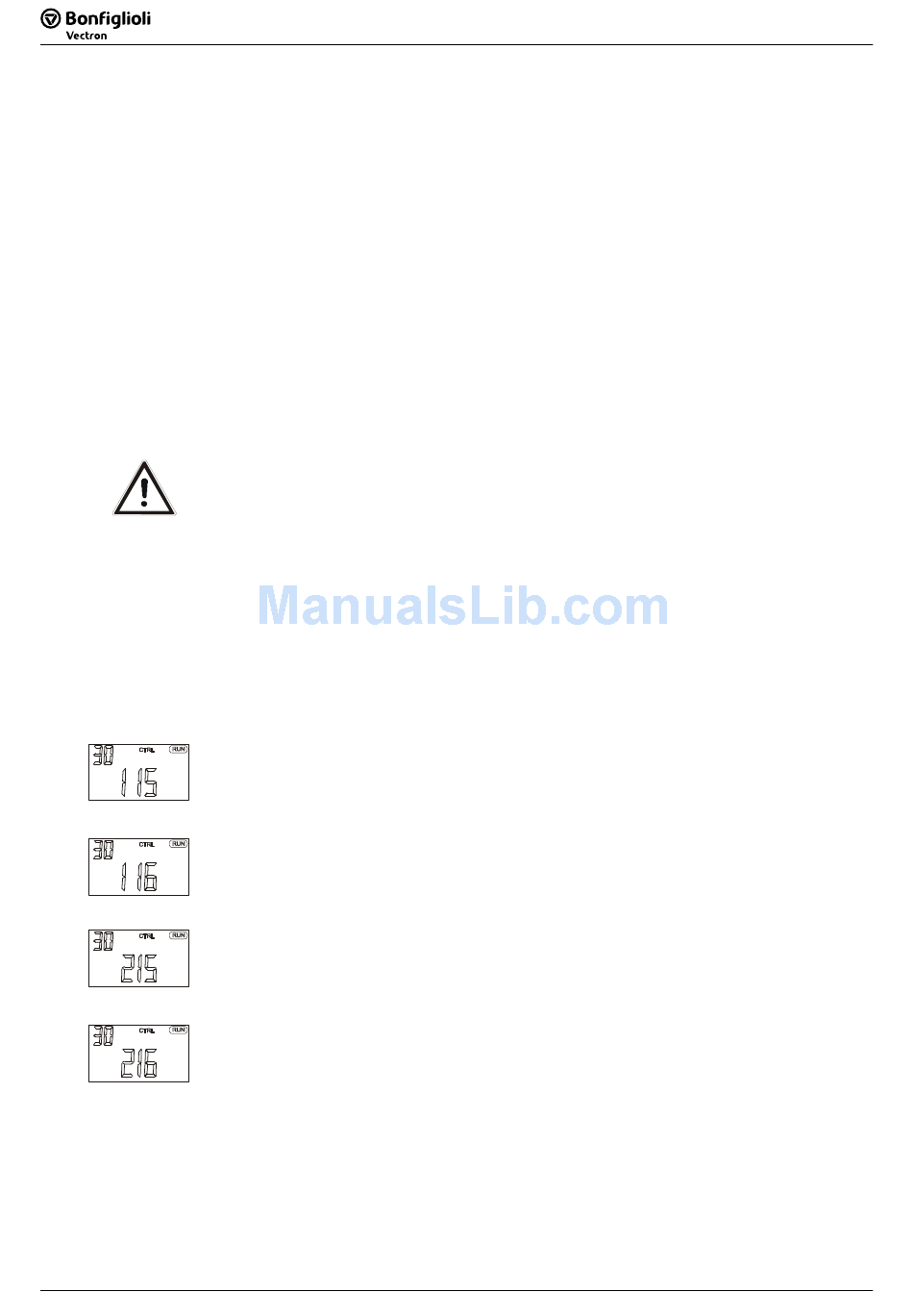

Carry out the guided commissioning procedure of the frequency inverter for one of the
configurations listed below. These contain the function of the electronic gear with
position control or with index control.
Note:
Configuration 115, sensorless control with electronic gear and position con-
trol
Configuration 115 extends the sensorless control of Configuration 110 by the functions
of the electronic gear and a position controller.
Configuration 116, sensorless control with electronic gear and index control
Configuration 116 extends the sensorless control of Configuration 110 by the functions
of the electronic gear and an index controller.
Configuration 215, field-oriented control with electronic gear and position
control
Configuration 215 extends the field-oriented control of Configuration 210 by the func-
tions of the electronic gear and a position controller.
Configuration 216, field-oriented control with electronic gear and index
control
Configuration 216 extends the field-oriented control of Configuration 210 by the func-
tions of the electronic gear and an index controller.
10
10

Commissioning of the Frequency Inverter

Switching on Mains Voltage

Setup Using the Control Unit

During the guided commissioning, comply with the safety instructions in
chapter "General Safety Instructions and Information on Use" and in the
Operating Instructions or the Brief Instructions.
The guided commissioning contains the function for parameter identifi-
cation. The parameters are determined by way of measurement and set
accordingly. In the case of higher requirements as regards the accuracy of
the speed/torque control, you should carry out the guided commissioning
procedure once again under operating conditions because part of the
machine data depends on the operating temperature.
