Connections

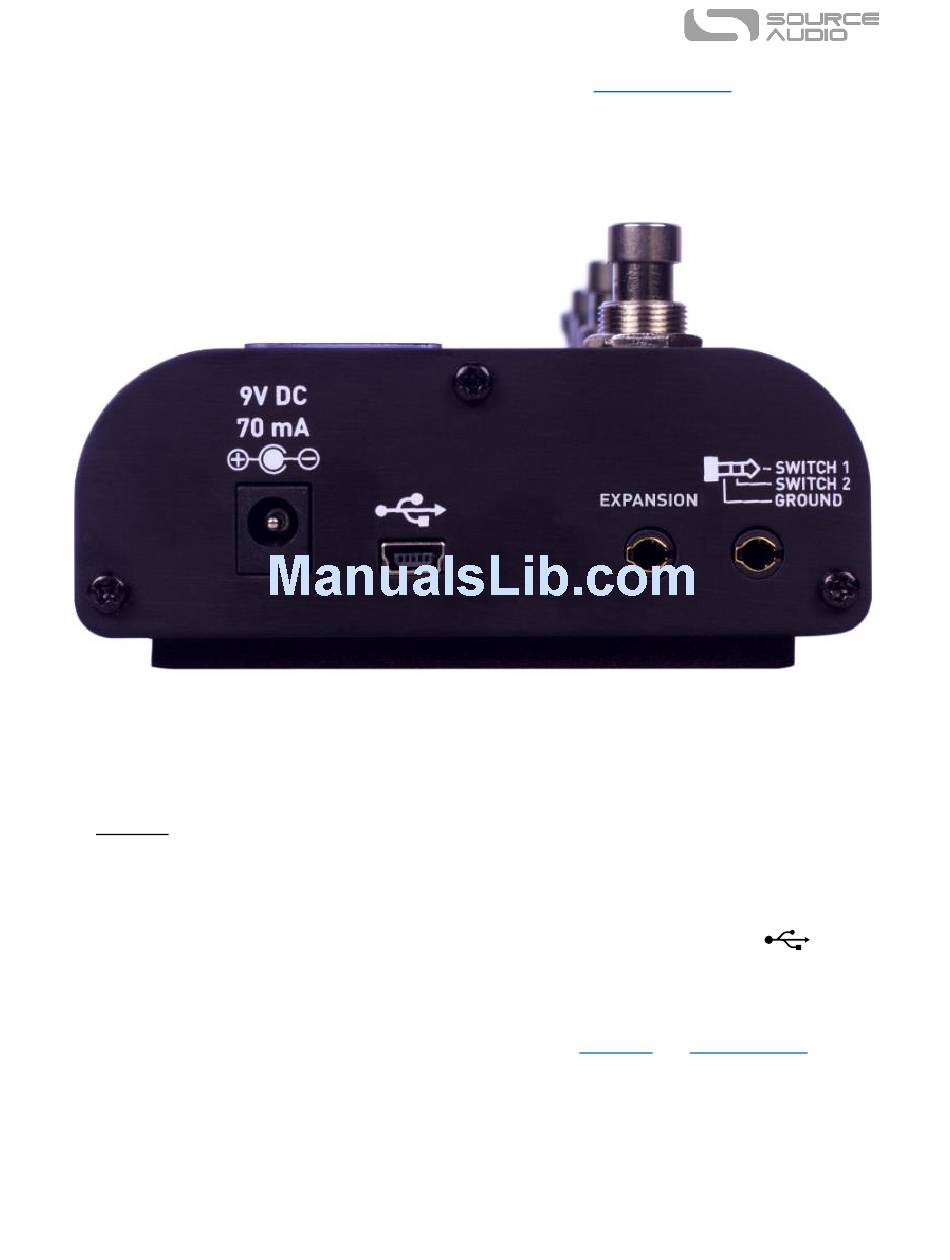

Left Side Connections
9V DC (Power)
Standard barrel connector designed to accept a regulated 9V DC power supply. The tip of the
connector is negative and the sleeve is positive. The power supply must be able to source at least 70
mA. The Soleman can be powered either by an external DC power supply or directly by the USB port.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
Please be very cautious when using 3
specifications for regulated voltage (9V), polarity (tip negative), and minimum current (70 mA).
USB
Connect your computer (Mac or Windows) to the Soleman's USB port (denoted by the
using a standard mini USB cable. The Soleman is a class compliant USB device, meaning that it should
be recognized by Mac and Windows computers automatically. The first time you connect the
Soleman to a computer, it may take a few moments for the computer to recognize it. For more
information about the Soleman's USB capabilities, refer to the
of the User's Guide. The Soleman can also be powered directly over USB, although the display will be
brighter if a separate DC power supply is used.
Expansion
The Expansion port is reserved for future use.
