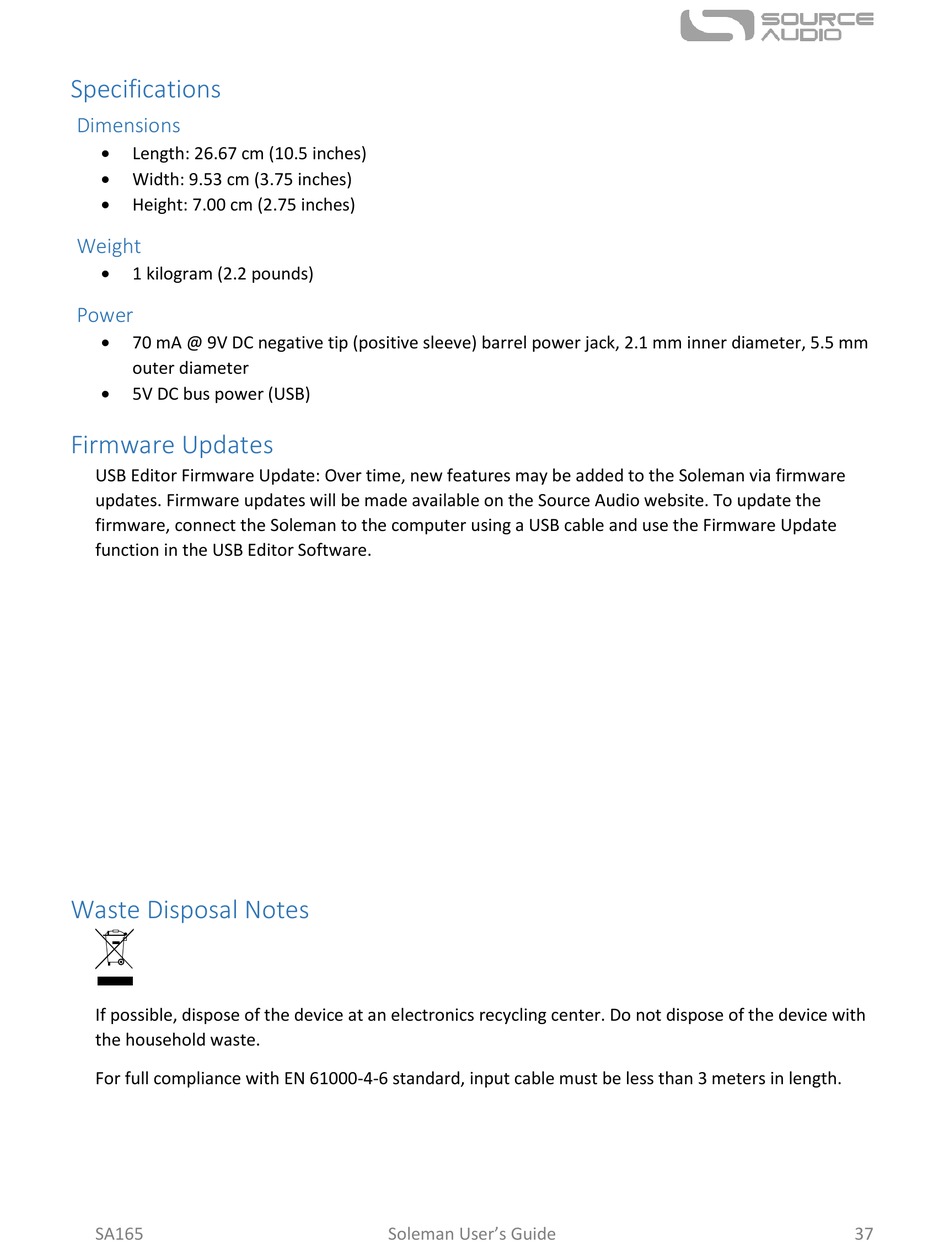

Specifications; Waste Disposal Notes - Source Audio Soleman User Manual

Specifications

Dimensions

Length: 26.67 cm (10.5 inches)

Width: 9.53 cm (3.75 inches)

Height: 7.00 cm (2.75 inches)
Weight

1 kilogram (2.2 pounds)
Power

70 mA @ 9V DC negative tip (positive sleeve) barrel power jack, 2.1 mm inner diameter, 5.5 mm
outer diameter

5V DC bus power (USB)
Firmware Updates
USB Editor Firmware Update: Over time, new features may be added to the Soleman via firmware
updates. Firmware updates will be made available on the Source Audio website. To update the
firmware, connect the Soleman to the computer using a USB cable and use the Firmware Update
function in the USB Editor Software.

Waste Disposal Notes

If possible, dispose of the device at an electronics recycling center. Do not dispose of the device with
the household waste.
For full compliance with EN 61000-4-6 standard, input cable must be less than 3 meters in length.
SA165 Soleman User's Guide 37
