Connections

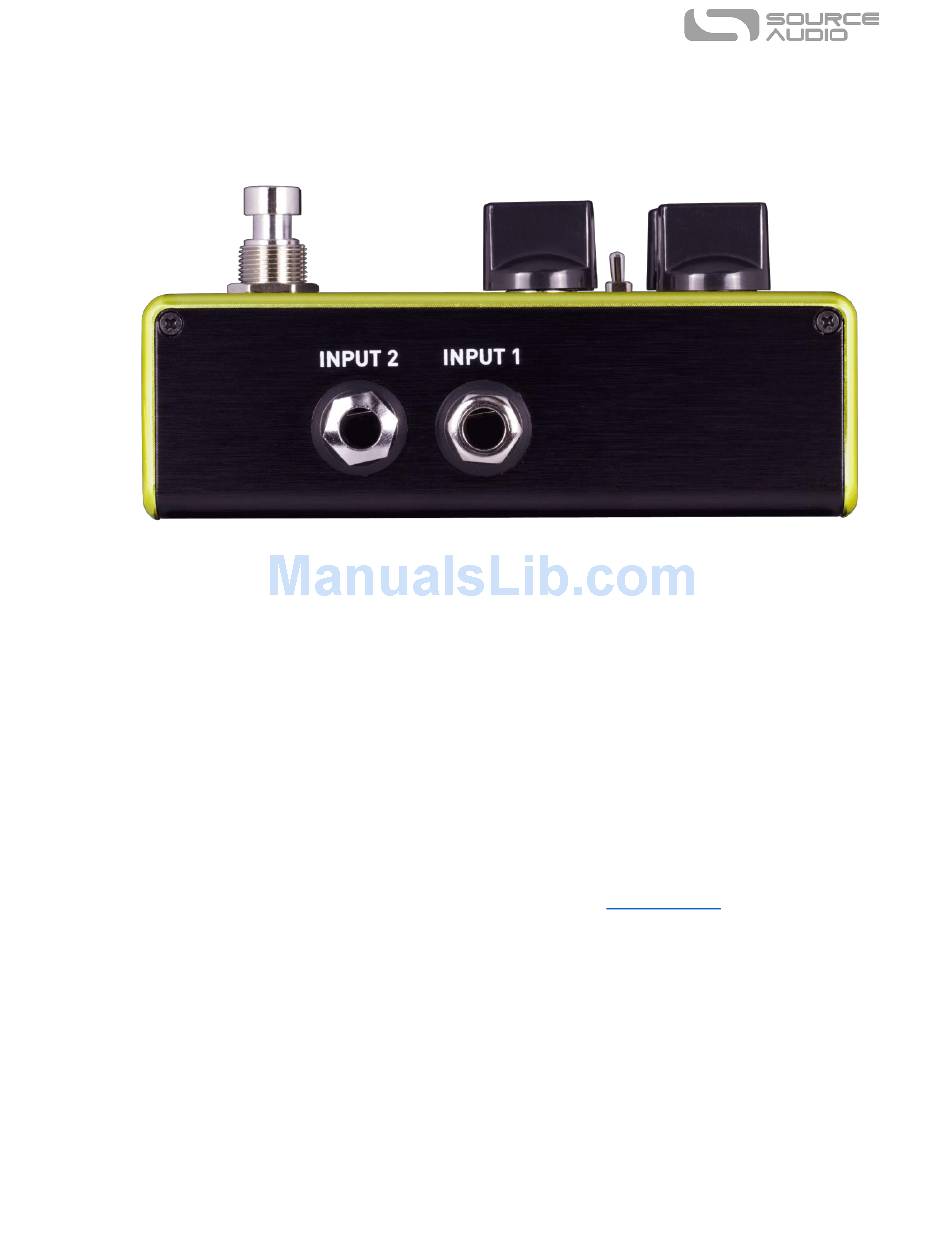

Input Side Connections
Input 1
This is the primary input for guitar, bass, or other instruments. It can also accept line-level inputs.
Connect it to your instrument or other audio source using a mono (TS) ¼" cable.
Input 2
Input 2 can act either as an audio input or as the data connection for the Neuro App, or both at the
same time.
Input 2 as an Audio Input
The tip contact on Input 2 acts as a secondary input for guitar, bass, or other instruments. It is only
active when the Vertigo is configured with a signal routing that uses stereo inputs. Connect it to your
instrument (or the previous effect in the signal chain) using a mono (TS) ¼" cable. By default, the
Vertigo is a true stereo effect. Other routing options are available using the Neuro App or USB Editor
software. For more information about stereo routing, refer to the
Input 2 as a Neuro App Data Input
The ring contact on Input 2 acts as a data connection for the Neuro App. Connect it to your mobile
device using a stereo (TRS) ¼" cable. It can also accept daisy-chained Neuro data from another
Neuro-compatible pedal in the chain, provided that a TRS cable is used. The audio signal (if
applicable) will be on the tip contact of the plug, and the Neuro App data will be on the ring contact.
SA243 Vertigo Tremolo User's Guide
Stereo Routing section.
5
