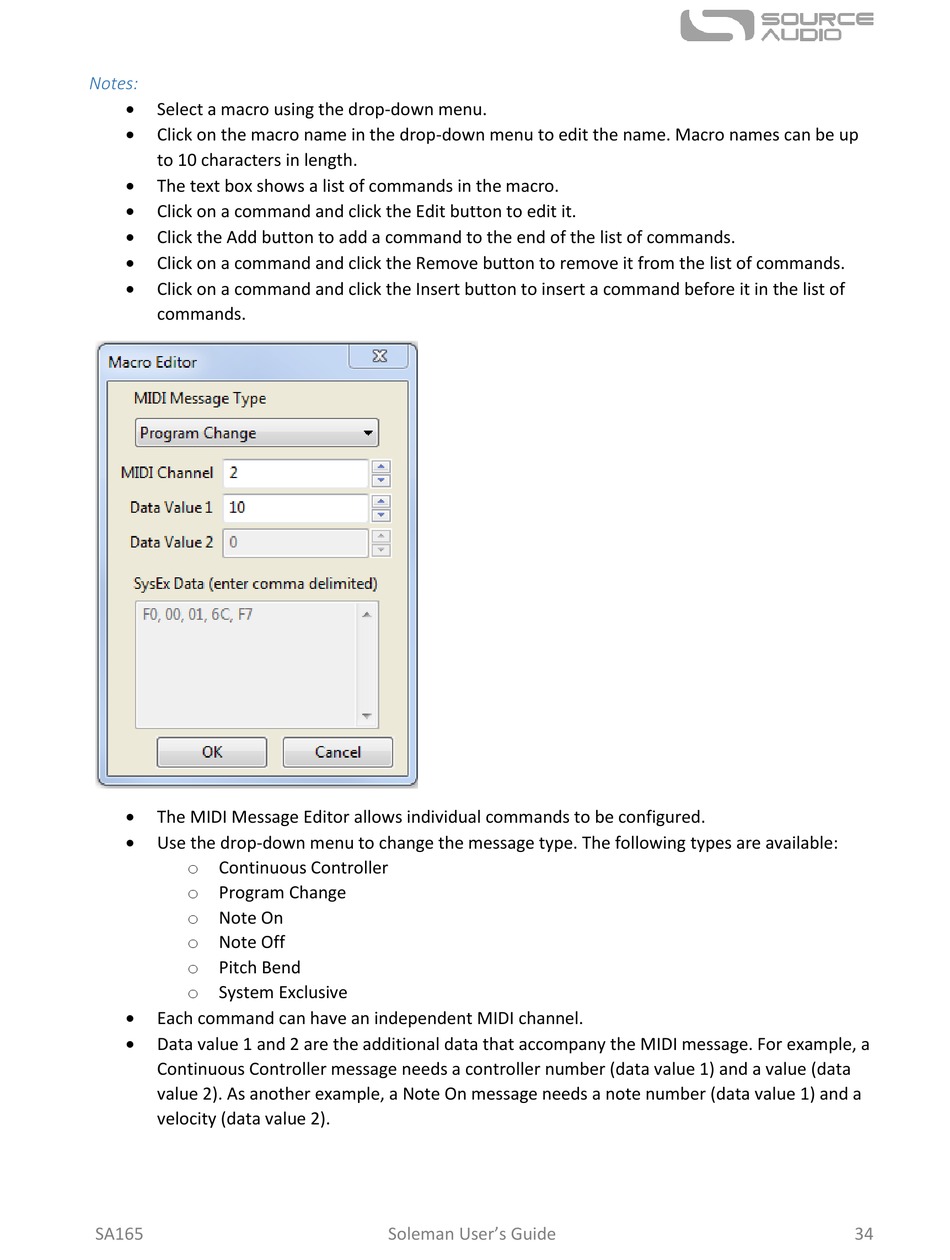

Source Audio Soleman User Manual page 34

Notes:

Select a macro using the drop-down menu.

Click on the macro name in the drop-down menu to edit the name. Macro names can be up
to 10 characters in length.

The text box shows a list of commands in the macro.

Click on a command and click the Edit button to edit it.

Click the Add button to add a command to the end of the list of commands.

Click on a command and click the Remove button to remove it from the list of commands.

Click on a command and click the Insert button to insert a command before it in the list of
commands.

The MIDI Message Editor allows individual commands to be configured.

Use the drop-down menu to change the message type. The following types are available:
o Continuous Controller
o Program Change
o Note On
o Note Off
o Pitch Bend
o System Exclusive

Each command can have an independent MIDI channel.

Data value 1 and 2 are the additional data that accompany the MIDI message. For example, a
Continuous Controller message needs a controller number (data value 1) and a value (data
value 2). As another example, a Note On message needs a note number (data value 1) and a
velocity (data value 2).
SA165 Soleman User's Guide 34
