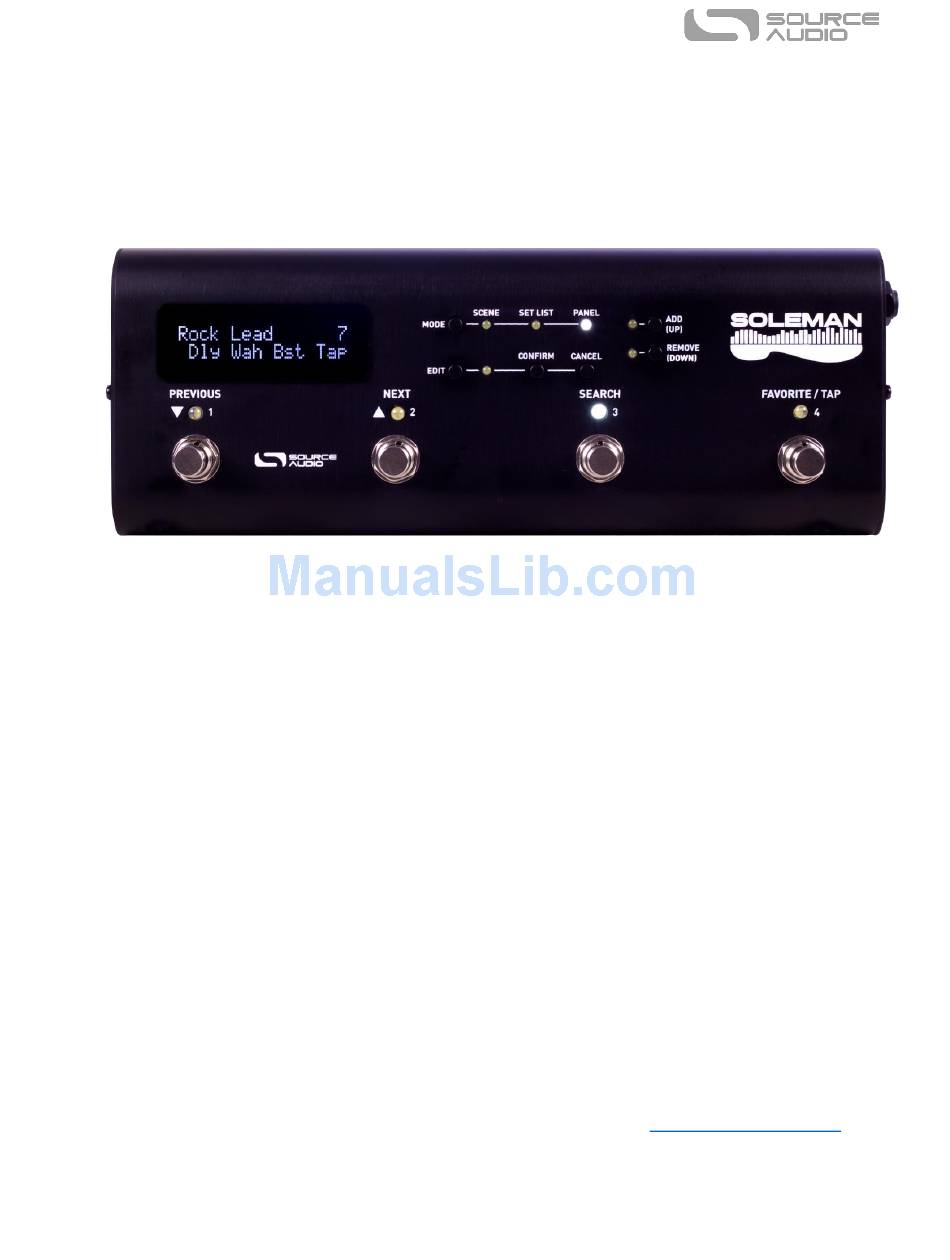

Overview - Source Audio Soleman User Manual

The Soleman's high-contrast LCD is visible in light conditions ranging from a dark stage to direct
sunlight. It displays relevant information about scenes, set lists, MIDI configuration, expression
outputs, and other modes.
Enjoy!
- The Source Audio Team

Overview

Two MIDI Outputs – Connect to up to two external hardware MIDI devices directly to the Soleman
using the standard 5-pin DIN connectors.
Scene Mode – In the most basic mode, the Soleman sends Program Change or Note On messages on
its MIDI outputs, allowing for plug-and-play compatibility with many MIDI devices such as the Source
Audio Neuro Hub.
List Mode – Arrange scenes in any order and step through them in sequence. Great for setting up set
lists for live shows. The Soleman can store up to 64 lists, each containing up to 90 scenes.
Panel Mode – Create highly customizable MIDI messages (including System Exclusive) for each of the
4 footswitches, tailoring the Soleman to your gear. The Soleman can store up to 64 panels, each
containing a vast array of customizable MIDI messages for each footswitch, expression assignments,
and configuration data.
USB-MIDI Interface – Class-compliant USB drivers make the Soleman plug-and-play ready for Mac
and Windows computers. The Soleman is a USB MIDI device that can be used in digital audio
workstation (DAW) or to control software synthesizers and virtual instruments. It is compatible with
built-in drivers on all supported operating systems, so no additional driver installation is required.
Expression Pedal – The expression input accepts a passive expression pedal and converts it to
Continuous Controller (CC) MIDI messages on the MIDI outputs.
Configuration Software – The Soleman is highly customizable using the Soleman Editor Software,
which runs on Windows / Mac and connects to the Soleman via USB.
SA165 Soleman User's Guide 2
