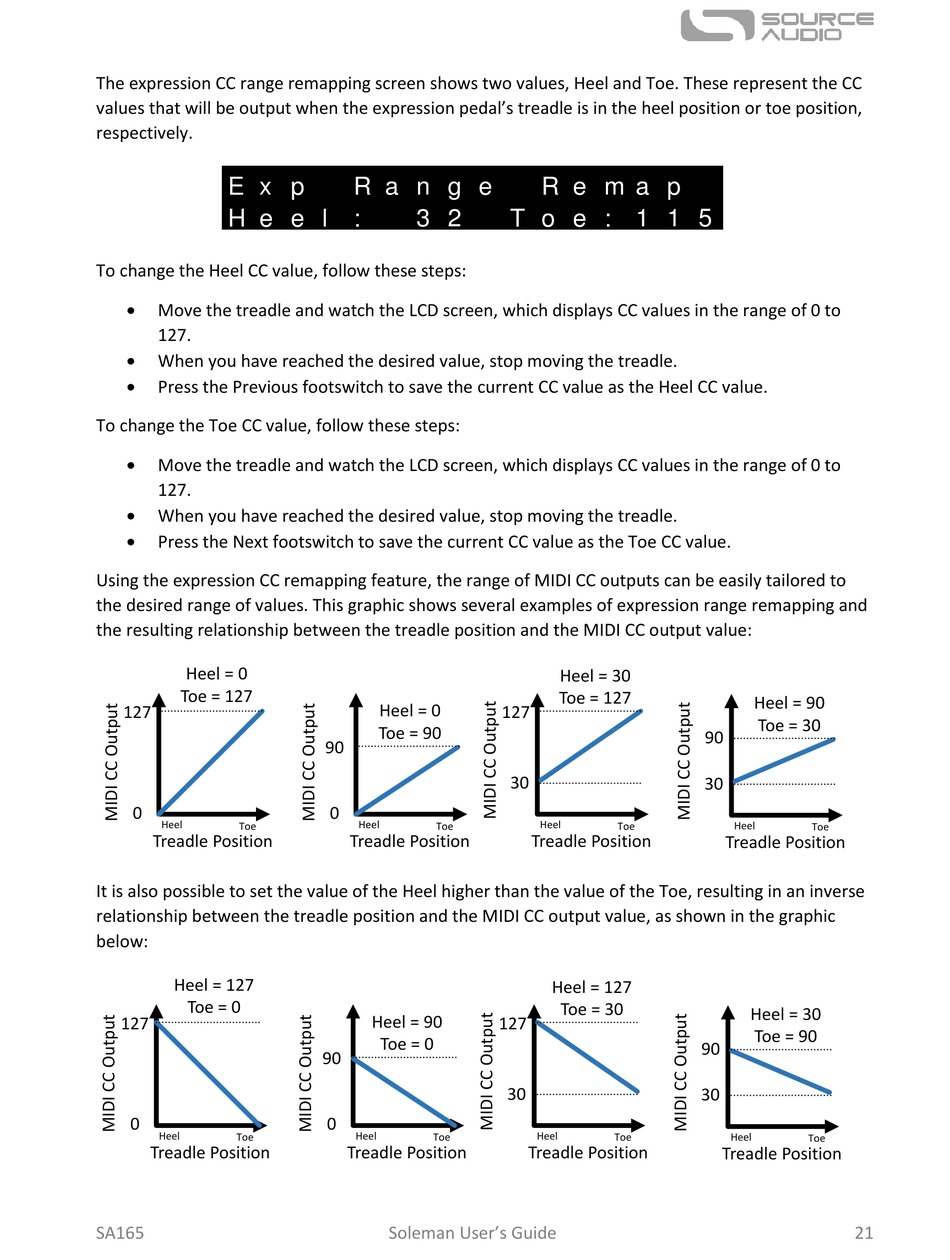

The expression CC range remapping screen shows two values, Heel and Toe. These represent the CC
values that will be output when the expression pedal's treadle is in the heel position or toe position,
respectively.
E x p
H e e l :
To change the Heel CC value, follow these steps:

Move the treadle and watch the LCD screen, which displays CC values in the range of 0 to
127.

When you have reached the desired value, stop moving the treadle.

Press the Previous footswitch to save the current CC value as the Heel CC value.
To change the Toe CC value, follow these steps:

Move the treadle and watch the LCD screen, which displays CC values in the range of 0 to
127.

When you have reached the desired value, stop moving the treadle.

Press the Next footswitch to save the current CC value as the Toe CC value.
Using the expression CC remapping feature, the range of MIDI CC outputs can be easily tailored to
the desired range of values. This graphic shows several examples of expression range remapping and
the resulting relationship between the treadle position and the MIDI CC output value:
Heel = 0
Toe = 127
127
0
Heel
Toe
Treadle Position
It is also possible to set the value of the Heel higher than the value of the Toe, resulting in an inverse
relationship between the treadle position and the MIDI CC output value, as shown in the graphic
below:
Heel = 127
Toe = 0
127
0
Heel
Toe
Treadle Position
SA165
R a n g e
3 2
Heel = 0
Toe = 90
90
0
Heel
Toe
Treadle Position
Heel = 90
127
Toe = 0
90
0
Heel
Toe
Treadle Position
Soleman User's Guide
R e m a p
T o e : 1 1 5
Heel = 30
Toe = 127
127
30
Heel
Toe
Treadle Position
Heel = 127
Toe = 30
30
Heel
Toe
Treadle Position
Heel = 90
Toe = 30
90
30
Heel
Toe
Treadle Position
Heel = 30
Toe = 90
90
30
Heel
Toe
Treadle Position
