External Switch Port
Up to two external switches can be connected to this port for additional ease of navigation in List and
Panel modes. The specific function of each switch can be set using in the Global Hardware Options
using the Edit Menu or the Soleman Editor software. For more information, refer to the
Footswitches section.
Right Side Connections

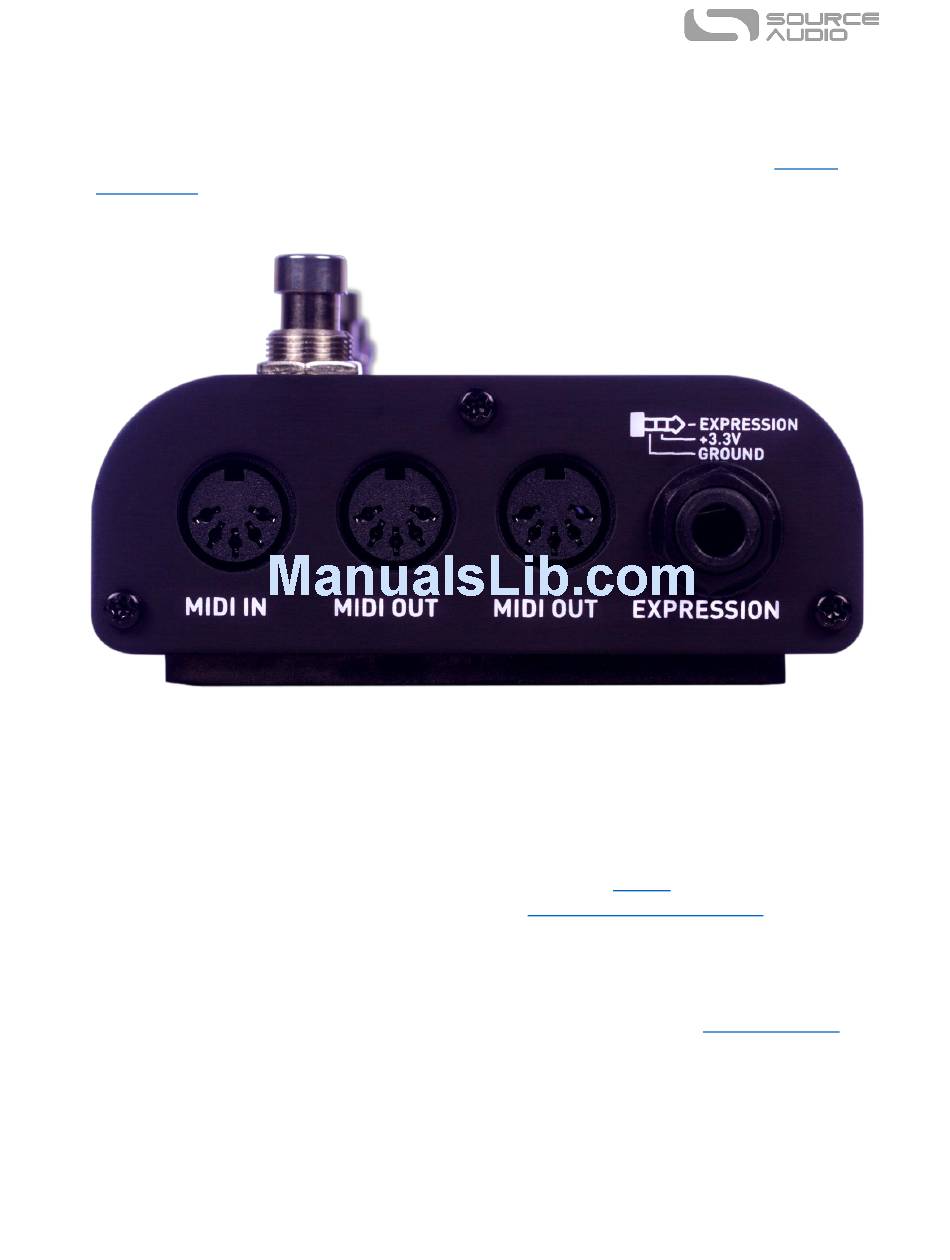

MIDI Out (x2)
The MIDI Out ports are the main connections to the external MIDI hardware you wish to control
using the Soleman. There are two MIDI outputs and they are both identical – each of them outputs
an exact copy of the same MIDI messages, allowing the Soleman to connect to multiple external
devices in parallel. The connectors are standard 5-pin DIN outputs. The Soleman is capable of sending
common MIDI message types (Program Change and Continuous Controller) in Scene and List modes,
and is fully programmable (including System Exclusive) when using Macros. For more information
about the MIDI capabilities of the Soleman, refer to the
MIDI In
This standard 5-pin DIN connector receives MIDI messages from external devices. The most common
use is to connect this input to the Neuro Hub's MIDI output. The Neuro Hub can then send scene
names to be displayed on the Soleman's LCD screen. For more details, refer to
Program Change messages sent to the Soleman's MIDI In will load corresponding Panels. Note On
messages sent to the Soleman's MIDI In will load corresponding Scenes.
