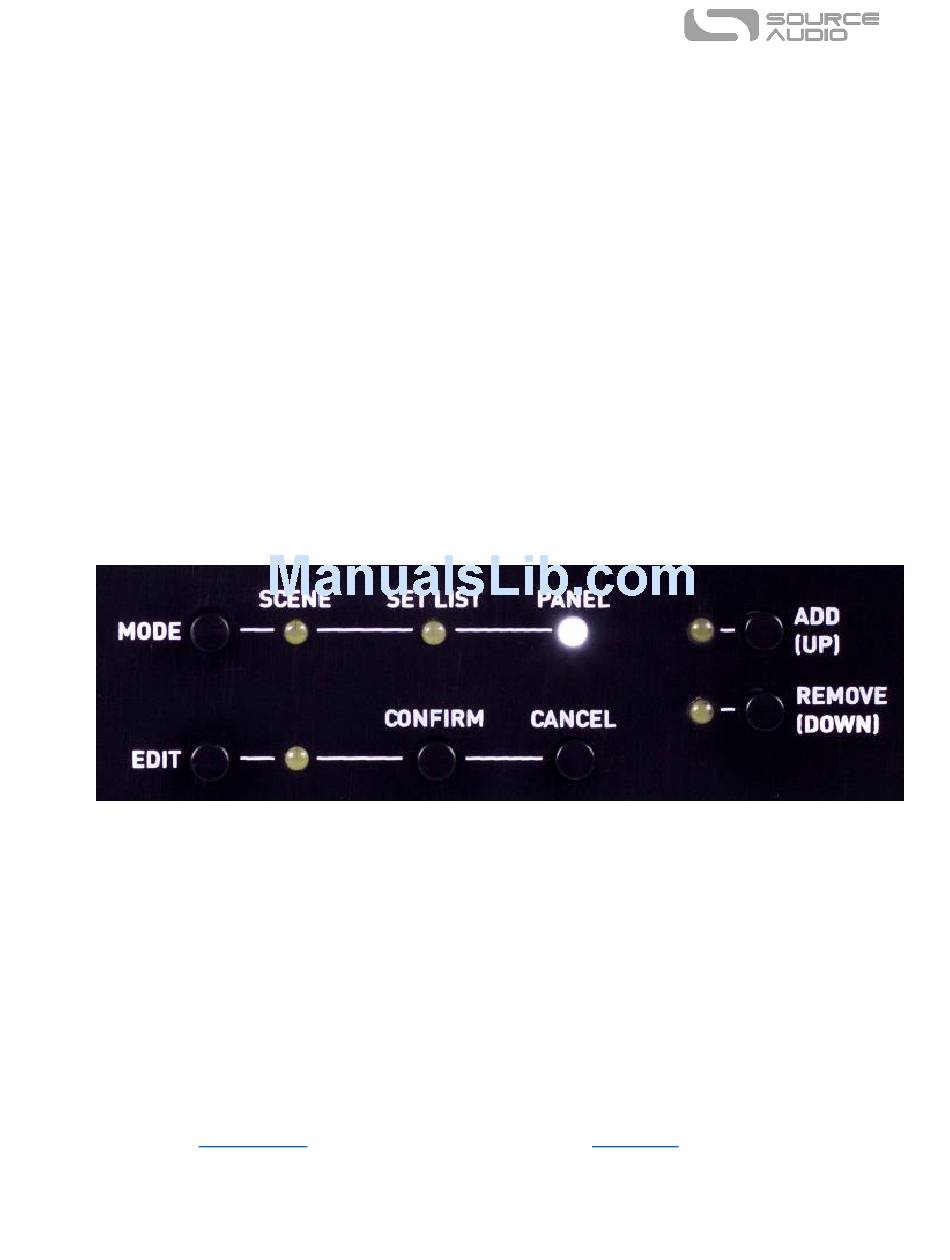

User Interface Overview

Mode Button: Toggles between the three main modes of the Soleman: Scene, List, and Panel. There
are three corresponding LEDs that indicate which mode is currently active.
Edit Button: Activates the Edit Menu. When the Edit Menu is active, the corresponding Edit LED will
blink. Inside the Edit Menu, press the Edit button to cycle through the various items in the menu.
Press and hold the Edit button to activate the Global Edit Menu.
Confirm Button: When the Edit Menu is active, pressing the Confirm button saves any changes made
and exits the Edit Menu. The Confirm button is also used to save changes to lists.
Cancel Button: When the Edit Menu is active, pressing the Cancel button reverts any changes made
and exits the Edit Menu. The Cancel button is also used to cancel edits to lists.
Add/Up Button: In List Mode, the Add/Up button can be used to add scenes to a list or insert scenes
in an arbitrary position in the list. In Panel Mode, the Add/Up button moves to the next panel. In the
Edit Menu, the Add/Up button selects the next item in the menu.
Remove/Down Button: In List Mode, the Remove/Down button can be used to remove scenes from
a list or edit a scene in the list. In Panel Mode, the Remove/Down button moves to the previous
panel. In the Edit Menu, the Remove/Down button selects the previous item in the menu.

Footswitch Overview

Previous Footswitch: In Scene mode or List mode, the Previous footswitch selects the previous scene.
In Panel mode, the Previous footswitch sends the MIDI message(s) associated with Footswitch 1.
Next Footswitch: In Scene mode or List mode, the Next footswitch selects the next scene. In Panel
mode, the Next footswitch sends the MIDI message(s) associated with Footswitch 2.
Search Footswitch: In Scene mode or List mode, the Search footswitch activates or deactivates
Search mode, which allows the user to step through scenes without sending any corresponding MIDI
data on the outputs. In Panel mode, the Search footswitch sends the MIDI message(s) associated
with Footswitch 3.
Favorite/Tap Footswitch: In Scene mode or List mode, the Favorite footswitch jumps to/from the
user-defined favorite
SA165
scene. If the Soleman is configured to use
Soleman User's Guide
Tap Tempo mode, then the
