Connecting the Pedal

Power
To power the unit, connect the included 9V DC power supply to the jack labeled DC 9V on the back
panel.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
A power supply with insufficient current levels may also cause noise or other unpredictable behavior.
Please be very cautious when using 3
requirements printed on the bottom of the Collider's housing.

Connections

Guitar/Audio Connections

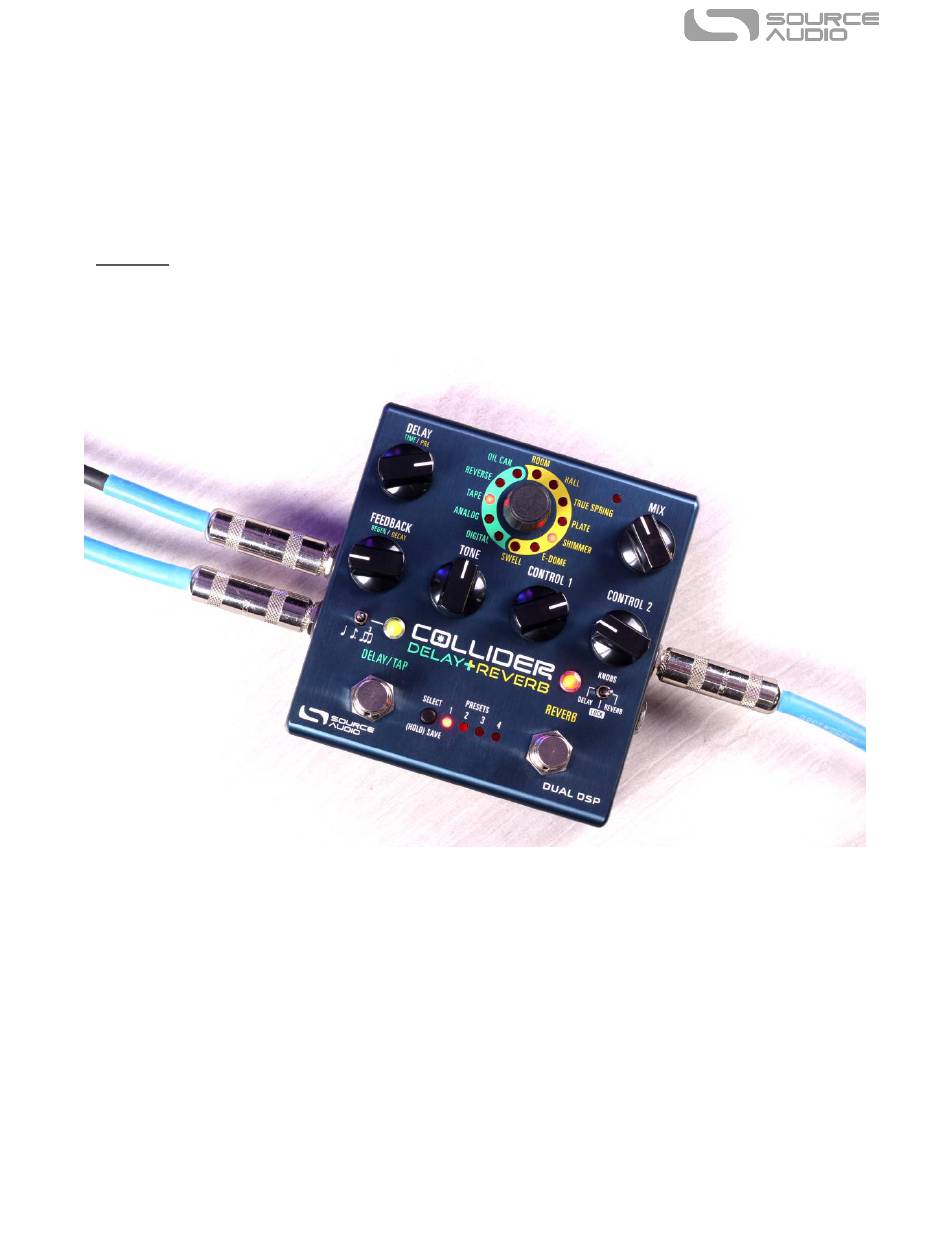

Using standard ¼" mono cables, connect your guitar, bass, or other instrument to the I
and your amp (or the next audio device in the signal chain) to the O
amp, connect it to O
When the power and audio connections have been made, Collider is ready for use.
SA263
rd -party power supplies and refer to the power supply
2.
UTPUT
Collider Delay+Reverb Owner's Manual
NPUT
1 jack. If you have a second
UTPUT
1 jack
