HYDROSTATIC DRIVE SYSTEM

Neutral Adjustment

Note: Do not make neutral adjustments on cold
hydrostatic drive systems. Safely warm the
drive system before making adjustments.
1. Safely raise and support unit so rear wheels are off
the ground.

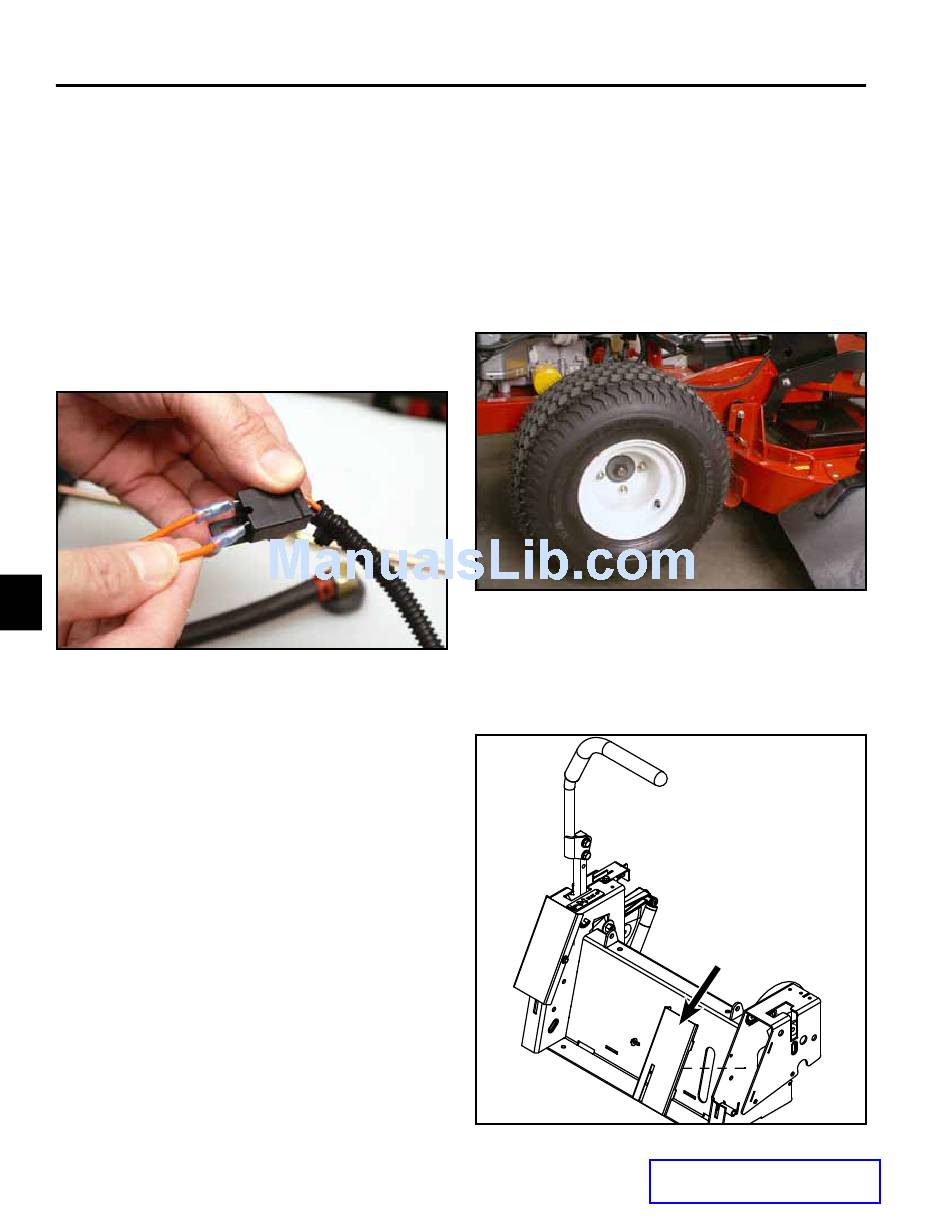

2. Unplug the seat switch and install a jumper wire
across the harness terminals (Fig. 060).
Note: Jumping the seat switch is for testing /
adjustment procedures only.
5
5-4
Fig. 060
PICT-6459a
3. Safely start the engine and run at full RPM.
4. Verify the motion control handles are in the outward
neutral position.
5. Release the parking brake and observe rear tire
movement. If the tire is creeping in either forward or
reverse, a neutral adjustment is required (Fig. 061).
Note: A slight amount of reverse creep is
acceptable.
Fig. 061
6. Turn the engine off.
7. Remove the appropriate control cover (A) (Fig. 062).
Fig. 062
PICT-6486a
A
PICT-3039
