Connecting the Battery

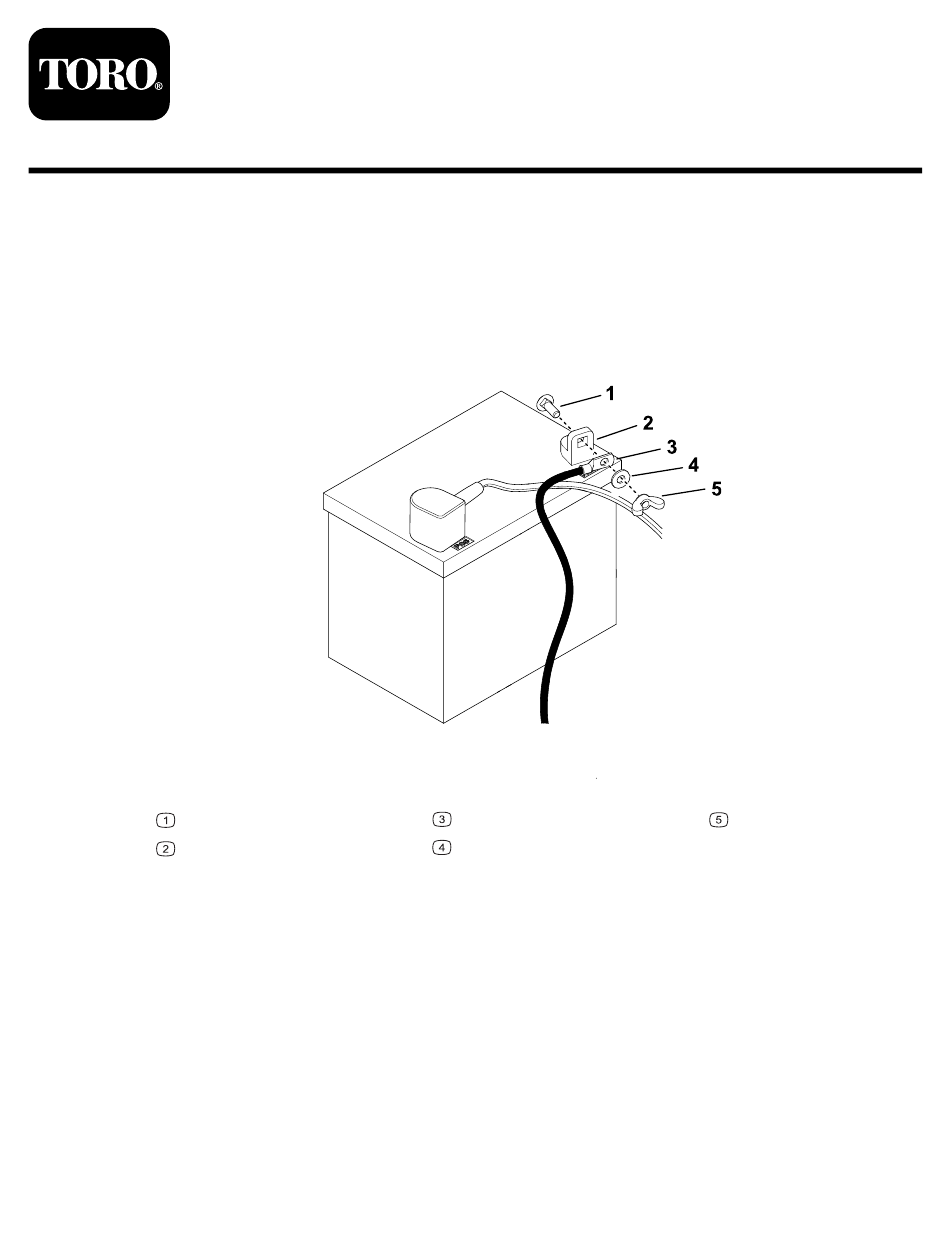

1. Locate the battery and negative battery cable.
2. Remove the plastic cap from the negative battery post.
3. Remove the fasteners on the negative battery cable and use them to secure the
negative battery cable to the negative battery post.
Carriage bolt
Negative battery post
4. Install the previously removed plastic cap.
© 2025—The Toro
®
Company
8111 Lyndale Ave So
Bloomington, MN 55044
TITAN
®
and TITAN
For All TITAN and TITAN MAX Riding Mowers
Register at
www.Toro.com
®
MAX Riding Mowers
G452546
Negative battery cable
Washer
Original Instructions (EN)
Printed in the USA
All rights reserved
3464-689D
Setup Instructions
Wing nut
*3464-689* D
