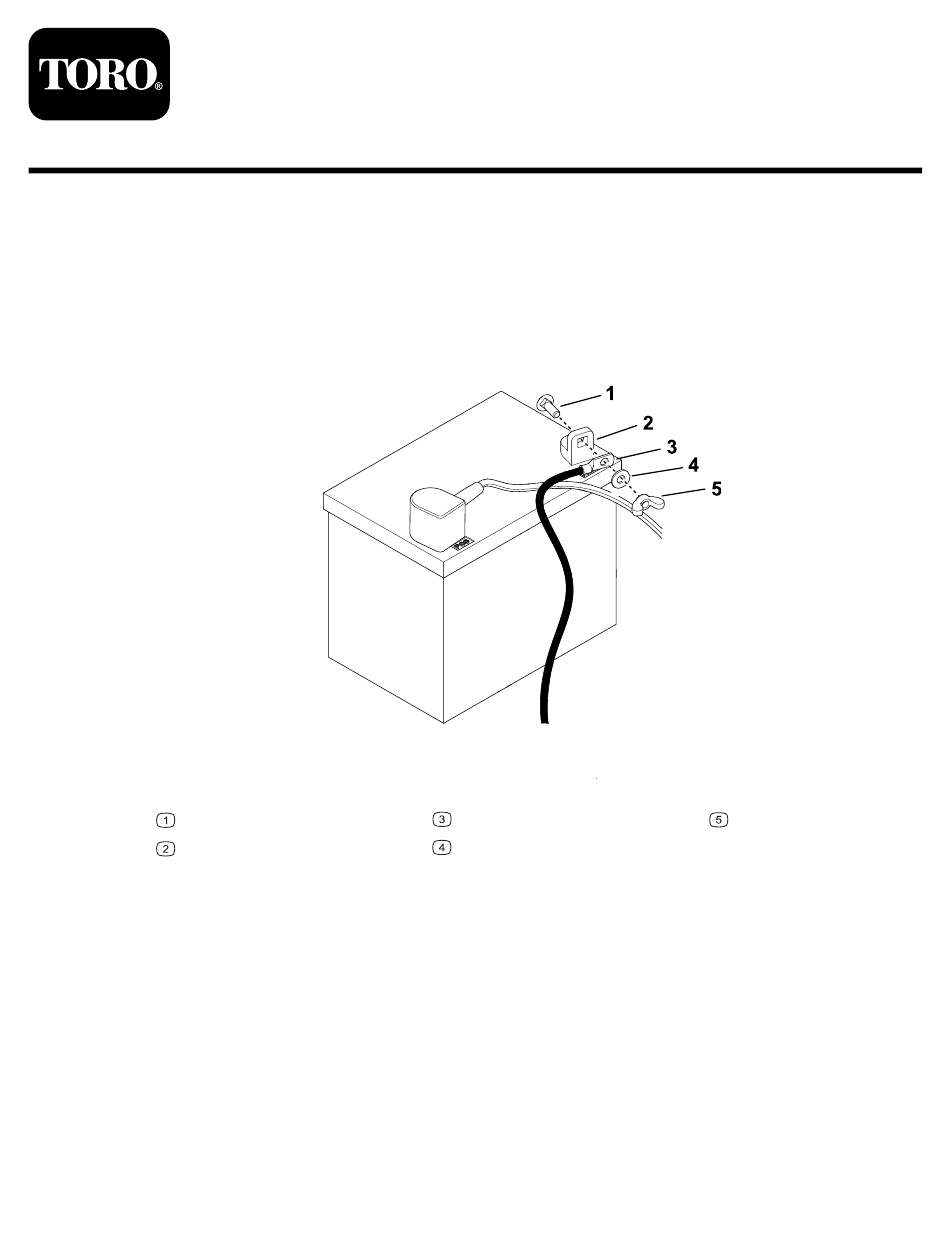

Connecting the Battery
1. Locate the battery and negative battery cable.
2. Remove the plastic cap from the negative battery post.
3. Remove the fasteners on the negative battery cable and use them to secure the
negative battery cable to the negative battery post.
Carriage bolt
Negative battery post
4. Install the previously removed plastic cap.
© 2024—The Toro
®
Company
8111 Lyndale Ave So
Bloomington, MN 55044

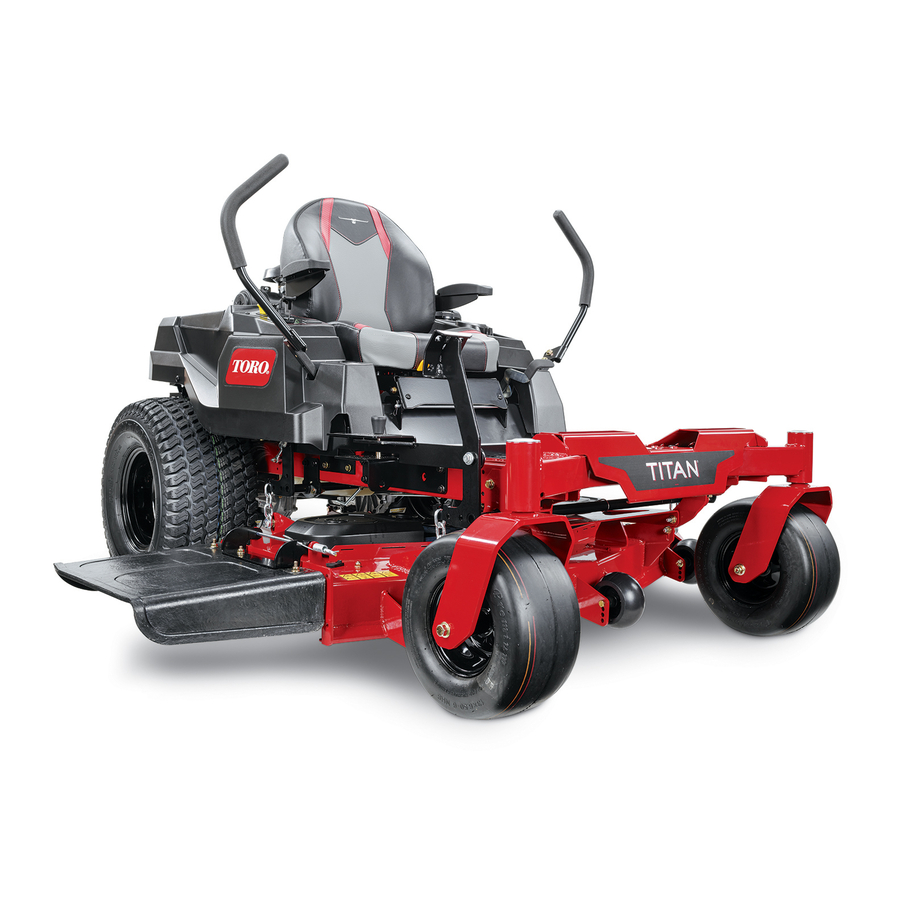

Titan® Riding Mowers
For All Titan Riding Mowers
Register at
www.Toro.com
G452546
Negative battery cable
Washer
Original Instructions (EN)
Printed in the USA
All rights reserved
3464-689C
Setup Instructions
Wing nut
*3464-689* C

Advertisement

loading

Related Manuals for Toro Titan

Summary of Contents for Toro Titan

  • Page 1 3464-689C Titan® Riding Mowers For All Titan Riding Mowers Setup Instructions Connecting the Battery 1. Locate the battery and negative battery cable. 2. Remove the plastic cap from the negative battery post. 3. Remove the fasteners on the negative battery cable and use them to secure the negative battery cable to the negative battery post.
  • Page 2 Attaching the Seat-Tilt Cable Non-MyRide™ Machines Only Parts Required Seat-tilt cable 1. Tilt the seat back partway. 2. Attach the seat-tilt cable from inside the seat pan as shown. G491332 Seat-tilt cable 3. Lower the seat. Page 2 3464-689 C...
  • Page 3 Installing the Rear Hitch Parts Required Rear hitch bracket Remove the fasteners from the rear frame and use them to install the rear hitch bracket as shown. Figure 1 Before assembly G454863 Locknuts Bolts Figure 2 After assembly G454865 3464-689C Page 3...

  • Page 4: Installing The Motion-Control Levers

    Installing the Motion-Control Levers Parts Required Lever assembly Knob 1. Install the motion-control levers. G462688 2. Adjust the levers to the desired position. 3. Tighten the knob. G439363 Installing the Arm Rest Kit CE and TA models only. Follow the arm rest kit installation instructions. Page 4 3464-689 C...

  • Page 5: Completing The Setup

    Completing the Setup Parts Required Operator’s Manual Operator training material Checking the Mower Adjustment Adjust the side-to-side level and the front-to-rear blade slope. Use the relevant procedures in the Operator’s Manual to verify that the deck is level, and make any adjustments as necessary.
  • Page 6 Notes:...
