SPECIFICATIONS

Hydro-Gear ZT-3100 Hydrostatic Transaxles

2
Lubrication
Oil Capacity ZT-3100
Oil Level Check
Fluid Change Interval

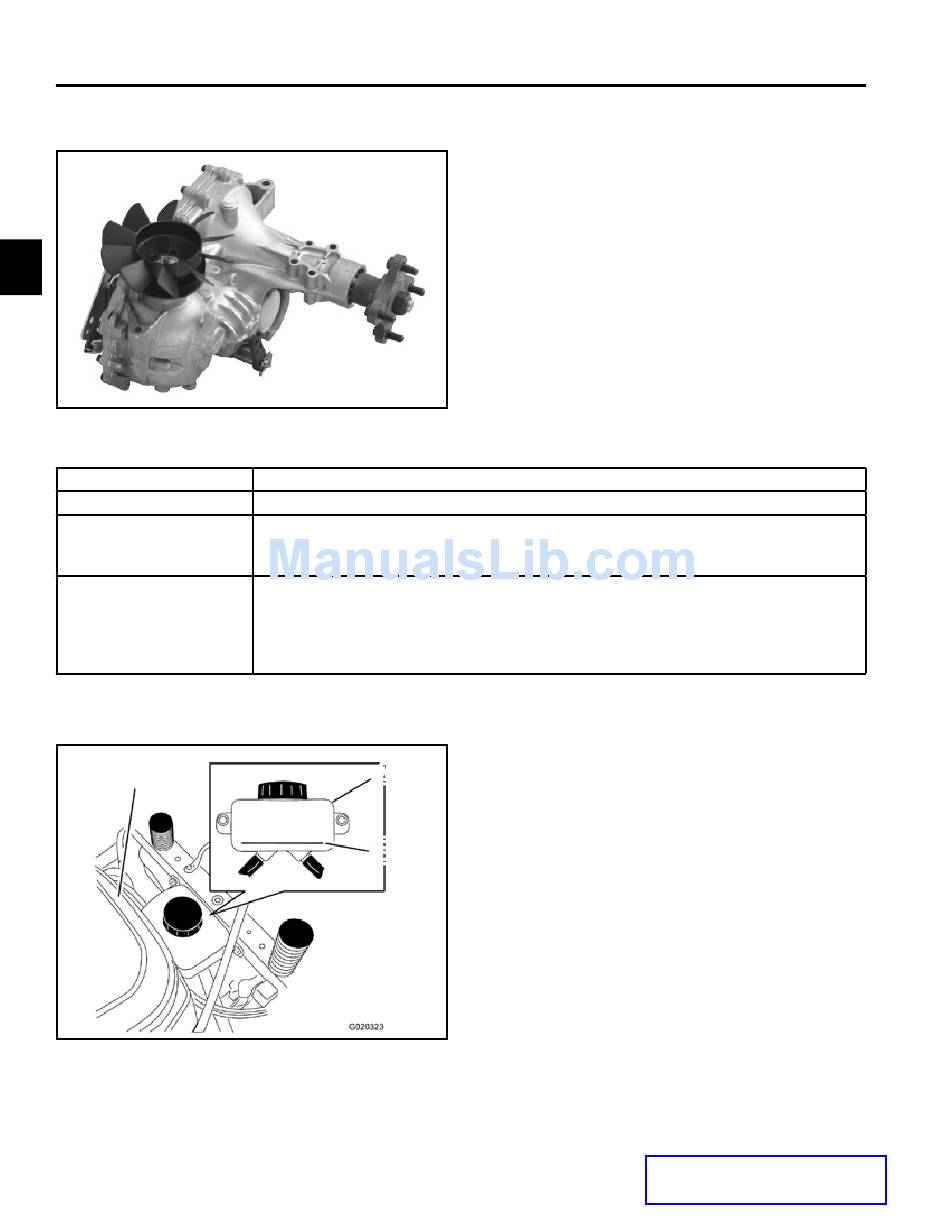

Checking the Hydraulic Oil Level

C
A. Expansion reservoir
B. Full cold line
2-10
Fig. 001 PICT-1002
Toro HYPR-OIL 500 or 20w50 Engine Oil
®
77.23 fl. oz. (2284ml) each (not including reservoir or hose volume)
Check expansion reservoir and if necessary add the specified oil to the FULL COLD
line. See illustration below. Also see the Hydro-Gear ZT-2800 / ZT-3100 service manual
(BLN-52441).
After the First 50 hours - change the oil and filters for the hydraulic system and bleed
the system.
Every 400 Hours - change the oil and filters for the hydraulic system and bleed the
system.
A
B
Fig. 002 fig. 51 G020323
C. Engine
Toro TITAN 2014 Service Manual
