Oracle X4-2B Installation Manual page 61

▼
Launch Oracle System Assistant (Locally)
Before you begin to launch Oracle System Assistant locally, you must be physically present with
the Sun Blade X4-2B and have access to the following:
Multi-port UCP cable
■
VGA monitor
■
USB Keyboard
■
USB Mouse
■
Choose a method to launch Oracle System Assistant locally on a server module, as described in
the following sections:
Ensure that the server module is in standby power mode.
1
Verify that the Power/OK LED blinks slowly. See:
Connect locally to the server module.
2
See: "Set Up Server Module Using Local KVM Connection" on page
Press the front-panel Power button to power on the server to full power mode.
3
The server module boots.
■

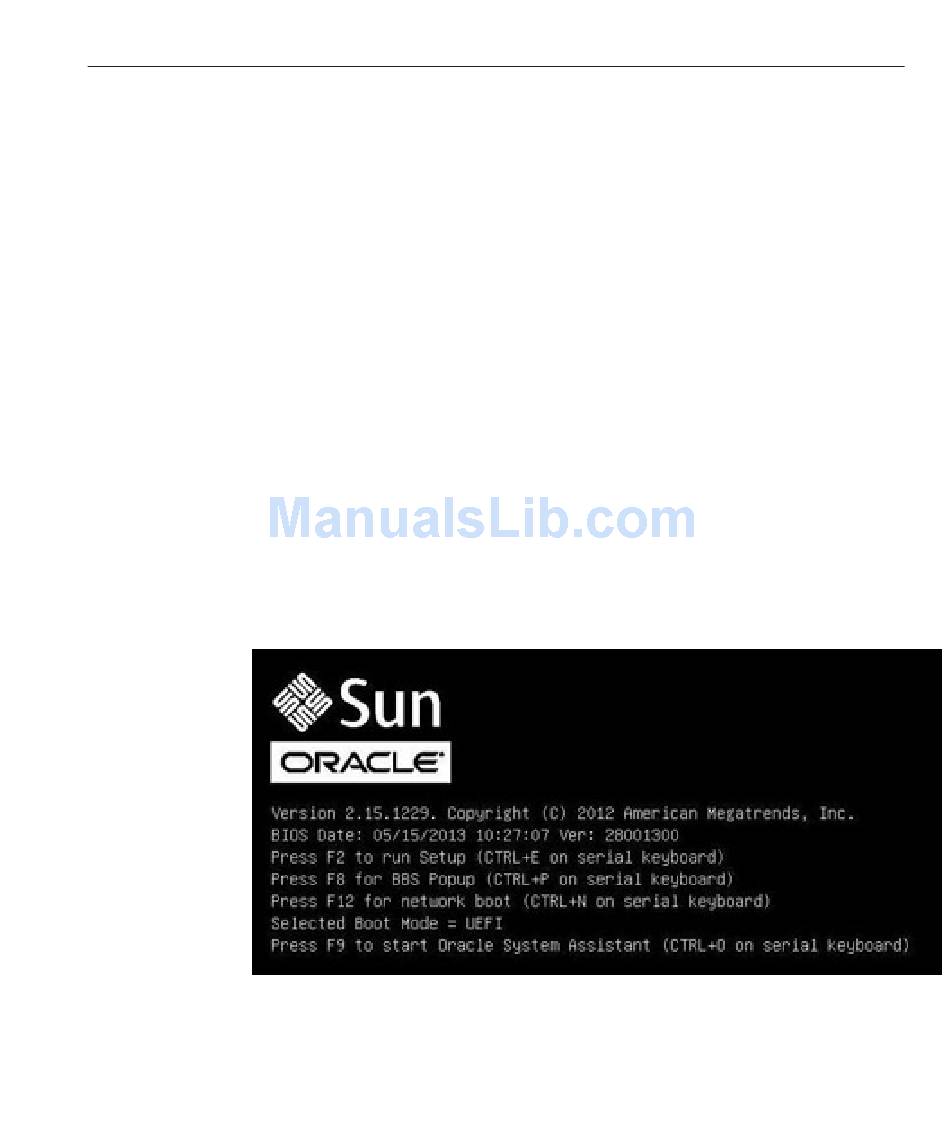

POST messages appear on the monitor.
■
After you see the POST message for Oracle System Assistant, press the F9 function key.
4
Oracle System Assistant boots.
■
Oracle System Assistant main screen appears.
■
Accessing Oracle System Assistant
"Front Panel Features" on page 10
42.
61
