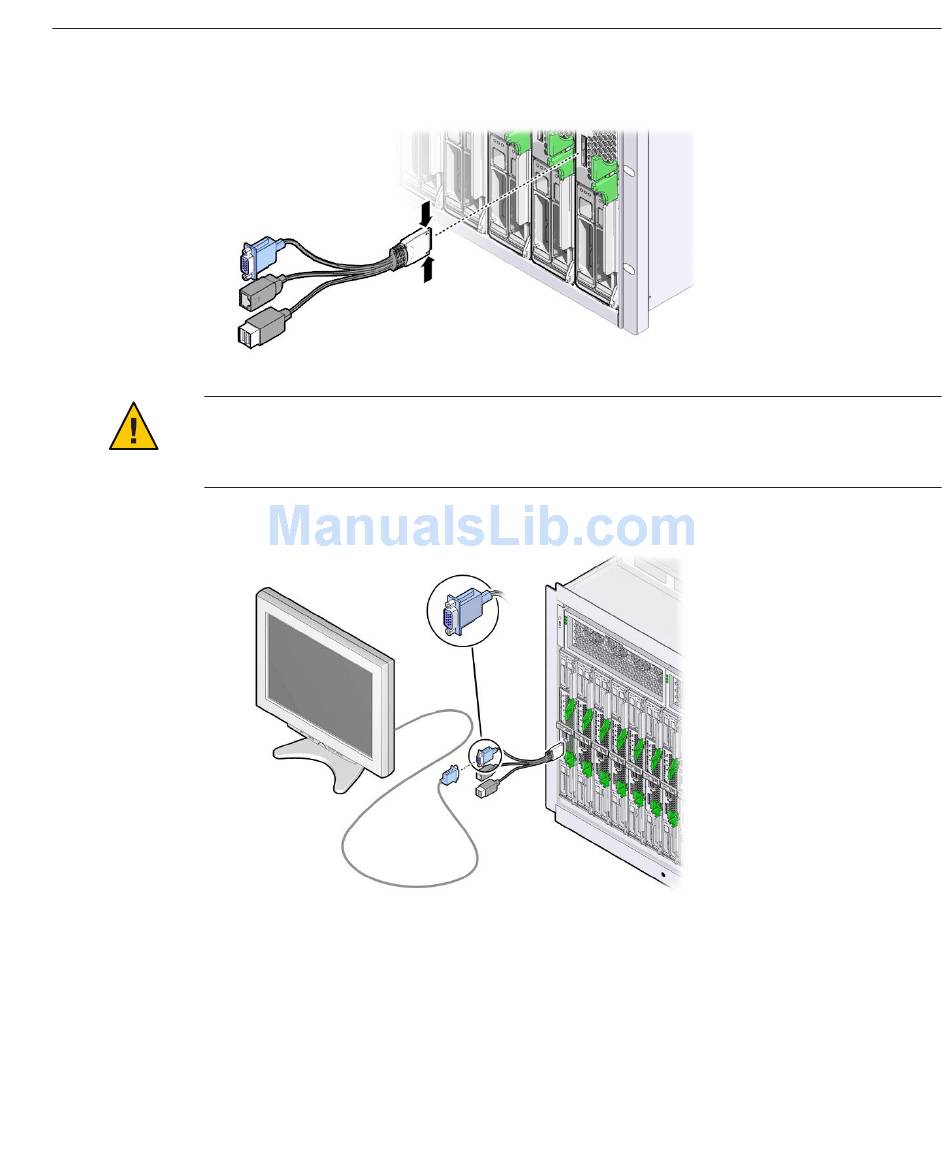

Attach the multi-port cable's universal connector port (UCP) to the UCP port on the server
1
module front panel.
Cable or connector damage possible. Use the multi-port cable for configuration and
Caution –
service purposes. Disconnect the multi-port cable from the server module after the
configuration or service operation is complete to avoid damaging the cable or connector.
Attach the VGA monitor cable to the DB–15 video connector on the multi-port cable.
2
Connection Option Summary
43
