Press CUT to separate the previously defined area from the complete image and to
display it in detail.
The next screen shows the selected area magnified and allows again defining an area for
the OCR process.
Press CLR to return to the former screen and to repeat the definition of the OCR area.
Press OCR to start the OCR process.
The result of the OCR process will be displayed in the touchscreen.
The OCR result shows only the plain text with line feeds, a layout analysis will not be
offered.
The text can be edited by the user with the keyboard displayed at the touchscreen.
Generate PDF:
The touchscreen will return to the Viewer&Job control screen (Picture 79).
Press the Send to button to save the image together with the text as PDF file.
For more details see chapter C.7 and its subchapters.
Page 82

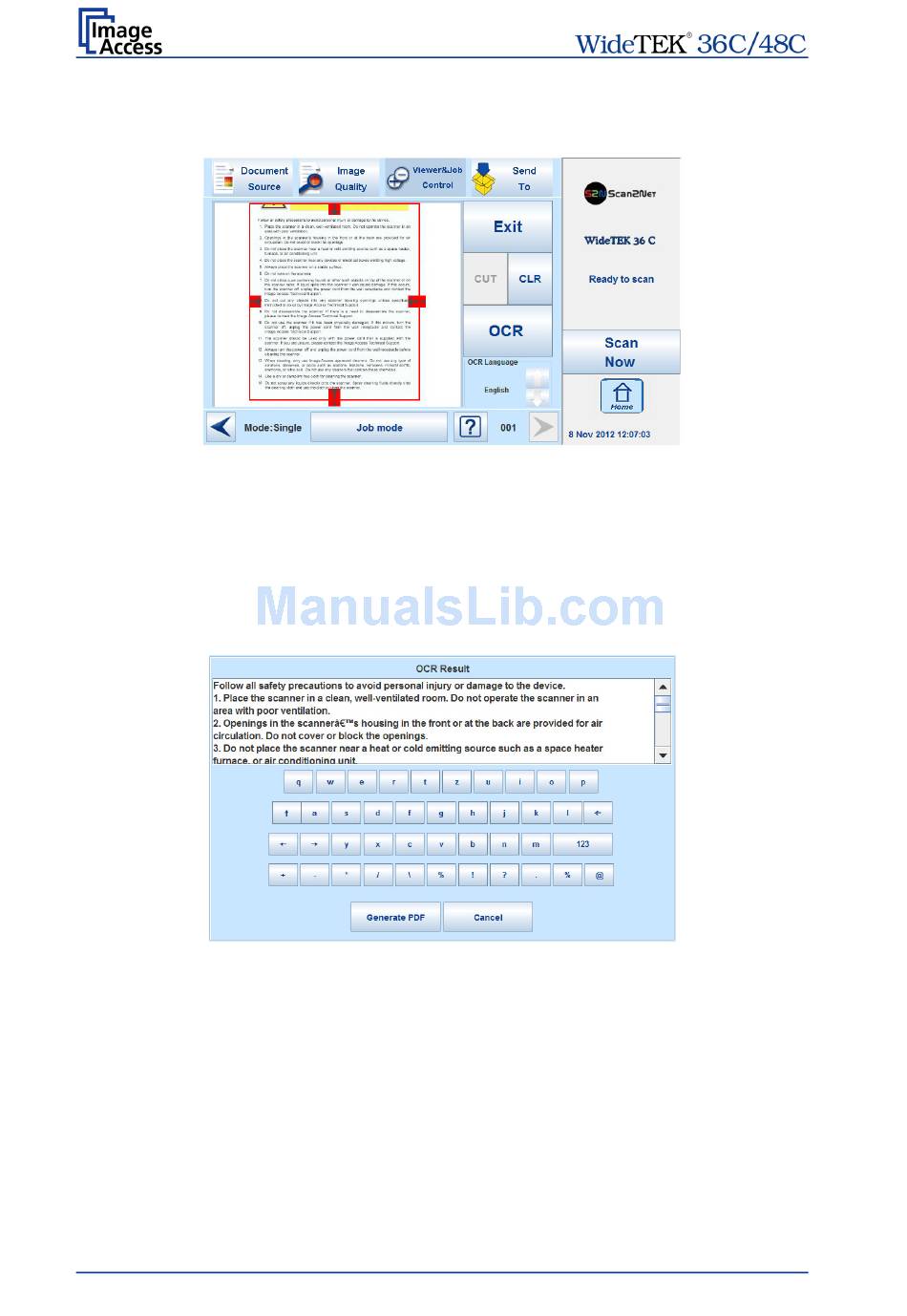

Picture 85: Selected area magnified

Picture 86: OCR result
Generates the PDF file of the text, detected by the OCR analysis.
