C.3 Scan2Net® Start Screen
In general: The description of the Scan2Net application refers to the Scan2Net Expert
version.
The Scan2Net Easy version has reduced parameters.
All screenshots are taken from a WideTEK
Note:
of the scanner name – identical for all scanners.
After touching the Scan2Net button the Viewer&Job Control screen is displayed on the
touchscreen.
The touchscreen is structured in four sections, which allow operators to control and select
various functions of the scanner.
1: This section shows the main controls or parameters depending on the selected
control field in section 2.
2: Control fields to select the menu screens directly.
3: This section shows the status of the scanner, e.g. "Ready to scan, allows starting
the scan sequence by touching Scan Now, allows returning to the start screen, and
displays date and time.
4: The content of this section changes dependent on the selected control field in
section 2. More specific information can be found in the respective chapters.
Manual

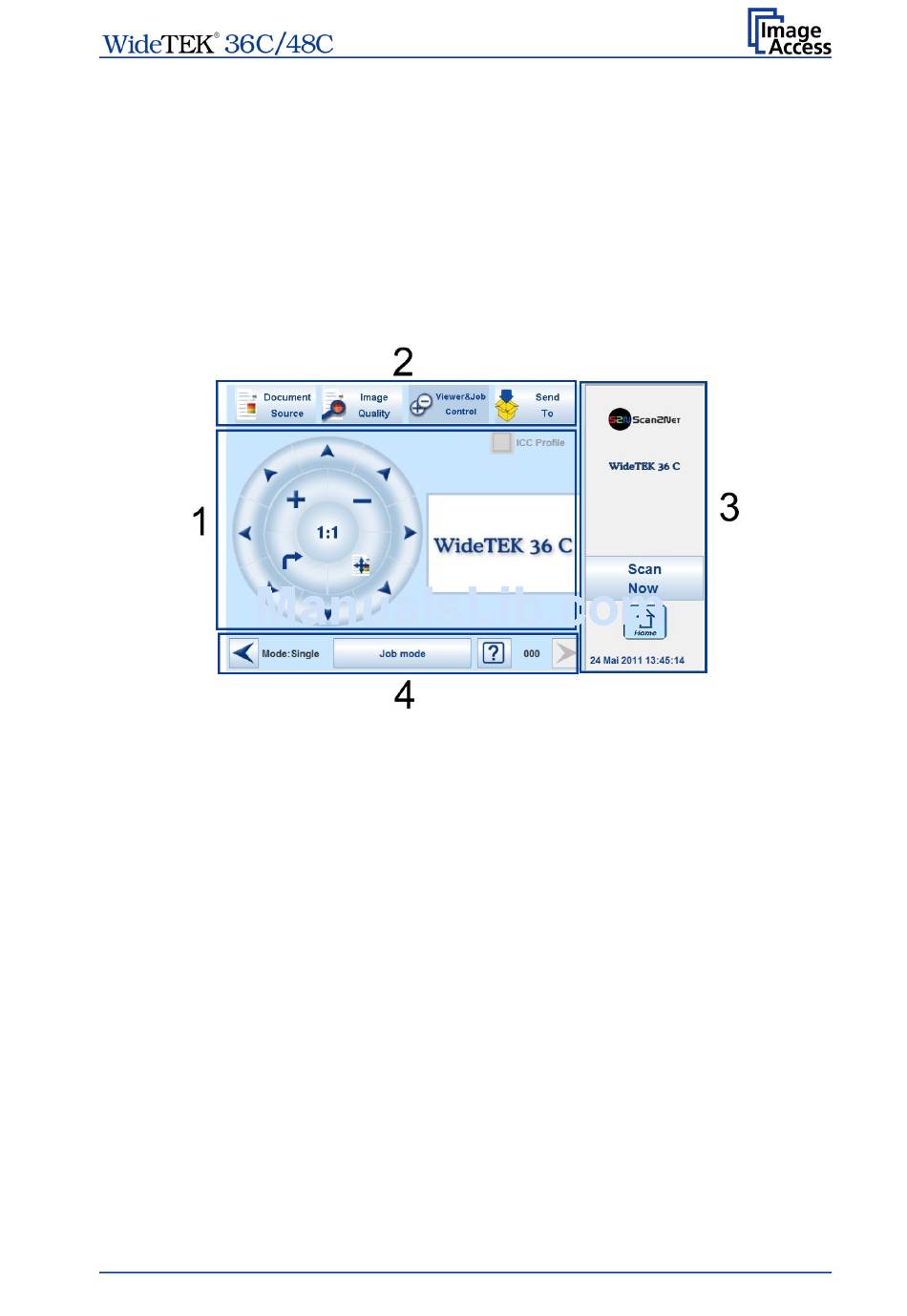

Picture 53: Viewer & Job Control screen
36
®
scanner. The content is – except
