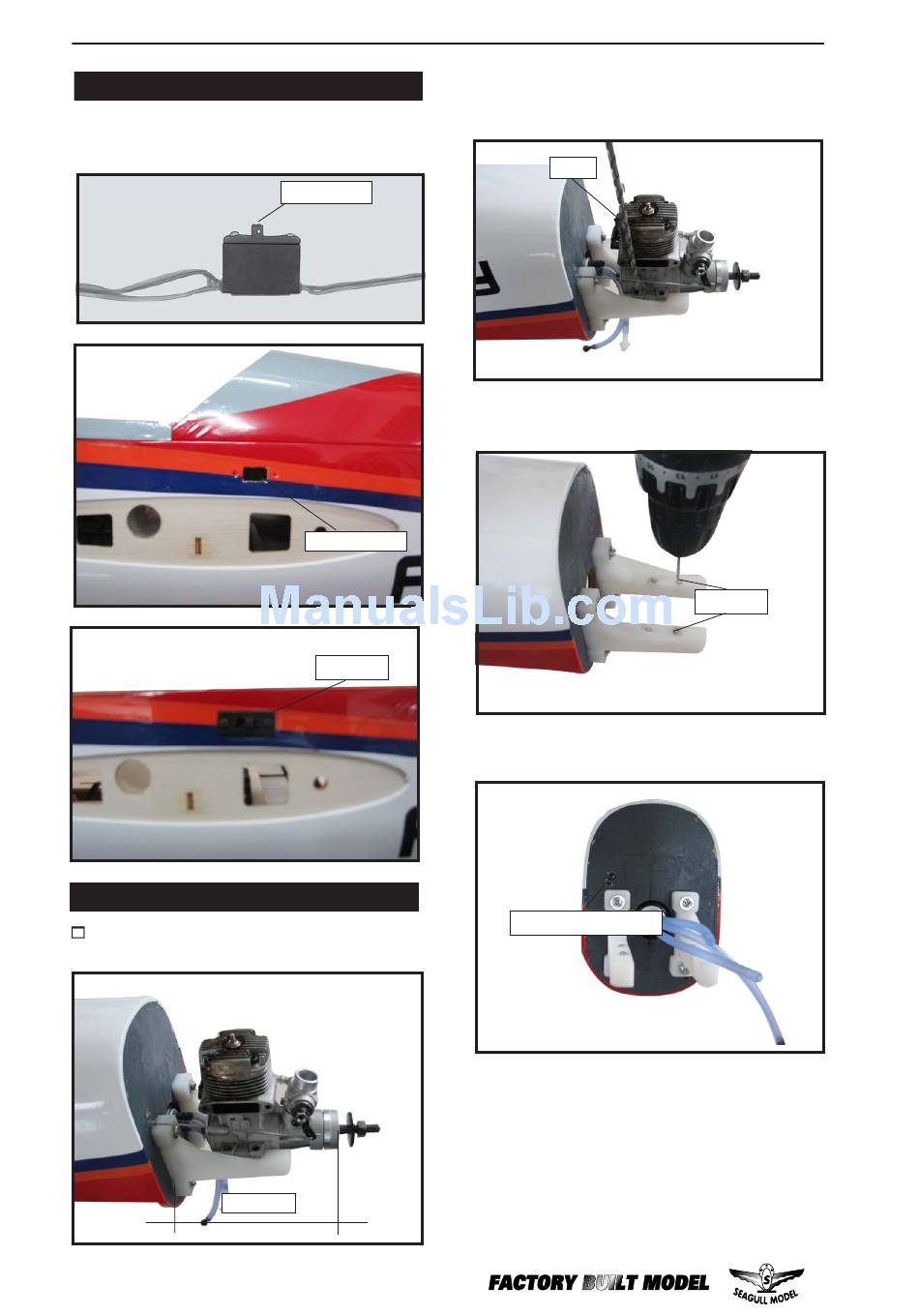

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side, in the fuselage.

MOUNTING THE ENGINE.

1) Position the engine with the drive washer
(110mm) forward of the firewall as shown.
110mm.
8
3/ 32" Hole.
Trim and cut.
Switch.
Instruction Manual.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
2mm.
3) Use a drill to drill the four holes in the engine
mount rails.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
Pushrod tube hole.
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
4.5mm.
