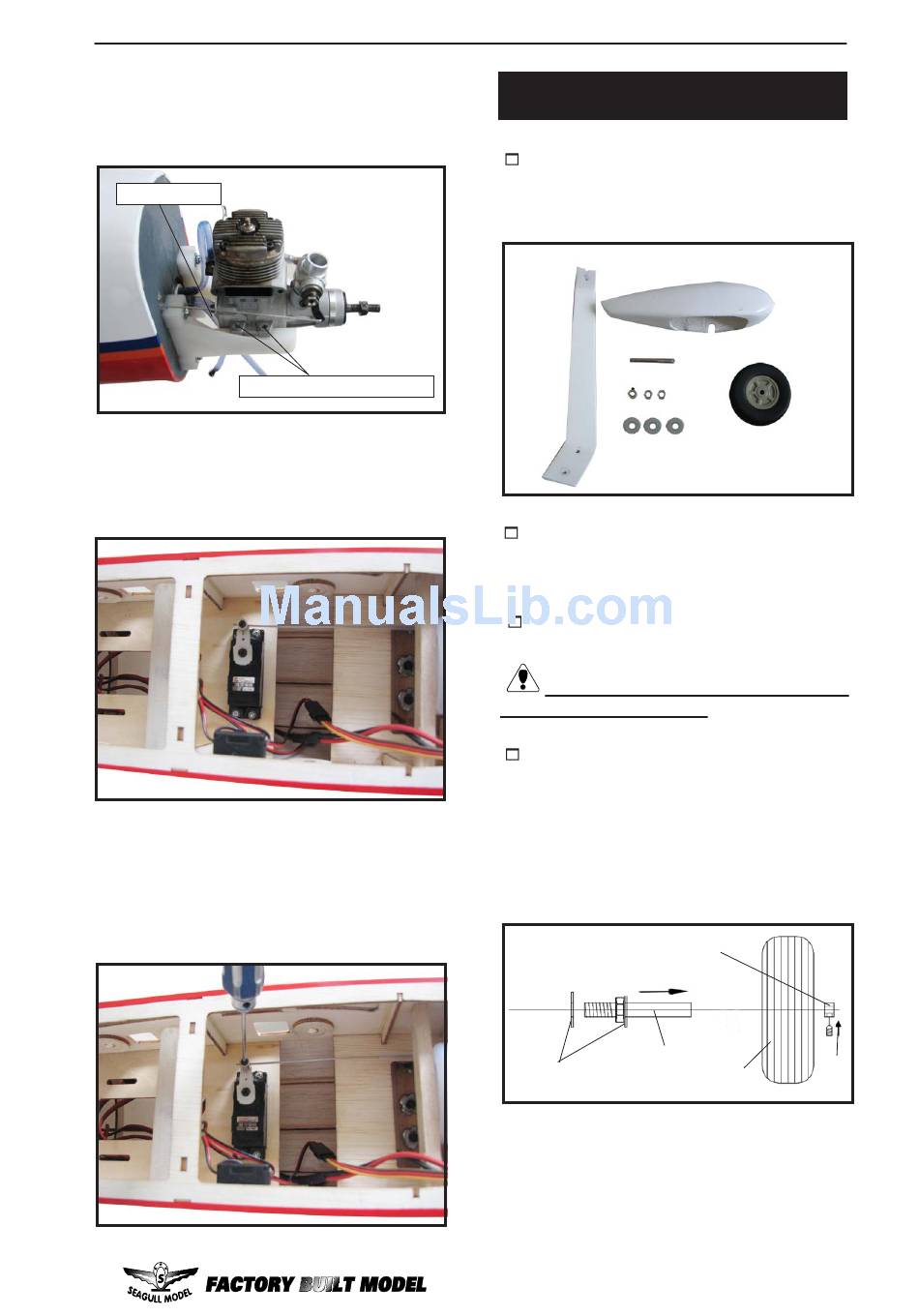

Seagull Models SEA EAGLE Instruction Manual page 9

7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M3x25mm machine screws to secure the
engine to the mount as shown.
Pushrod wire.
Machine screw M3x25mm.
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center the
throttle stick and trim and install the servo horn
perpendicular to the servo center line.
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.
www.seagullmodels.com
WHEEL AND WHEEL PANTS
INSTALLATION.
1) Locate the items neccessary to install
the wheel and wheel pants to the landing gear
as shown.
2) Follow diagram below for wheel pant
installation:Use a drill and 8mm drill bit to drill
a hole in the wheel pants.
3) You have to trim each axle using a tool
cutting and cut-off wheel.
Caution when cutting the axles and
wear protective goggles.
4) Slide the collar to the axle and setscrew
the collars to secure the collar to the axle and
then slider the wheel on the axle with a drop of
oil on the axle so the wheel will spin freely when
installed. Prepare a second collar and tighten
the setscrew using hex wrench to secure the
collar to the axle.
wheel collar.
Axle.
Washer.
M3.
wheel.
9
