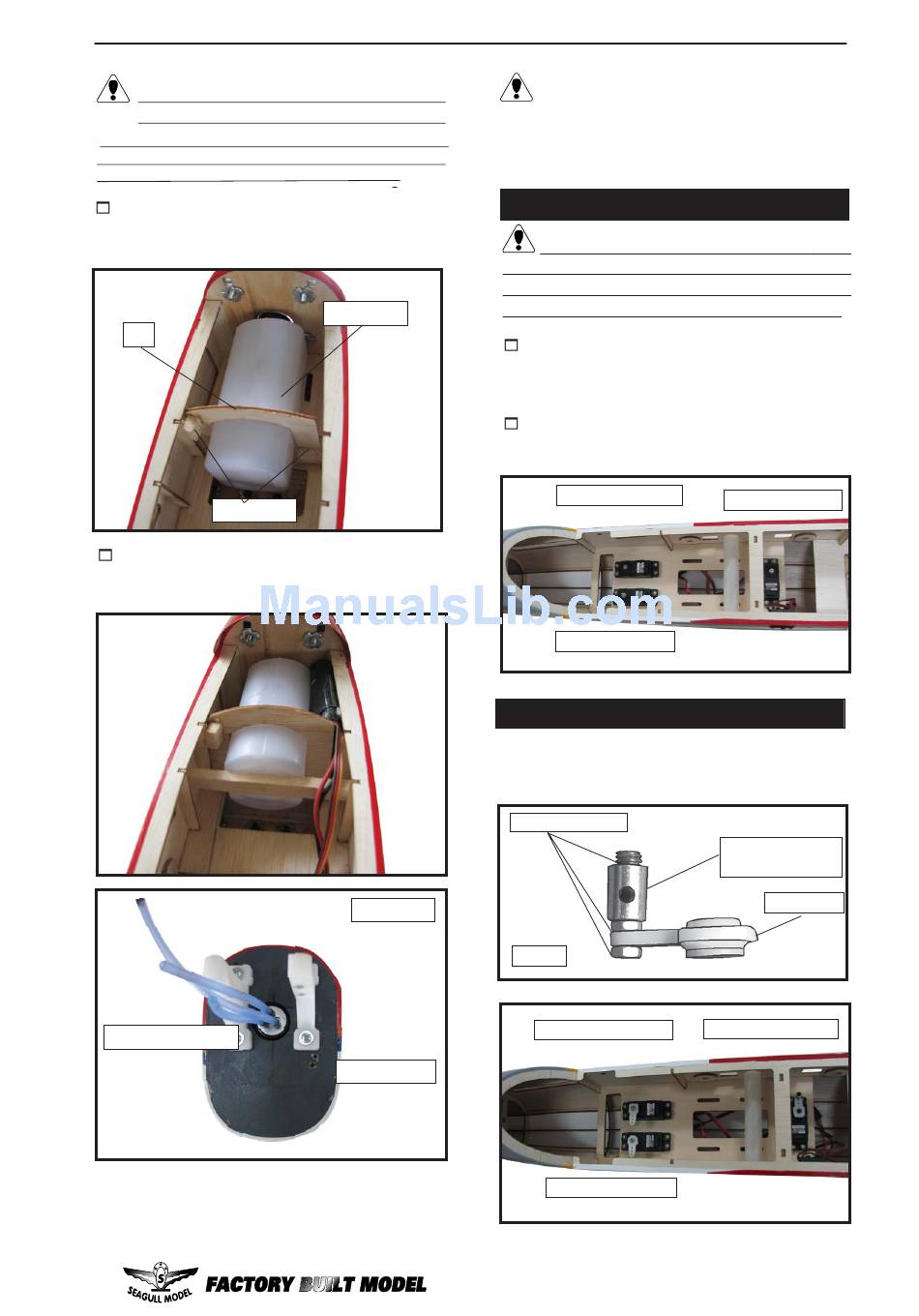

You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
A
C/A glue.
8) Use plywood template to hold in place
the fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
Fuel pick up tube.
9) Connect the lines from the tank to the engine
and muffler. The vent line will connect to the
muffler and the line from the clunk to the
carburetor.
www.seagullmodels.com
Fuel tank.
THROTTLE SERVO ARM INSTALLATION.
arm as same as picture below:
Vent tube.
Fuel fill tube.
Blow through one of the lines to en-
sure the fuel lines have not become kinked
inside the fuel tank compartment. Air
should flow through easily.

INSTALLING THE FUSELAGE SERVOS.

Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Elevator servo.
Rudder servo.
Install adjustable servo connector in the servo
Loctite secure.
1 PCS.
Elevator servo arm.
Rudder servo arm.
Throttle servo.
Adjustable Servo
connector.
Servo arm.
Throttle servo arm.
7
