P47 SNAFU

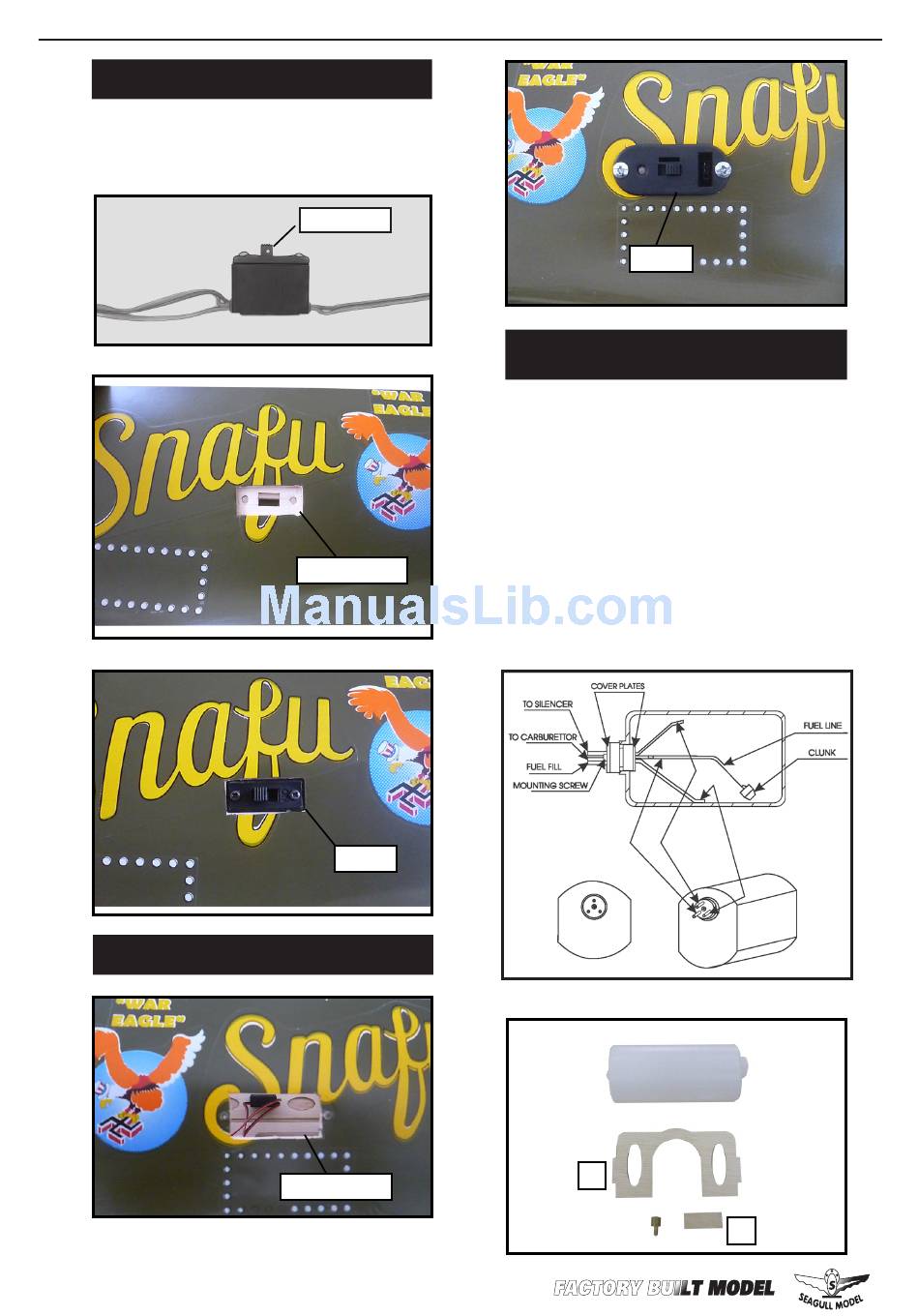

INSTALLING THE SWITCH RECEIVER.
Install the switch into the precut hole in
the side, in the fuselage.
INSTALLING THE SWITCH ENGINE.
8
3/32" Hole.
Trim and cut.
.
Switch.
Trim and cut.
Instruction Manual.
Switch.
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon
tubes leaving 1/2" protruding from the
rear of the stopper. This will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
A
B
