KIT CONTENTS.
SEA207 P47 SNAFU
SEA20701 Fuselage
SEA20702 Wing set
SEA20703 Tail set
SEA20704 Canopy
SEA20705 Pilot
SEA20706 Cowling
SEA20707 Landing gear

ADDITIONAL ITEMS REQUIRED.

61- 91
91-100
15cc gasoline engine.
Computer radio with 9 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
WWW.SEAGULLMODELS.COM
2-stroke.
4-stroke.

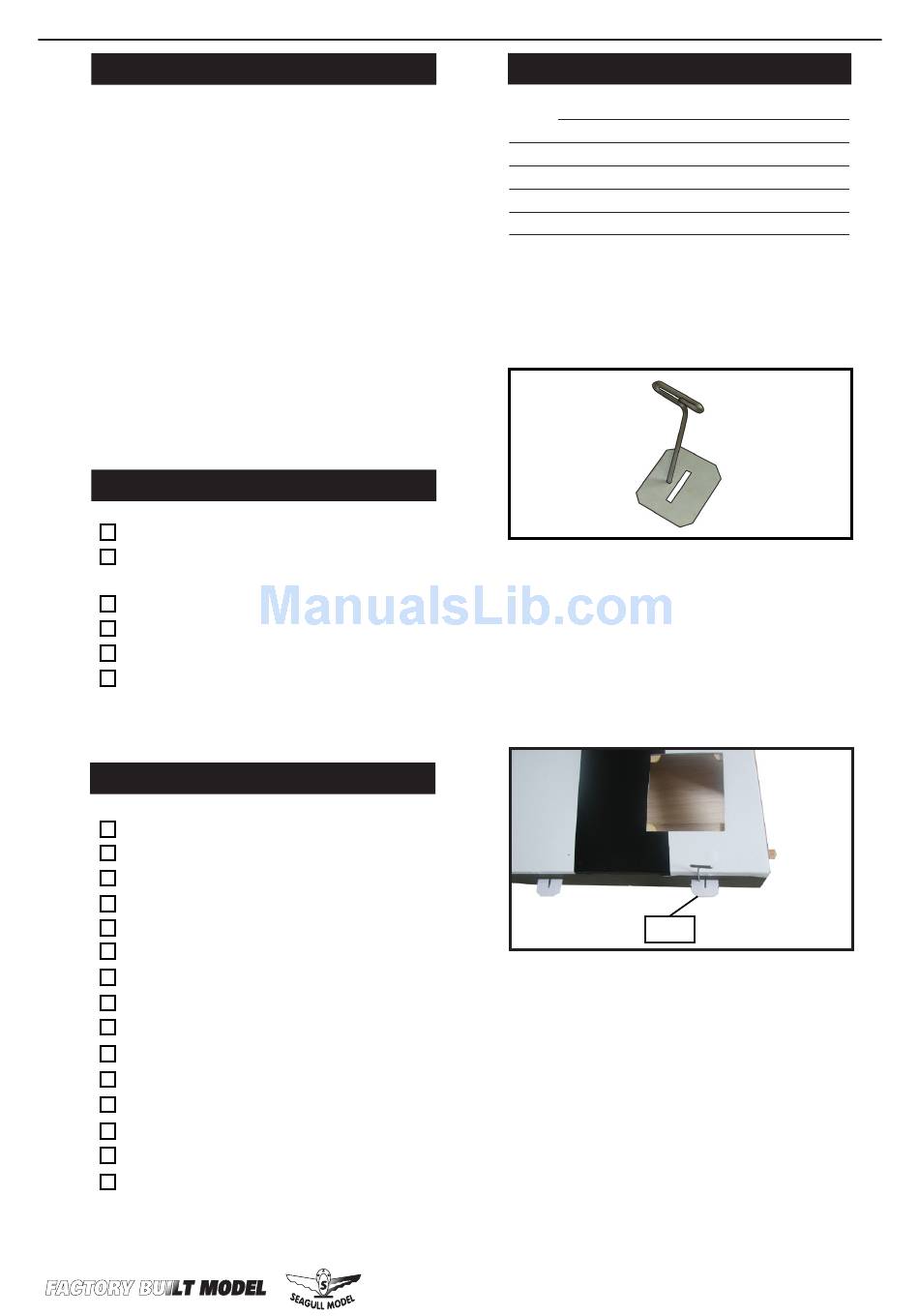

HINGING THE FLAP.
Note : The control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you prop-
erly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.
Hinge.
.
3) Slide the wing panel on the aileron until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron. Re-
move the T-pins and snug the aileron against
the wing panel. A gap of 1/64" or less should
be maintained between the wing panel and
aileron.
