2) Recommen the items necessary to in-
stall the electric power conversion parts
included with your model.
- Model size: .75-.90 size models
- Motor: 50mm 310 rev per volt
- Propeller: 15x10 ~ 16x10
- ESC: 80A
- Lipo Batteries: 8 cell 5200mA

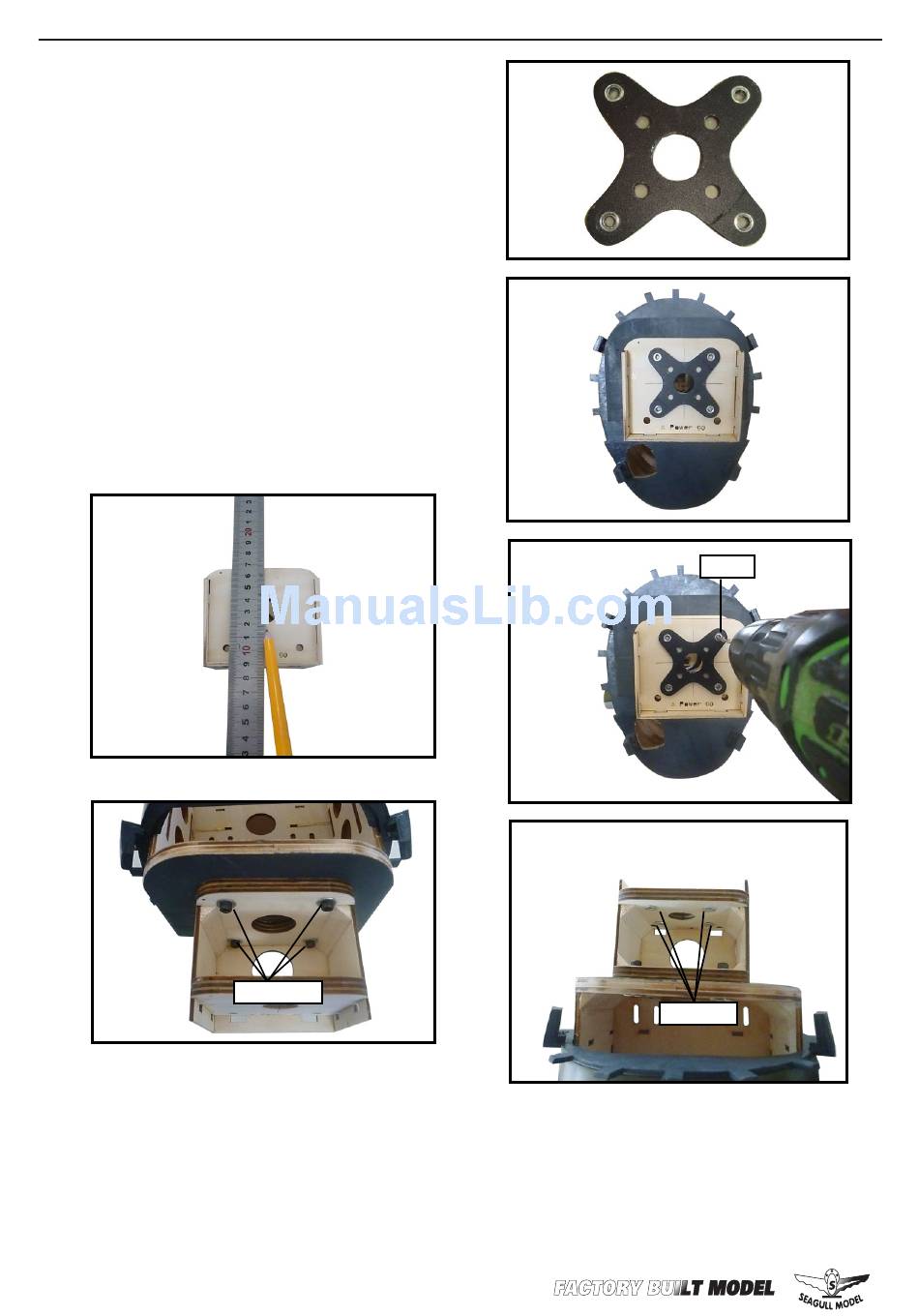

3) Attach the electric motor box to the
firewall suitable with the cross lines
drawn on the electric motor box and fire-
wall. Using M4x20mm to secure the mo-
tor box to the firewall. Please see pictures
below.
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M3x15mm hex head bolts to se-
cure the motor. Please see picture shown.
18
M4x20mm
Instruction Manual.
Blind nut.
5) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M3x15mm hex head bolts to se-
cure the motor. Please see picture shown.
4 mm
.
.
