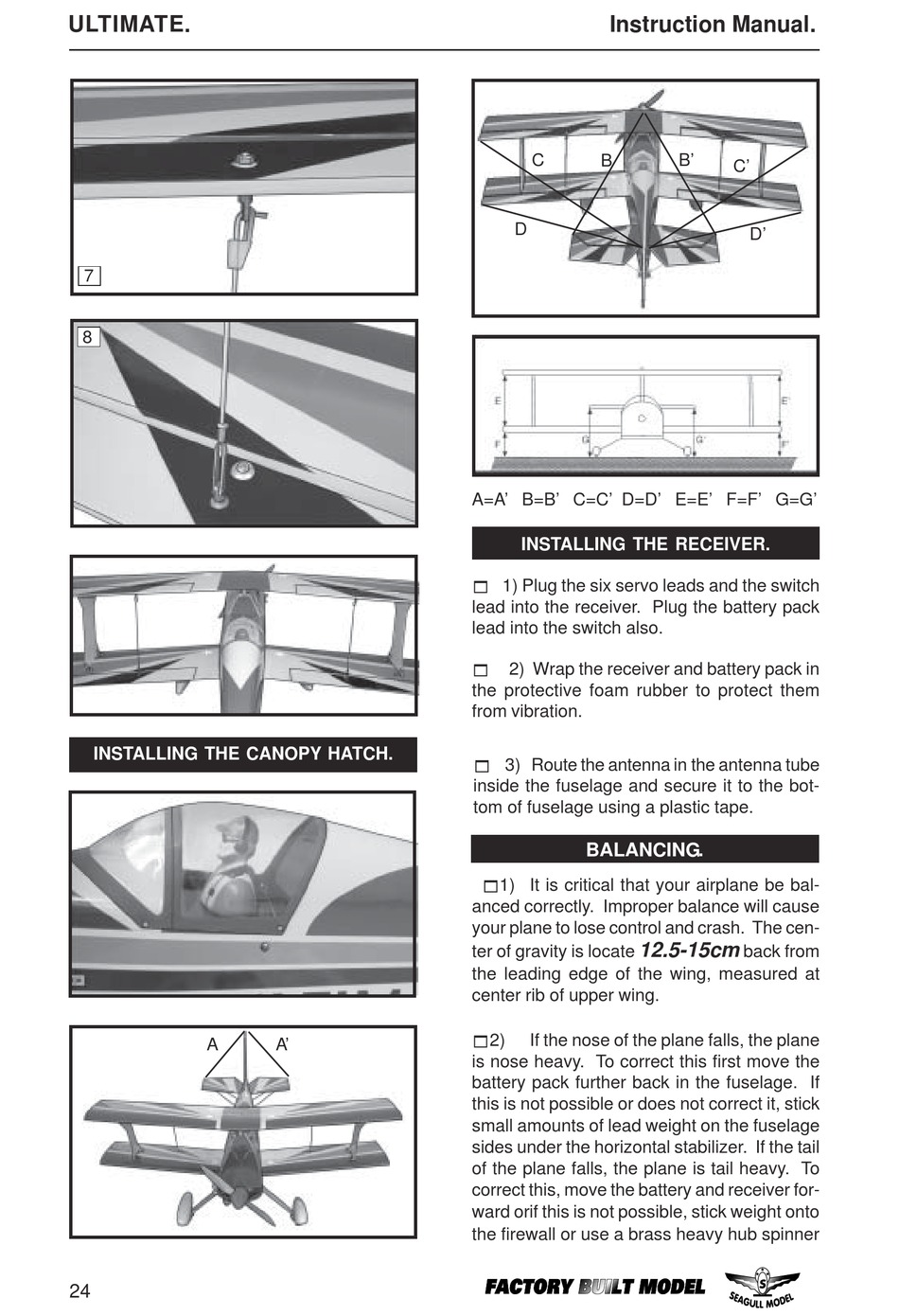

Installing The Receiver - Seagull Models ULTIMATE Instruction Manual

ULTIMATE.
7
8
INSTALLING THE CANOPY HATCH.
A
24
A'
Instruction Manual.
C B
D
A=A' B=B' C=C' D=D' E=E' F=F' G=G'

INSTALLING THE RECEIVER.

! 1) Plug the six servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
!
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
! 3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape.
BALANCING.
!1) It is critical that your airplane be bal-
anced correctly. Improper balance will cause
your plane to lose control and crash. The cen-
12.5-15cm
ter of gravity is locate
the leading edge of the wing, measured at
center rib of upper wing.
!2)
If the nose of the plane falls, the plane
is nose heavy. To correct this first move the
battery pack further back in the fuselage. If
this is not possible or does not correct it, stick
small amounts of lead weight on the fuselage
sides under the horizontal stabilizer. If the tail
of the plane falls, the plane is tail heavy. To
correct this, move the battery and receiver for-
ward orif this is not possible, stick weight onto
the firewall or use a brass heavy hub spinner
B'
C'
D'
back from
