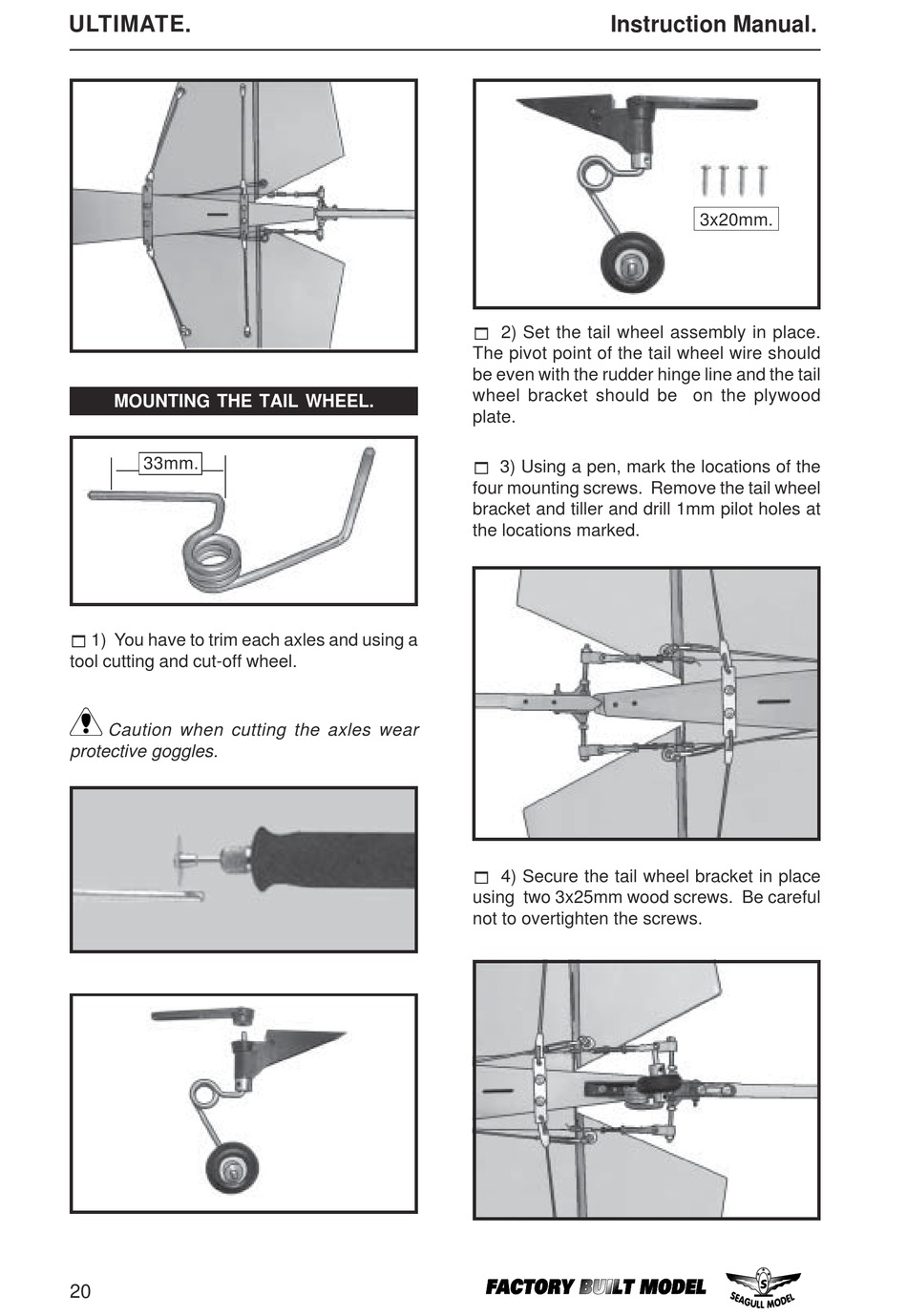

Mounting The Tail Wheel - Seagull Models ULTIMATE Instruction Manual

ULTIMATE.

MOUNTING THE TAIL WHEEL.

33mm.
! 1) You have to trim each axles and using a
tool cutting and cut-off wheel.
Caution when cutting the axles wear
protective goggles.
20
Instruction Manual.
! 2) Set the tail wheel assembly in place.
The pivot point of the tail wheel wire should
be even with the rudder hinge line and the tail
wheel bracket should be on the plywood
plate.
! 3) Using a pen, mark the locations of the
four mounting screws. Remove the tail wheel
bracket and tiller and drill 1mm pilot holes at
the locations marked.
! 4) Secure the tail wheel bracket in place
using two 3x25mm wood screws. Be careful
not to overtighten the screws.
3x20mm.
