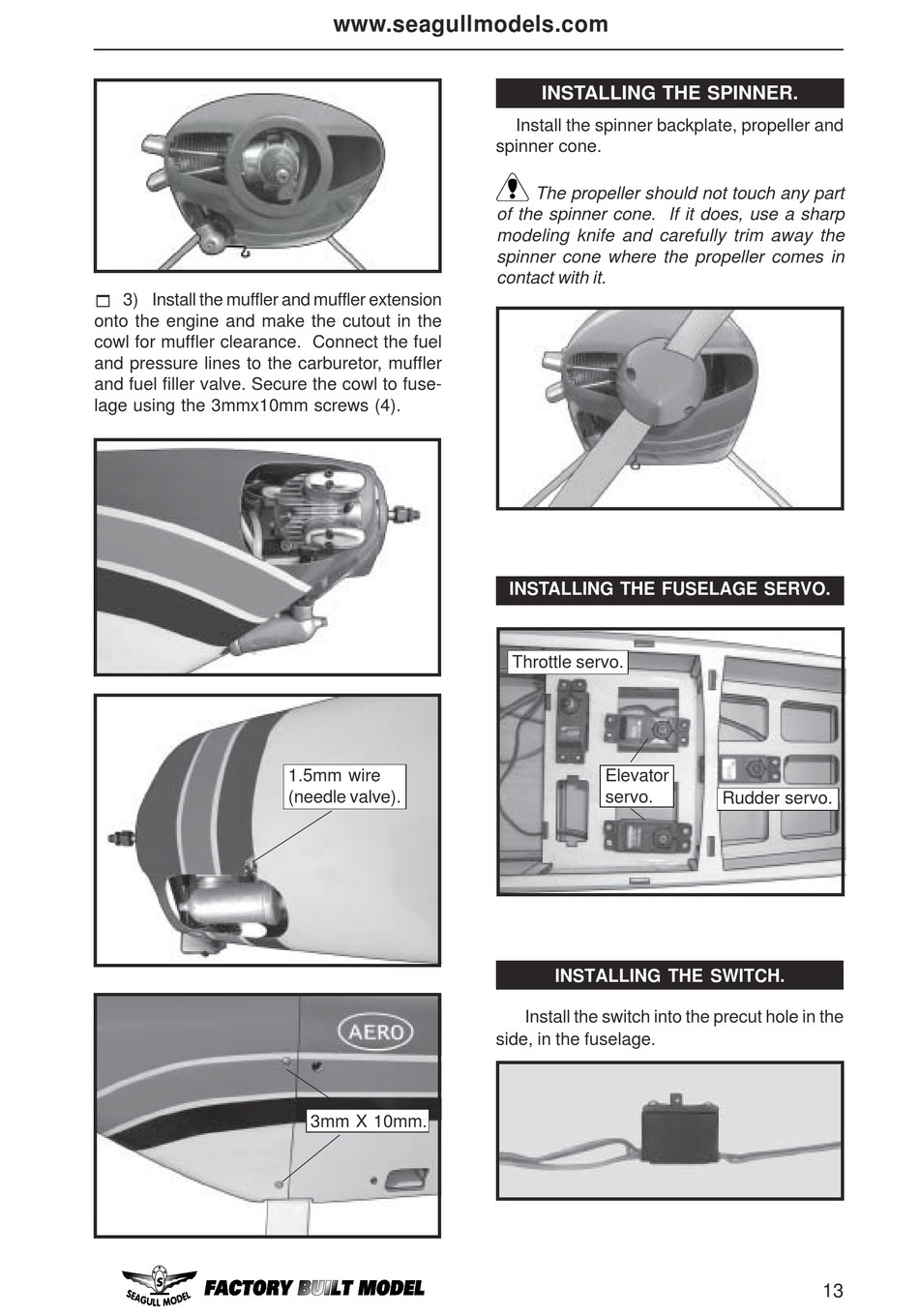

! 3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the 3mmx10mm screws (4).
www.seagullmodels.com
1.5mm wire
(needle valve).
3mm X 10mm.

INSTALLING THE SPINNER.

Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any part
of the spinner cone. If it does, use a sharp
modeling knife and carefully trim away the
spinner cone where the propeller comes in
contact with it.
INSTALLING THE FUSELAGE SERVO.
Throttle servo.
Elevator
servo.

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side, in the fuselage.
Rudder servo.
13
