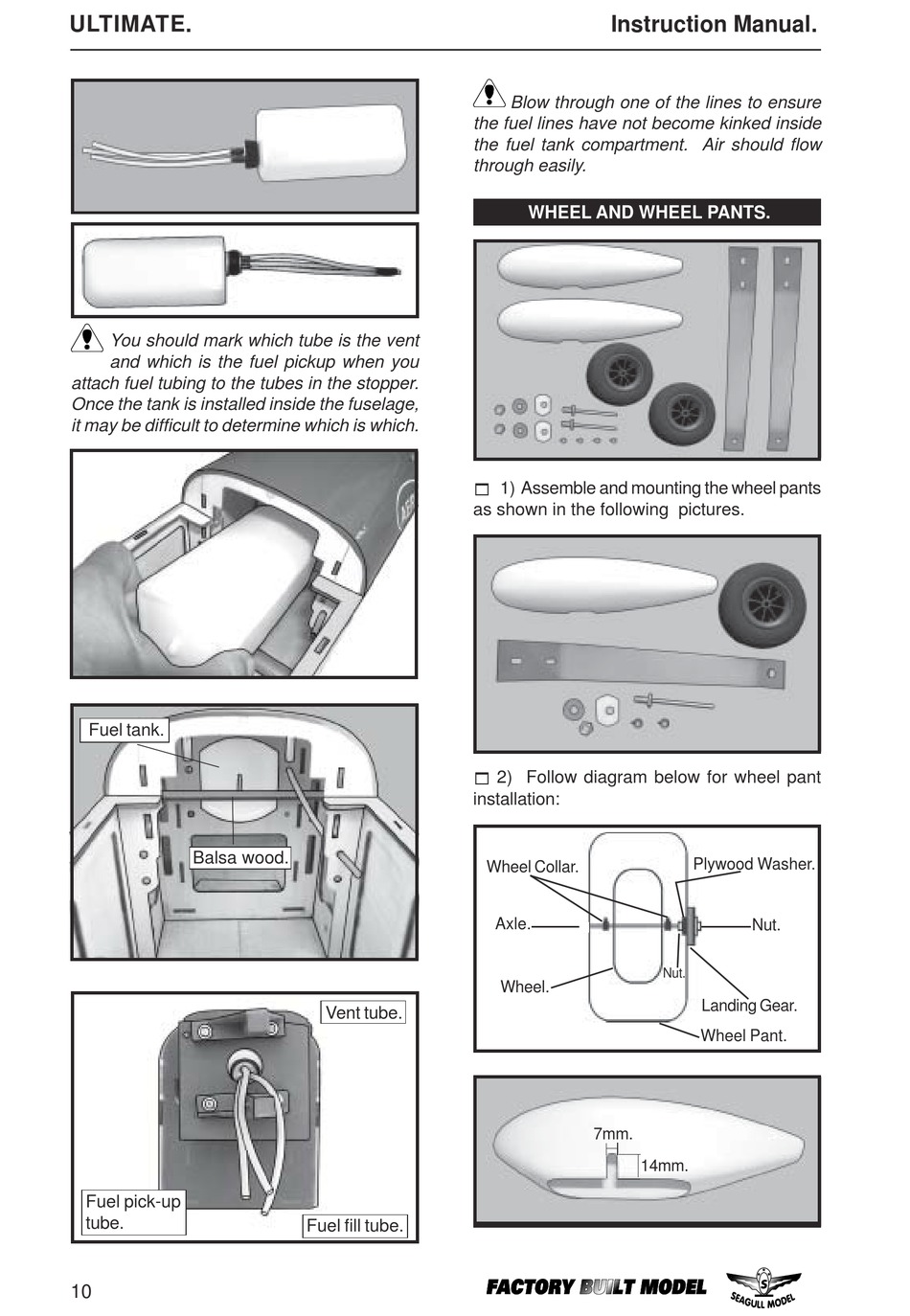

Seagull Models ULTIMATE Instruction Manual page 10

ULTIMATE.
You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
Fuel tank.
Balsa wood.
Fuel pick-up
tube.
10
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.
! 1) Assemble and mounting the wheel pants
as shown in the following pictures.
! 2) Follow diagram below for wheel pant
installation:
Vent tube.
Fuel fill tube.
Instruction Manual.
Blow through one of the lines to ensure
WHEEL AND WHEEL PANTS.
Wheel Collar.
Axle.
Wheel.
7mm.
14mm.
Plywood Washer.
Nut.
Nut.
Landing Gear.
Wheel Pant.
