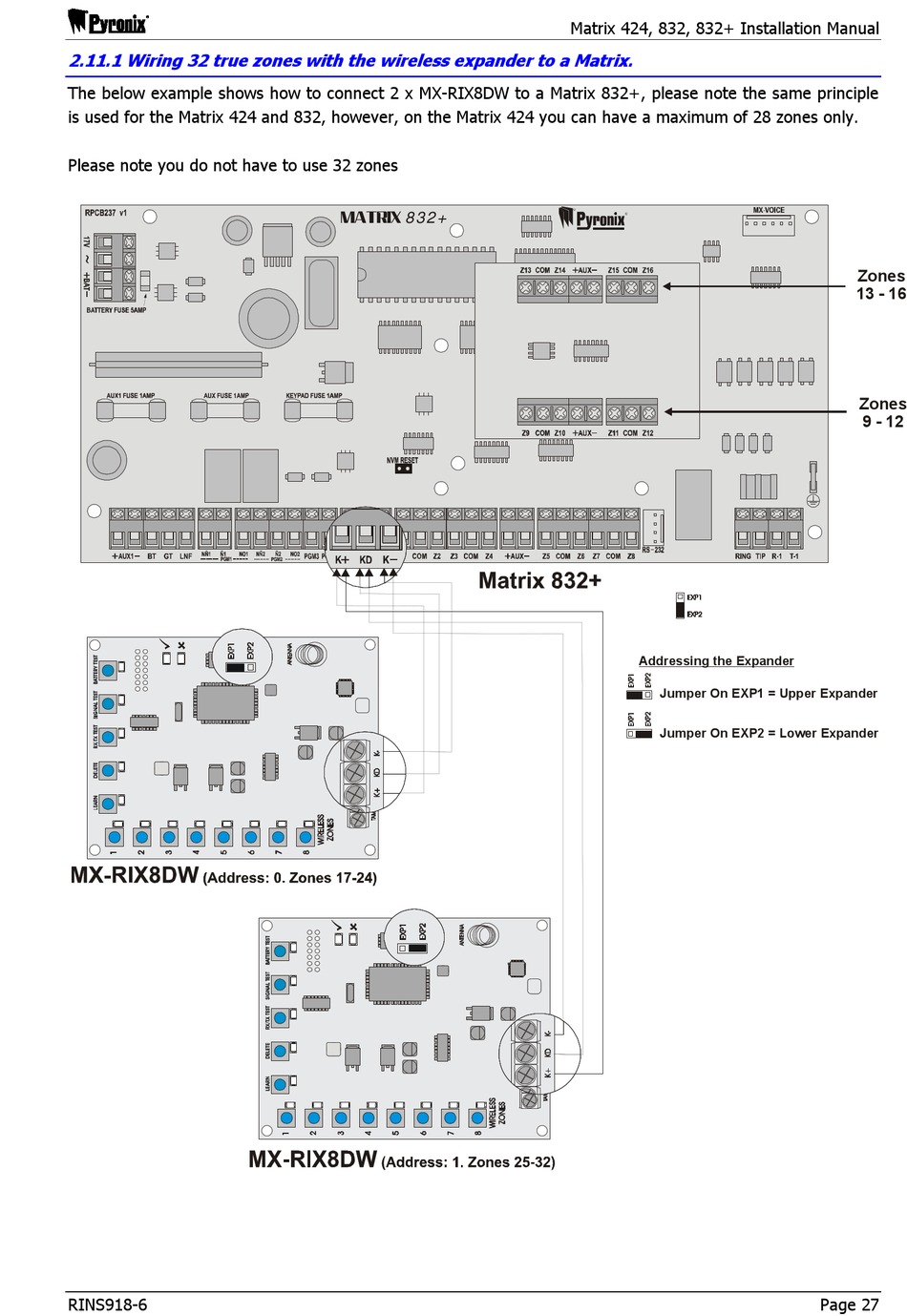

2.11.1 Wiring 32 true zones with the wireless expander to a Matrix.
The below example shows how to connect 2 x MX-RIX8DW to a Matrix 832+, please note the same principle
is used for the Matrix 424 and 832, however, on the Matrix 424 you can have a maximum of 28 zones only.
Please note you do not have to use 32 zones
RINS918-6
832+
NBUSJY
Matrix 424, 832, 832+ Installation Manual
R
R
Addressing the Expander
Jumper On EXP1 = Upper Expander
Jumper On EXP2 = Lower Expander
Zones
13 - 16
Zones
9 - 12
Page 27
