Matrix 424, 832, 832+ Installation Manual

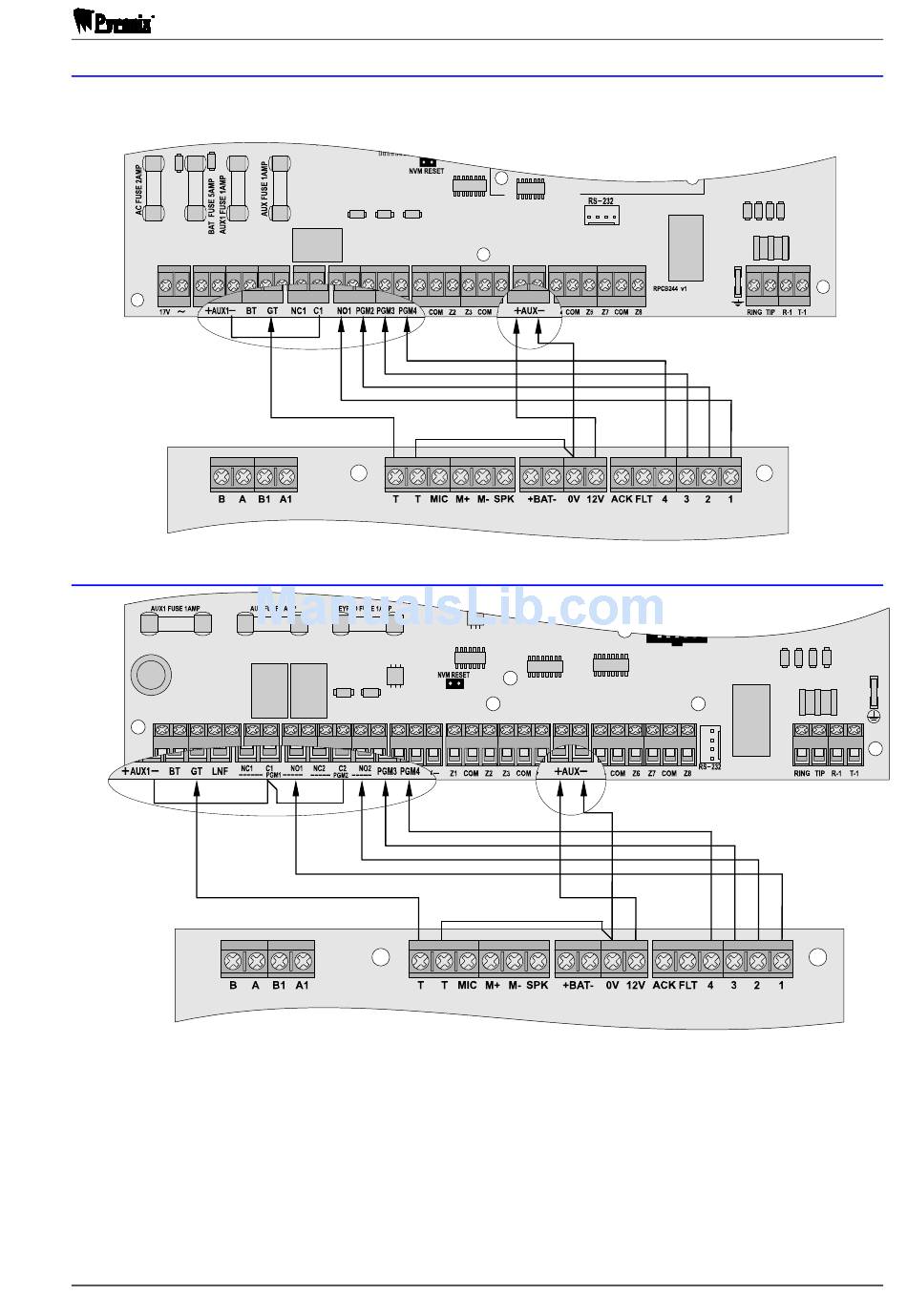

2.13.7 Vocaliser Connection to Matrix 832 (424)

NOTE: Terminal Connections to Matrix 424 are the same as to a Matrix 832, except that the tamper is

connected to a zone programmed as "Tamper".

MATRIX 832 PCB

VOCALISER

MATRIX 832+ PCB

VOCALISER

NOTE: See Vocaliser Manual for complete Vocaliser programming options.

In the above instances programmable outputs are programmed as follows:

PGM1 = "External Bell"

PGM2 = "Follow PA"

PGM3 = "Follow Fire"

PGM4 = "C+" (if Abort function is required)

RINS918-6

Page 35
