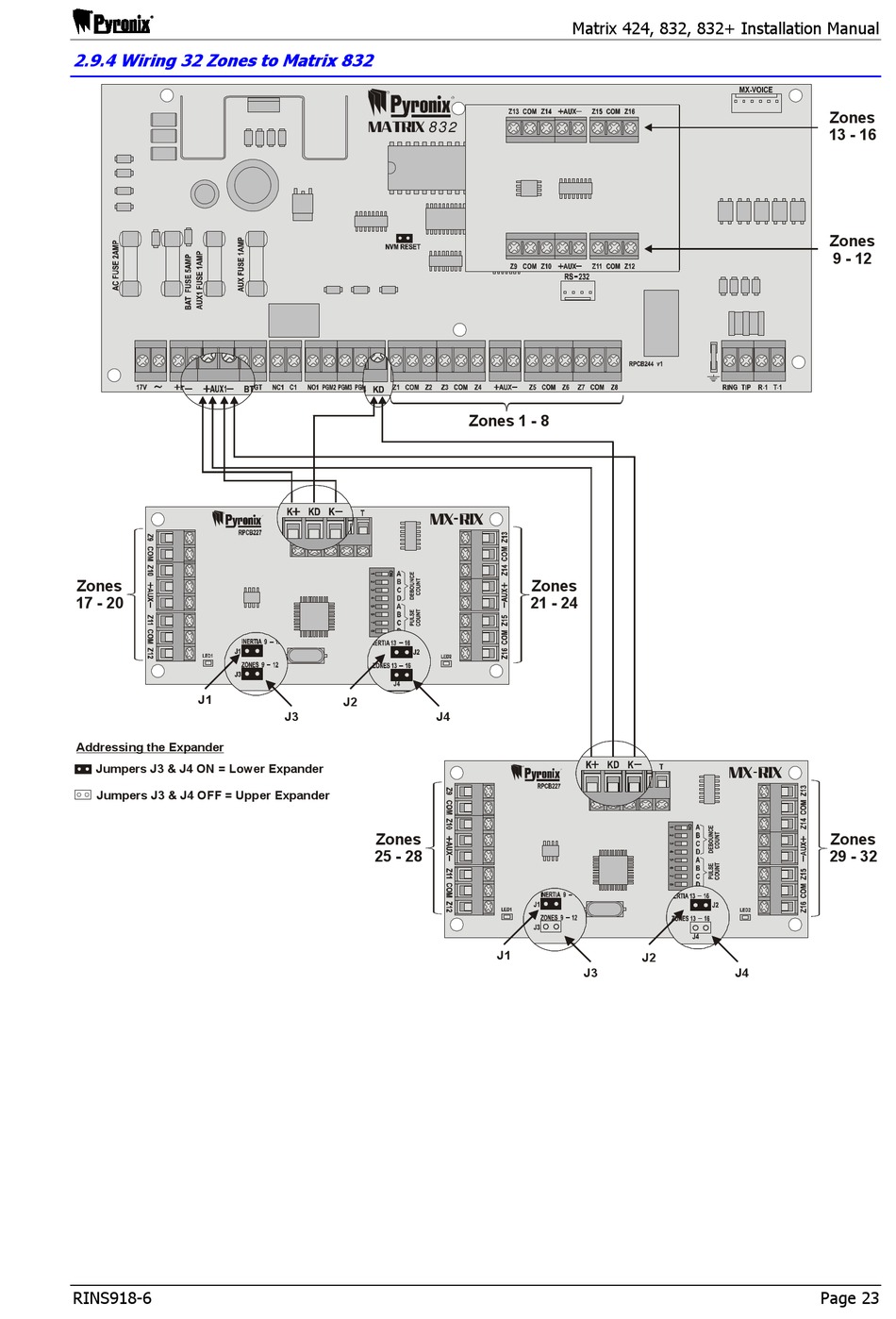

2.9.4 Wiring 32 Zones to Matrix 832
R
Zones
17 - 20
J1
Addressing the Expander
Jumpers J3 & J4 ON = Lower Expander
Jumpers J3 & J4 OFF = Upper Expander
RINS918-6
R
832
NBUSJY
NY SJY
R
J2
J3
Zones
25 - 28
Matrix 424, 832, 832+ Installation Manual
R
Zones 1 - 8
Zones
21 - 24
J4
R
R
J1
J3
NY SJY
J2
J4
Zones
13 - 16
Zones
9 - 12
Zones
29 - 32
Page 23
