Matrix 424, 832, 832+ Installation Manual

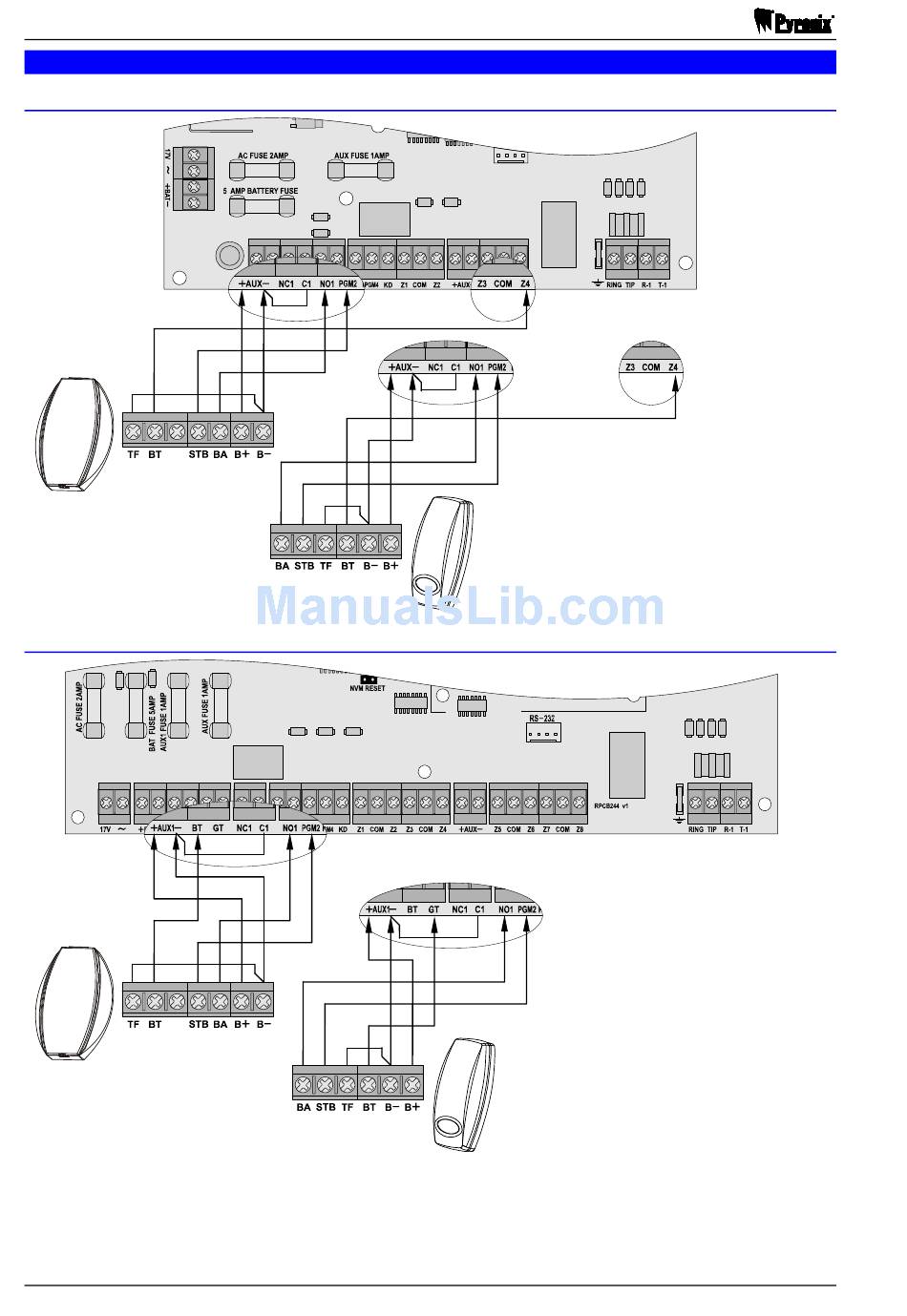

2.13 Programmable Outputs Wiring

2.13.1 External Sounder Connection to Matrix 424

BELLE

2.13.2 External Sounder Connection to Matrix 832

BELLE
Page 32
DECIBELL
DECIBELL
MATRIX 424 PCB
The BELLE or DECIBELL may be connected using
different programmable outputs.
The Bell Tamper must be connected to a spare
zone programmed as Tamper – in this case Z4.
In this instance PGM1 is programmed as "External
Bell" and PGM2 is programmed as "Follow Strobe".
PGM1 = BA = BELL OUTPUT
PGM2 = STB = STROBE TRIGGER
MATRIX 832 PCB
The BELLE or DECIBELL may be connected using
different programmable outputs.
In this instance PGM1 is programmed as "External
Bell" and PGM2 is programmed as "Follow Strobe".
PGM1 = BA = BELL OUTPUT
PGM2 = STB = STROBE TRIGGER
RINS918-6
