1.7 Mounting Procedure for Matrix – Plastic & Metal Case
The following steps illustrate basic mounting procedure for matrix plastic & metal case. (See Section 2 for
complete wiring diagrams)
Step 1 - Remove the case lid from the matrix panel and check all parts and components are in place.
Step 2 - Decide where the matrix panel will be situated. The matrix panel may be housed in the loft or
different rooms in the premises. A discrete and concealed place is advisable, as only the Matrix keypads need
to be seen.
Step 3 - Secure the matrix panel to a sturdy and stable surface, using the mounting screws provided. First
mark the wall where the panel is to be situated (using the mounting holes), drill holes in the wall, and fasten
the panel base to the wall using the screws supplied.
Step 4 - Before the panel base is completely secured to the wall feed cables for keypads / AC power supply /
and accessories through the cable entry holes as illustrated.

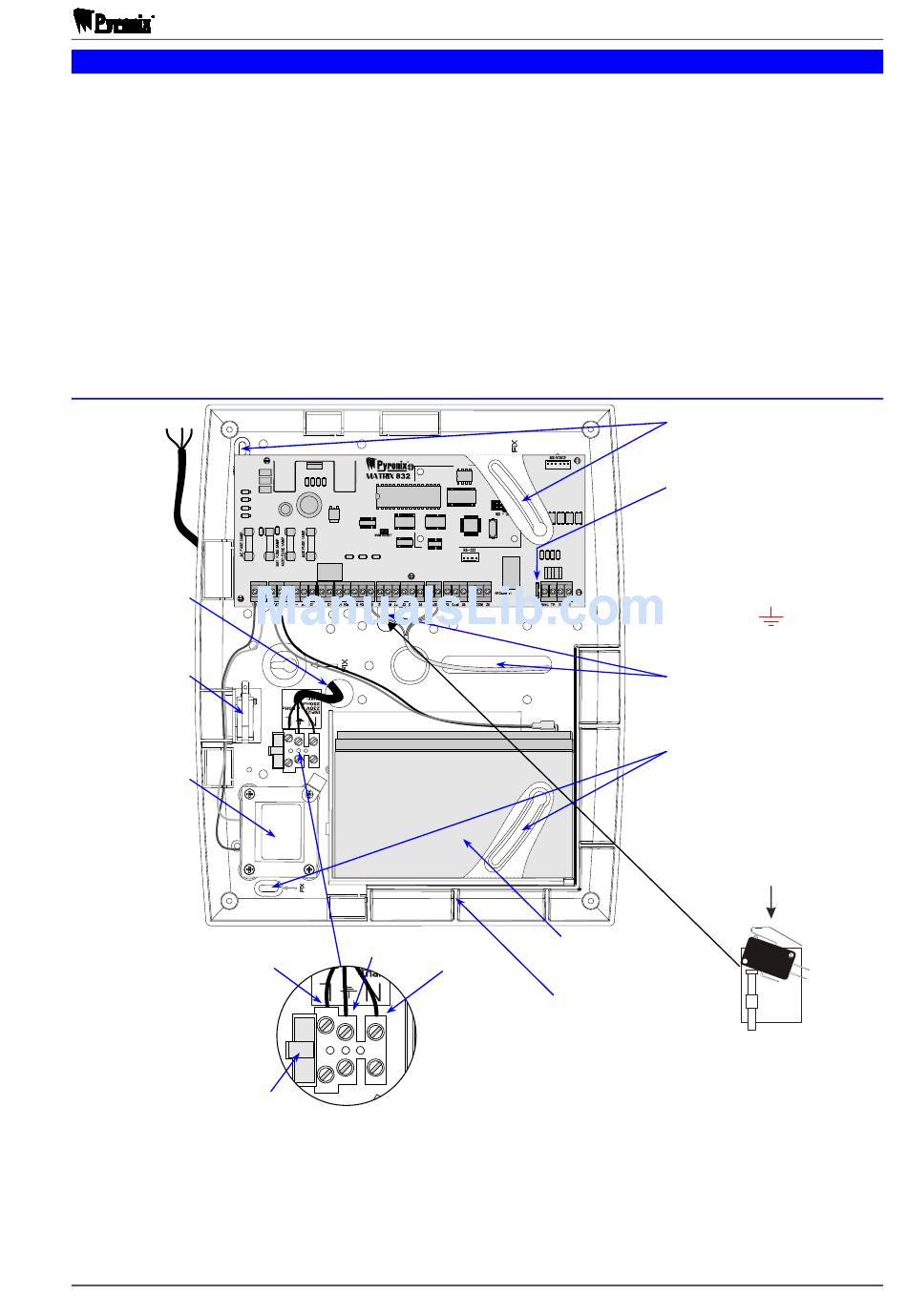

1.7.1 Panel Layout – Plastic Case
To Mains Supply
Mains Cable
Entry Hole
Tamper
Switch
Mains
Transformer
Fuse carrier handle
(fuse nominal - 250mA)
RINS918-6
Earth
Live
Matrix 424, 832, 832+ Installation Manual
Battery
Neutral
Battery
Support
Note: When the panel is connected
to mains use fuse carrier handle to
turn mains power supply on or off
Wall Fixing
Holes
Spade Terminal
for Lighting protection
Attention!
Panel communicator must be
earthed/grounded to
protect telephone
line input
Cable Entry
Holes
Wall Fixing
Holes
For Tamper Switch:
Remove and install
tamper pin (behind
PCB) of the
panel case as below
