2.6 Keypads & Proximity Readers Wiring
NOTE: When connecting keypads to a Matrix panel, the first keypad must always be ID1.

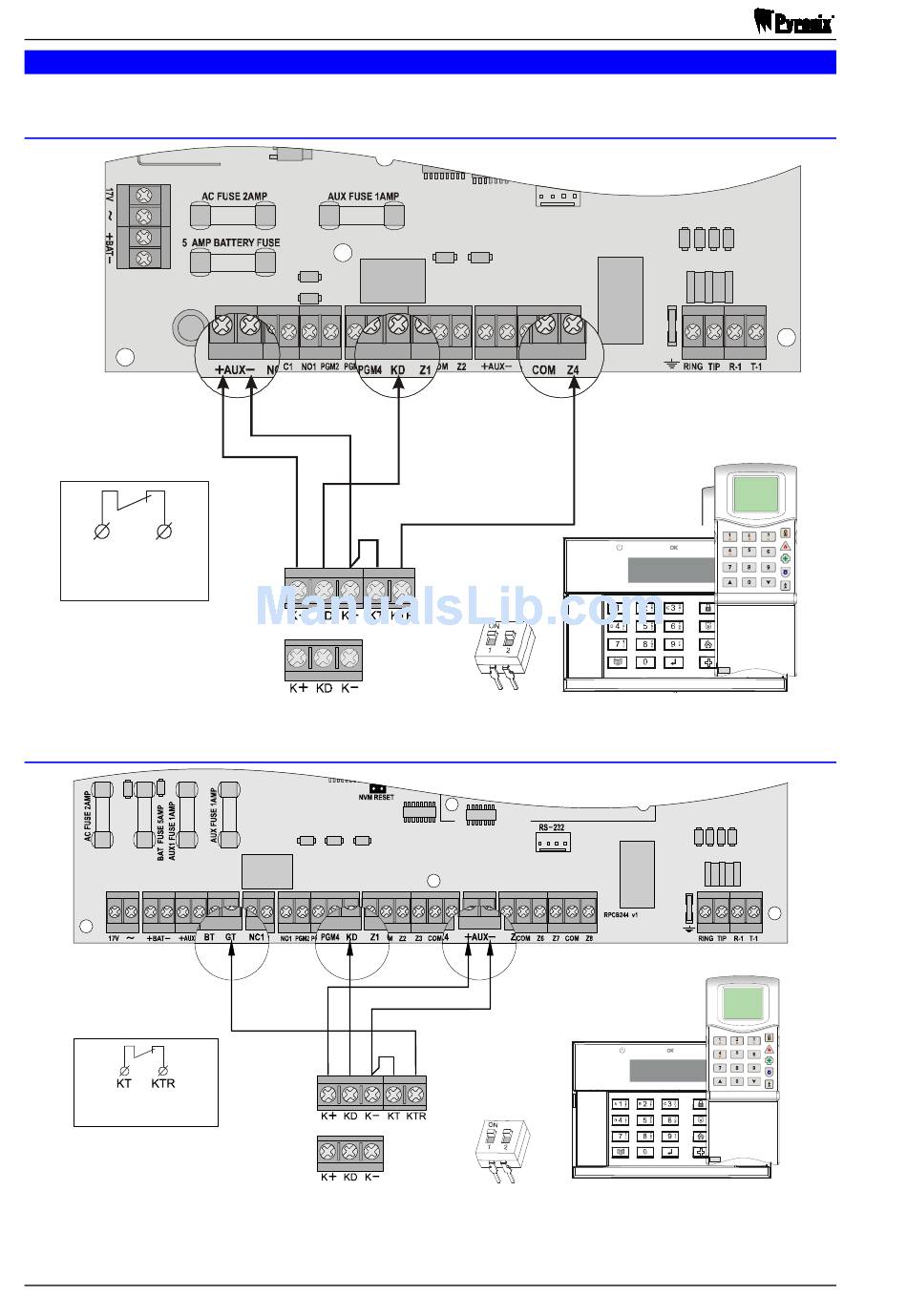

2.6.1 Connecting a Single Keypad to a Matrix 424

KT KTR
Tamper terminals
of ICON keypad
NOTE: Tamper connections must go to a zone programmed as Tamper.

2.6.2 Connecting a Single Keypad to a Matrix 832

Tamper terminals
of ICON Keypad
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
