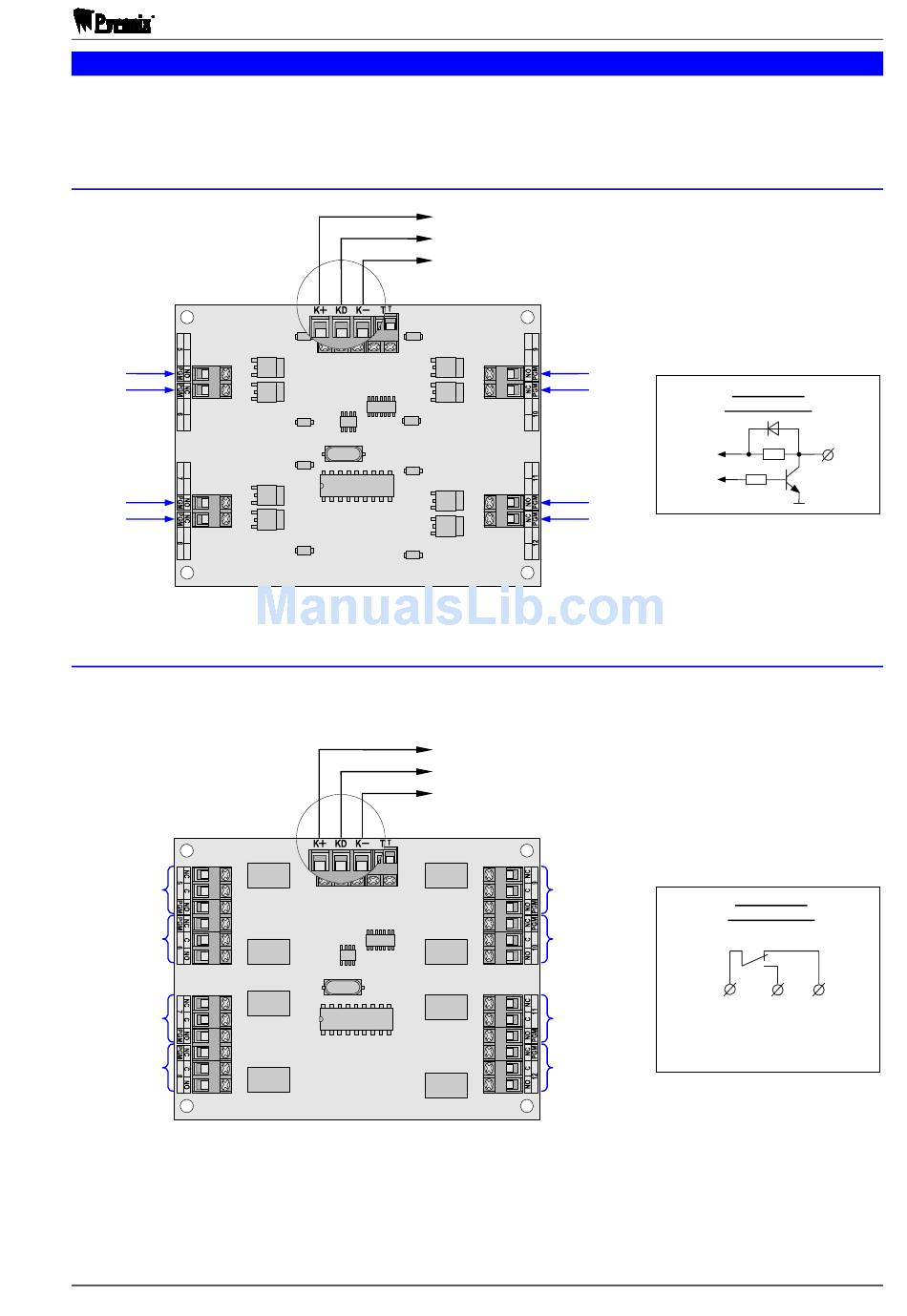

2.10 Matrix PGM Expanders

The ROX8R/8T is an additional feature to the Matrix panel, which will enable all 12 programmable outputs on
the matrix panel to be used. See cabling restrictions in Section 1.9 for the KEN values, which may be used
with the output expander.

2.10.1 Transistor Output Expander MX-ROX8T

PGM 5
PGM 6
PGM 7
PGM 8

2.10.2 Relay Output Expander MX-ROX8R

NOTE: The relay output expander provides voltage free change over contacts. This is more flexible
and can isolate the circuit from the system.
PGM 5
PGM 6
PGM 7
PGM 8
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
RINS918-6
TO MATRIX PCB: (424 & 832)
(+AUX)
(KD)
(AUX-)
TO MATRIX PCB: (424 & 832)
(+AUX)
(KD)
(AUX-)
Matrix 424, 832, 832+ Installation Manual
(832+)
(K+)
(KD)
(K-)
PGM 9
PGM 10
+ Supply
PGM 11
PGM 12
(832+)
(K+)
(KD)
(K-)
PGM 9
PGM 10
PGM 11
Contacts position when output is OFF
PGM 12
PGM Output
Stage Diagram
10K
PGM
4K7
PGM Output
Stage Diagram
C NO NС
(relay coil is de-energized)
Page 25
