Matrix 424, 832, 832+ Installation Manual

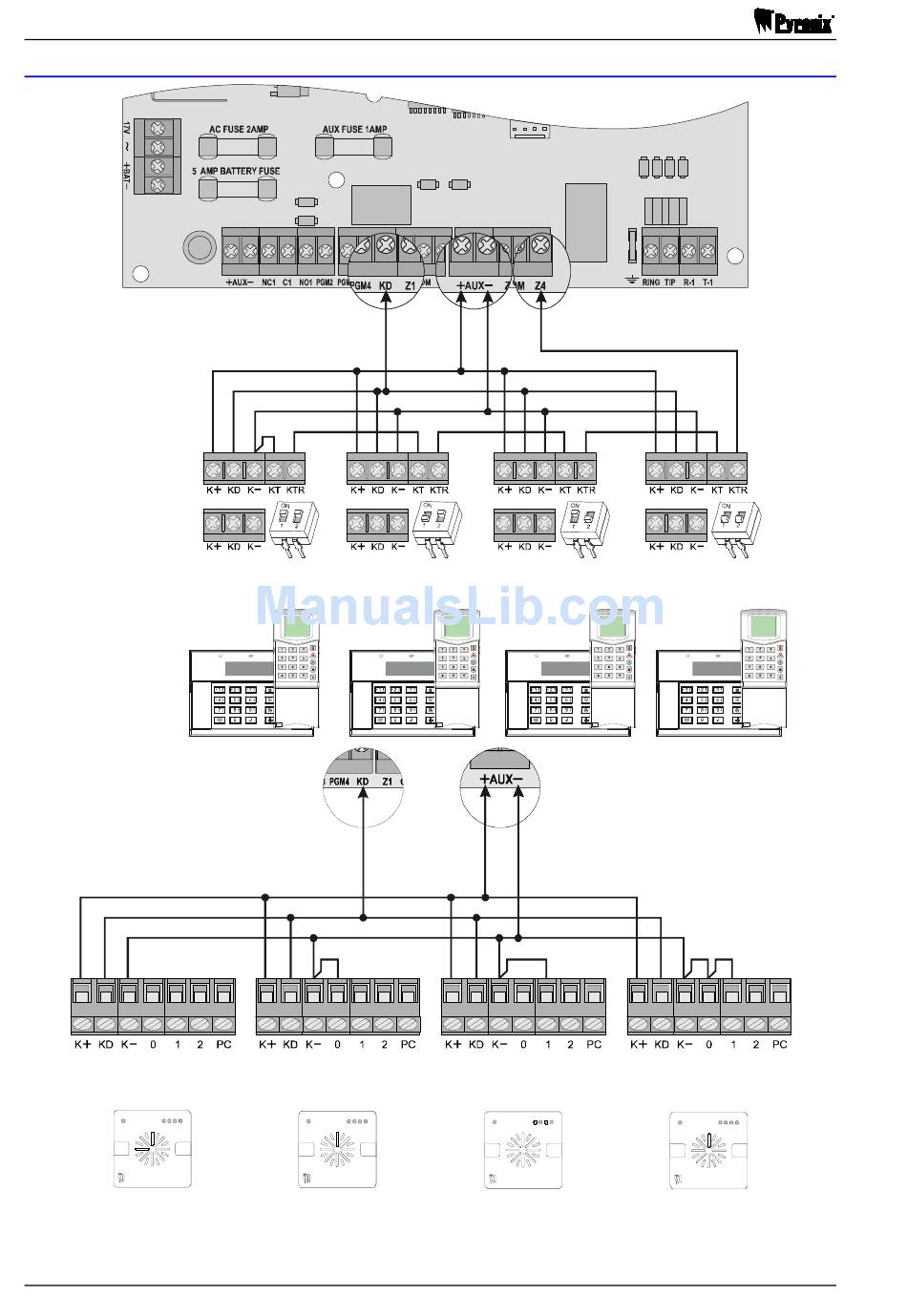

2.6.4 Connecting Multiple Keypads / Proximity Readers to a Matrix 424
ICON
Keypad
LCD
Keypad
READER 1
(ID 1)
NOTE: Tamper connections must go to a zone programmed as Tamper.
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
Page 14
KEYPAD 2
KEYPAD 1
(ID 2)
(ID 1)
M ATRIX
OK
READER 2
(ID 2)
KEYPAD 3
(ID 3)
M ATRIX
M ATRIX
OK
OK
READER 3
(ID 3)
KEYPAD 4
(ID 4)
M ATRIX
OK
READER 4
(ID 4)
RINS918-6
