2.12 Zone Wiring

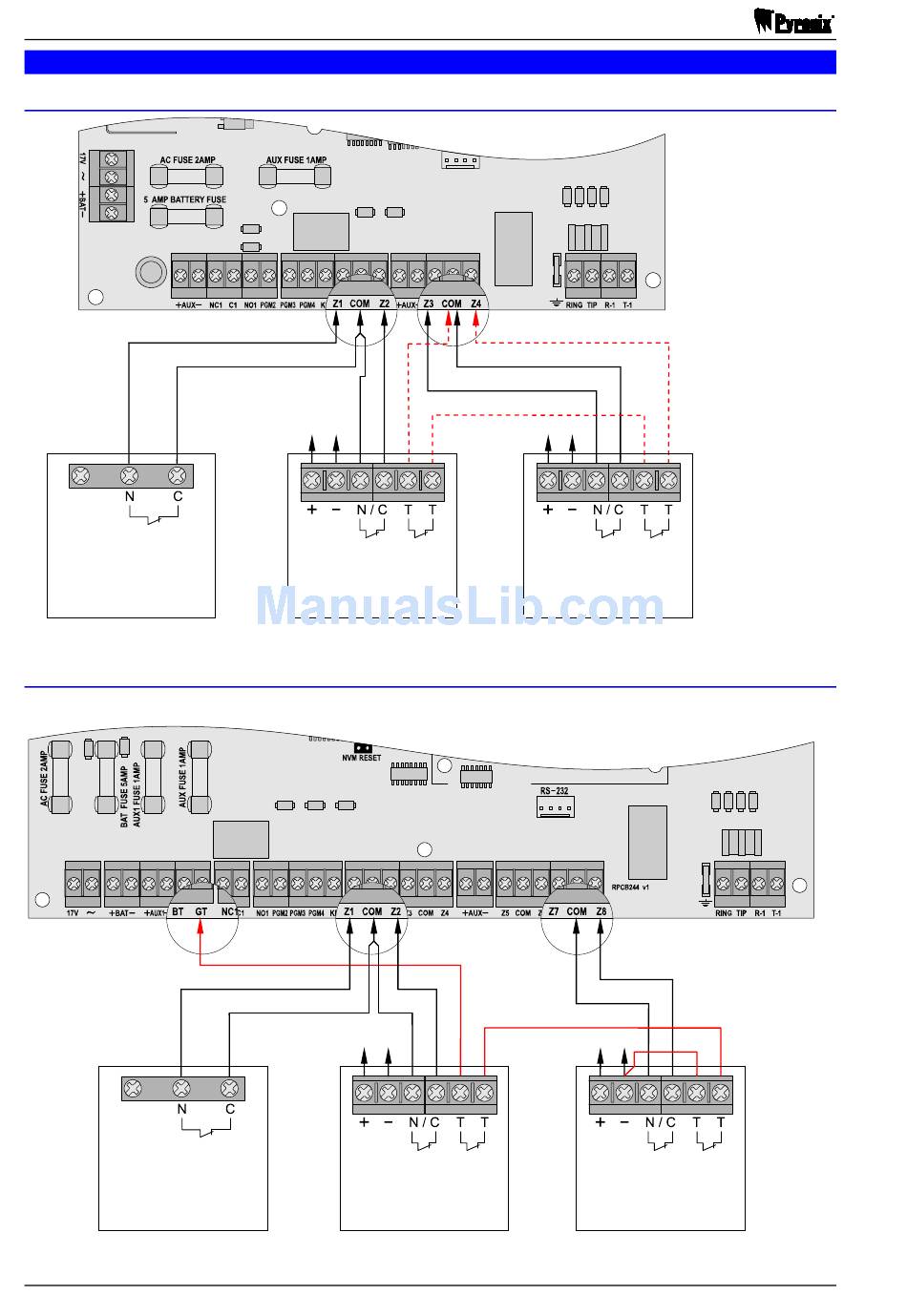

2.12.1 Normally Closed Zones Connection to Matrix 424

Spare
ALARM
Magnetic
Contact
Zone 1

2.12.2 Normally Closed Zones Connection to Matrix 832 (832+)

NOTE: Terminal connections to Matrix 832+ are the same as to a Matrix 832.
Spare
ALARM
Magnetic
Contact
Zone 1
Page 28
MATRIX 424 PCB
+AUX-
SUPPLY
ALARM TAMPER
PIR
Detector
Zone 2
+AUX-
SUPPLY
ALARM TAMPER
PIR
Detector
Zone 2
Note: In order to create
the tamper loop for PIR
detectors use a spare
zone programmed as
Tamper, if available.
(e.g. Zone 4)
+AUX-
SUPPLY
ALARM TAMPER
PIR
Detector
Zone 3
MATRIX 832 PCB
+AUX-
SUPPLY
ALARM TAMPER
PIR
Detector
Zone 8
