Matrix 424, 832, 832+ Installation Manual

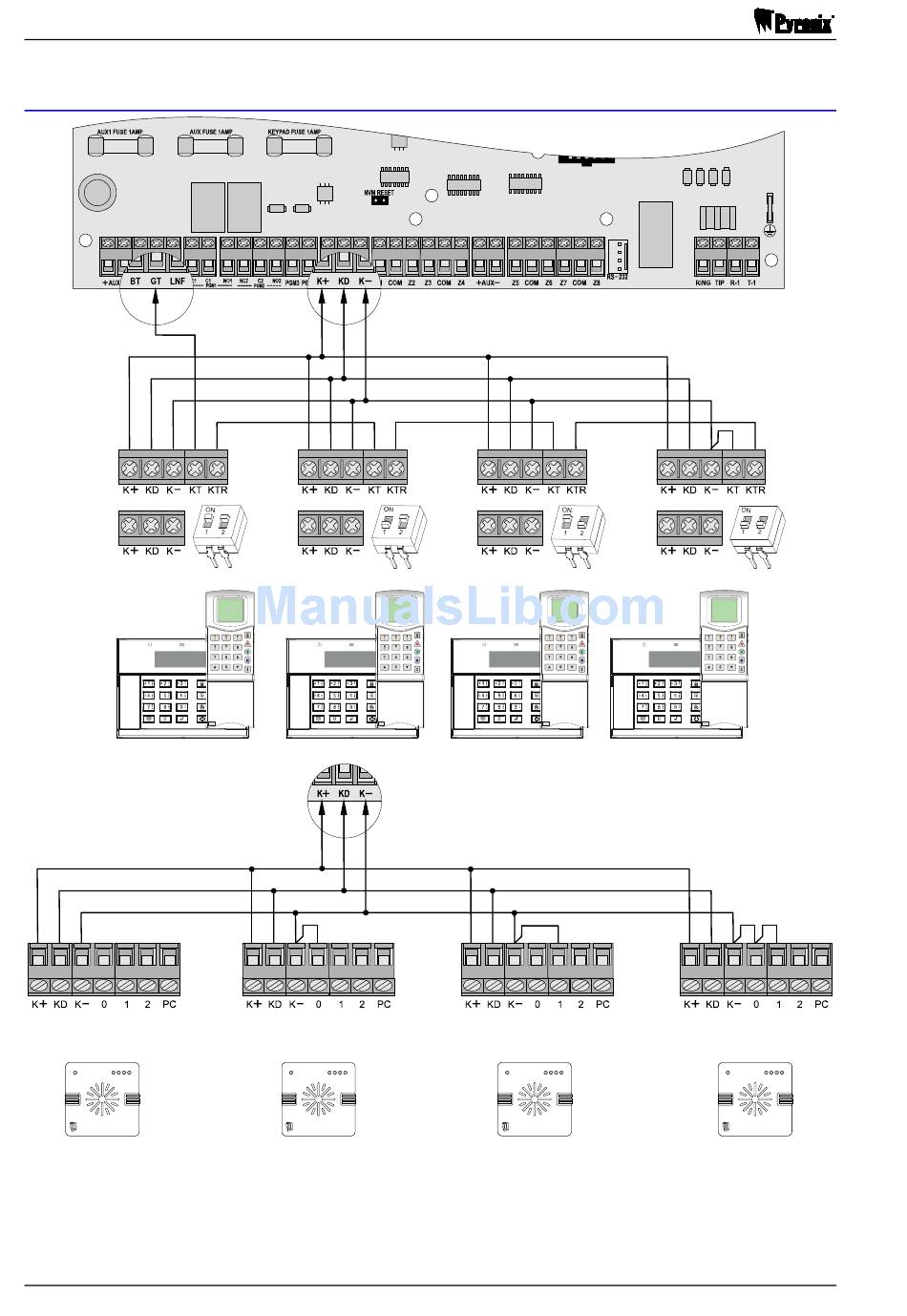

2.6.6 Connecting Multiple Keypads / Proximity Readers to a Matrix 832+
ICON
Keypad
LCD
Keypad
KEYPAD 1
(ID1)
OK
READER 1
(ID1)
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
Page 16
KEYPAD 2
(ID2)
OK
READER 2
(ID2)
MATRIX 832+ PCB
KEYPAD 3
(ID3)
OK
READER 3
(ID3)
KEYPAD 4
(ID4)
OK
READER 4
(ID4)
RINS918-6
