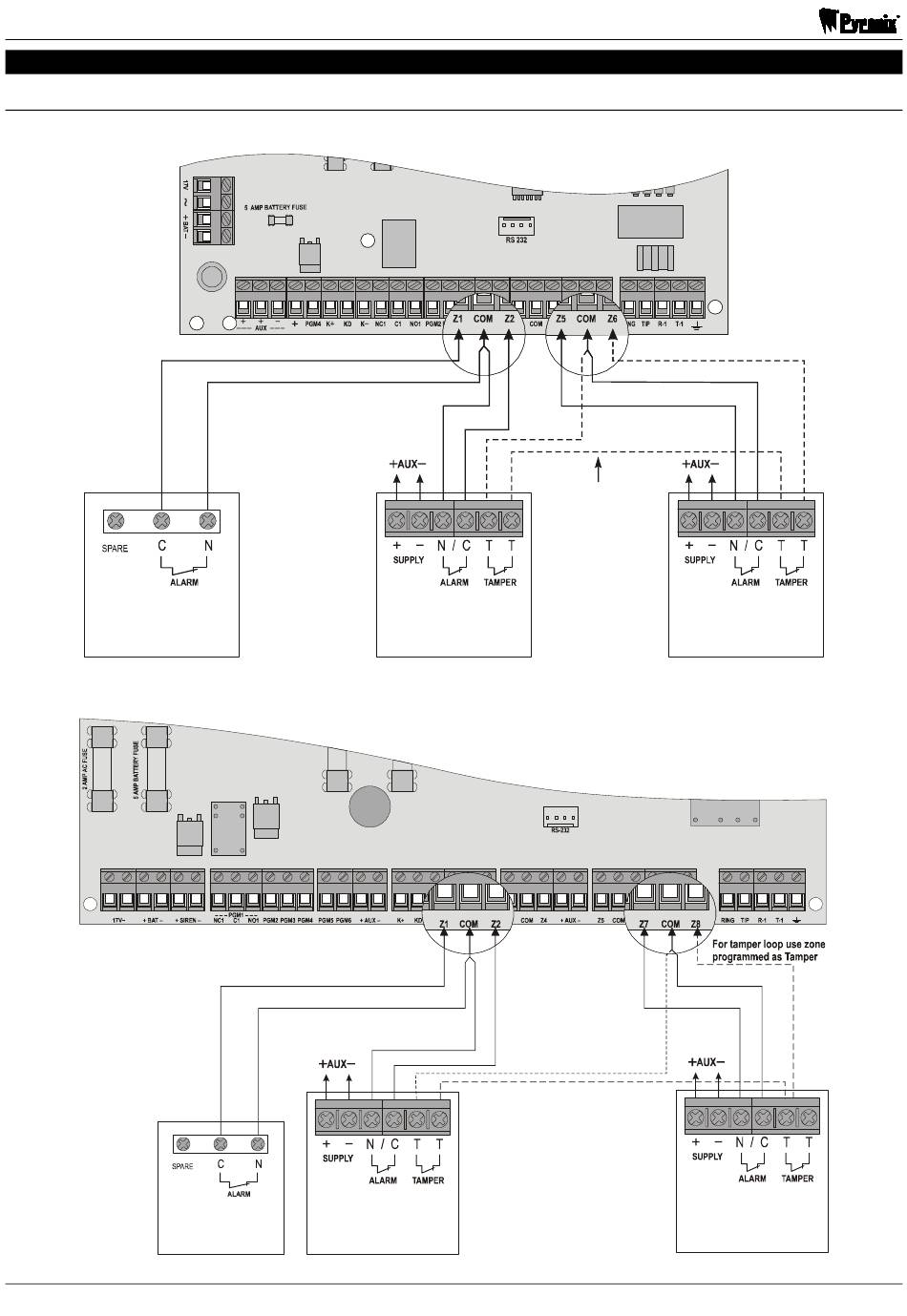

2.6 Zone Wiring
2.6.1 Normally Closed Wiring – South Africa
Matrix 6
For tamper loop
use spare zone
programmed as Tamper
PIR
PIR
Magnetic Contact
Detector
Detector
Zone 1
Zone 2
Zone 5
Matrix 816
PIR
PIR
Magnetic Contact
Detector
Detector
Zone 7
Zone 1
Zone 2
