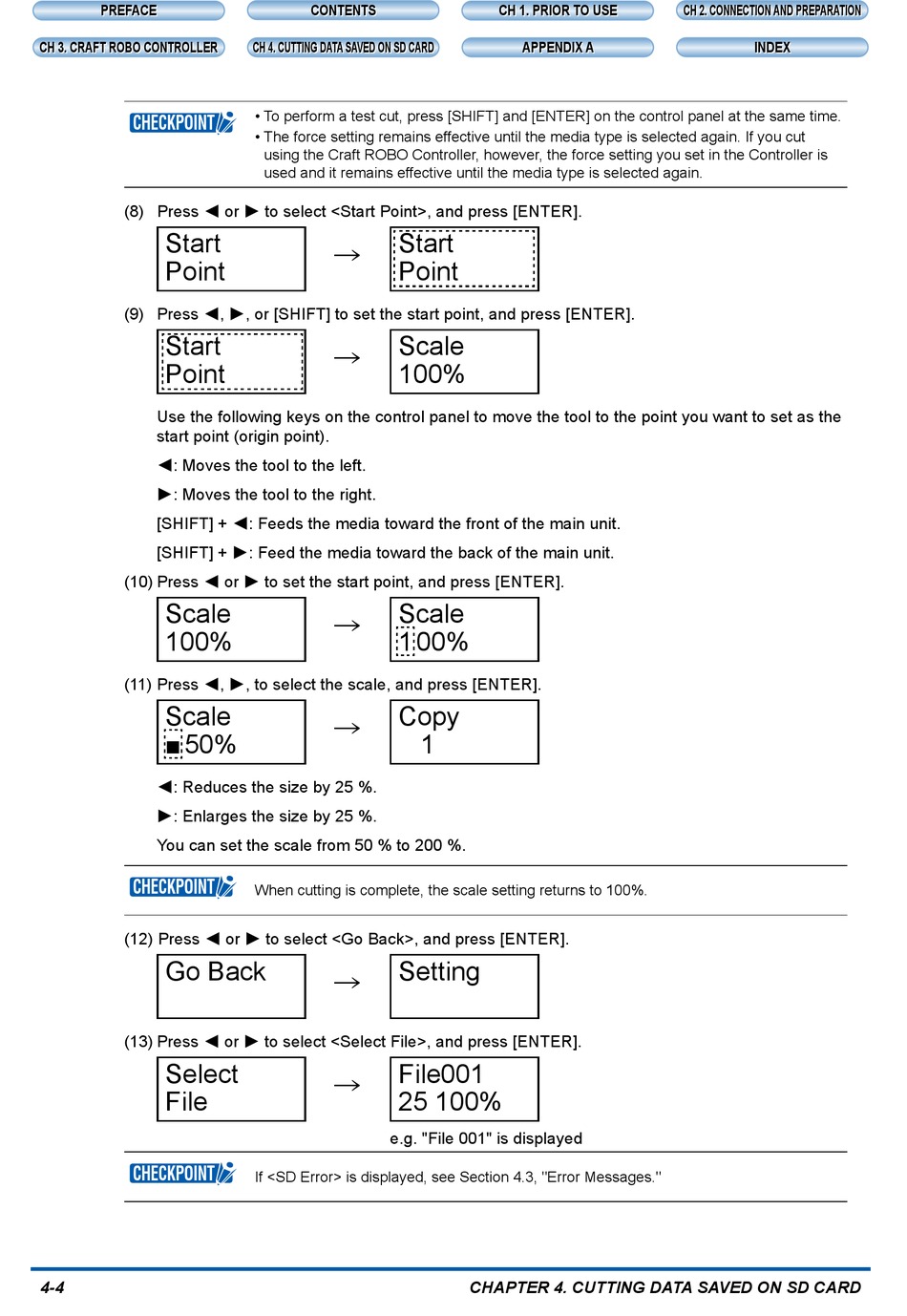

(8) Press  or  to select <Start Point>, and press [ENTER].
Start
Point
(9) Press , , or [SHIFT] to set the start point, and press [ENTER].
Start
Point
Use the following keys on the control panel to move the tool to the point you want to set as the
start point (origin point).
: Moves the tool to the left.
: Moves the tool to the right.
[SHIFT] + : Feeds the media toward the front of the main unit.
[SHIFT] + : Feed the media toward the back of the main unit.
(10) Press  or  to set the start point, and press [ENTER].
Scale
100%
(11) Press , , to select the scale, and press [ENTER].
Scale
■ 50%
: Reduces the size by 25 %.
: Enlarges the size by 25 %.
You can set the scale from 50 % to 200 %.
CHECKPOINT
(12) Press  or  to select <Go Back>, and press [ENTER].
Go Back
(13) Press  or  to select <Select File>, and press [ENTER].
Select
File
CHECKPOINT
4-4
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
• To perform a test cut, press [SHIFT] and [ENTER] on the control panel at the same time.
• The force setting remains effective until the media type is selected again. If you cut
using the Craft ROBO Controller, however, the force setting you set in the Controller is
used and it remains effective until the media type is selected again.
Start

Point
Scale

100%
Scale

1 00%
Copy

1
When cutting is complete, the scale setting returns to 100%.
Setting

File001

25 100%
e.g. "File 001" is displayed
If <SD Error> is displayed, see Section 4.3, "Error Messages."
