• Follow the procedure below to change the mode from Standard to Expanded or
viceversa. The default setting is "Standard" mode.
1. In the Control Panel, open "Printers" ("Printers and Faxes" for Windows XP).
2. Open "Properties" for Graphtec CC300 or CC330.
3. Click [Printing Preferences] in the "General" tab.
4. Select the desired mode in "Margins" on the "Basic Setup" tab.
(If you create the cut data using the ROBO Master or Cutting Master 2, the [Expanded]
mode is selected.)

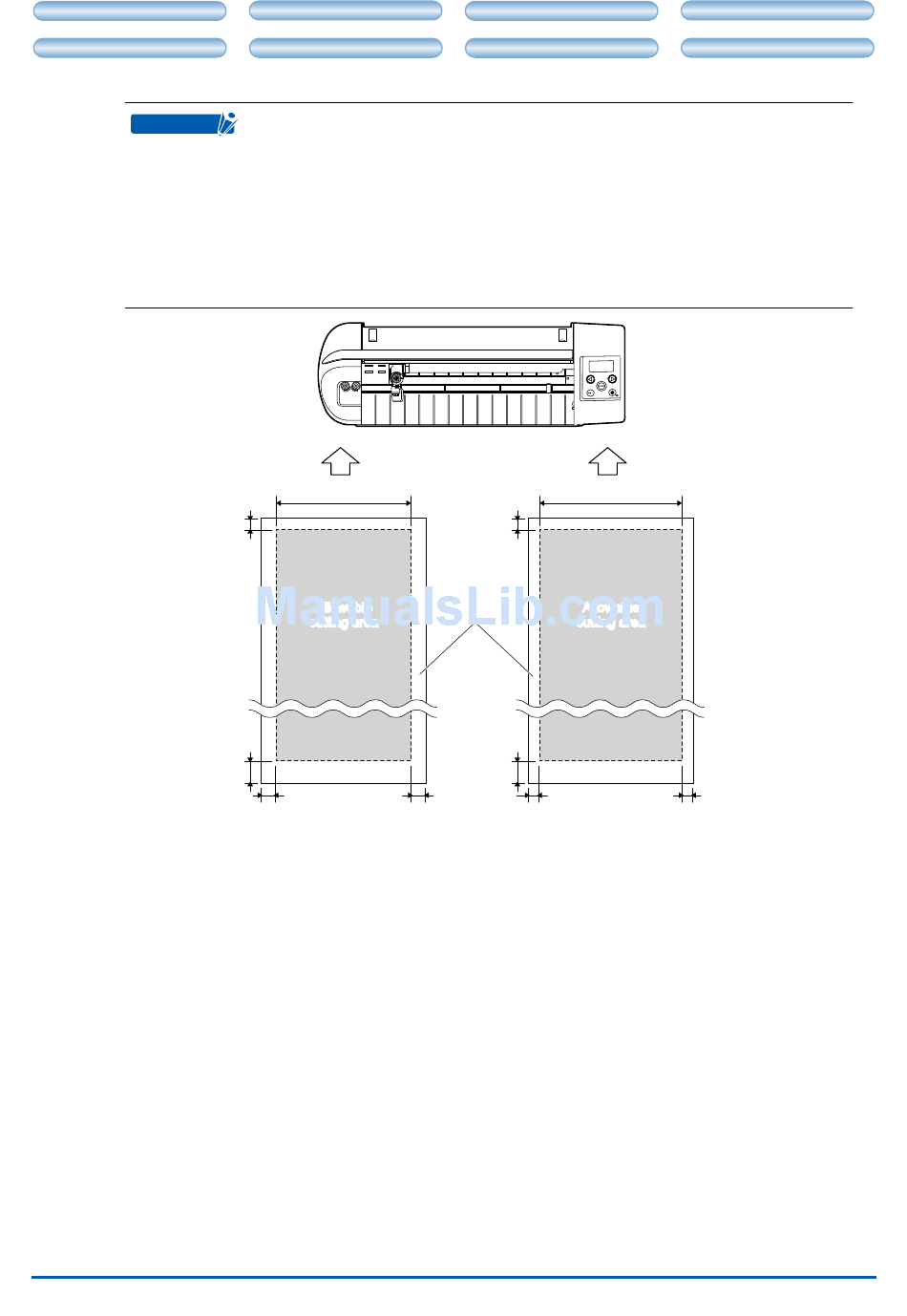

• The allowable cutting area indicated above is applicable only when the media is set
correctly.
190mm
Allowable
cutting area
10mm 10mm
Standard mode
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
APPENDIX A
APPENDIX A
200mm
5mm
Allowable
Media
cutting area
20mm
5mm
Expanded mode
