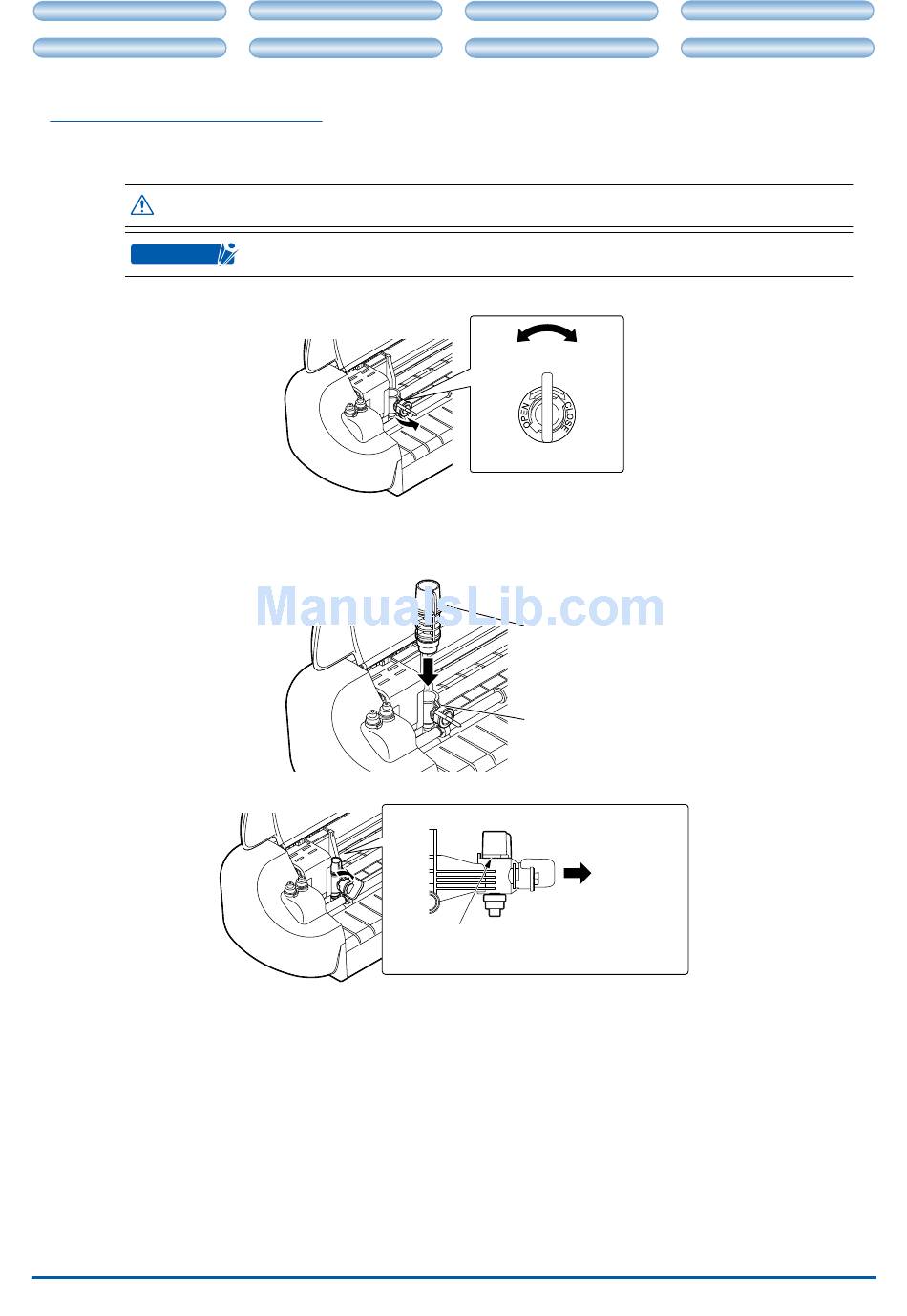

Mountng the blade plunger
Mount the blade plunger that has had its protruding blade length adjusted (by selecting the most
suitable blade adjustment cap) in the Craft ROBO.
Caution
CHECKPOINT
(1) Turn the lock lever to the left (OPEN direction) to loosen the tool holder.
(2) Firmly insert the blade plunger in the tool holder and then turn the lock lever to the right
(CLOSE direction) to tighten the tool holder.
2-14
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
When handling the cutter blade, take care not to cut your hands.
Be sure to grip the tool holder firmly when mounting or removing the blade plunger.
Firmly insert the blade plunger until the underside
of the flange contacts the tool holder.
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
APPENDIX A
APPENDIX A
Loosen Tighten
Lock lever
Plunger
Tool holder
Front
