CHECKPOINT
When cutting horizontal images,
fit lower-left corner of the media
to the  (black triangle) mark at
the upper-left corner of the carrier
sheet.

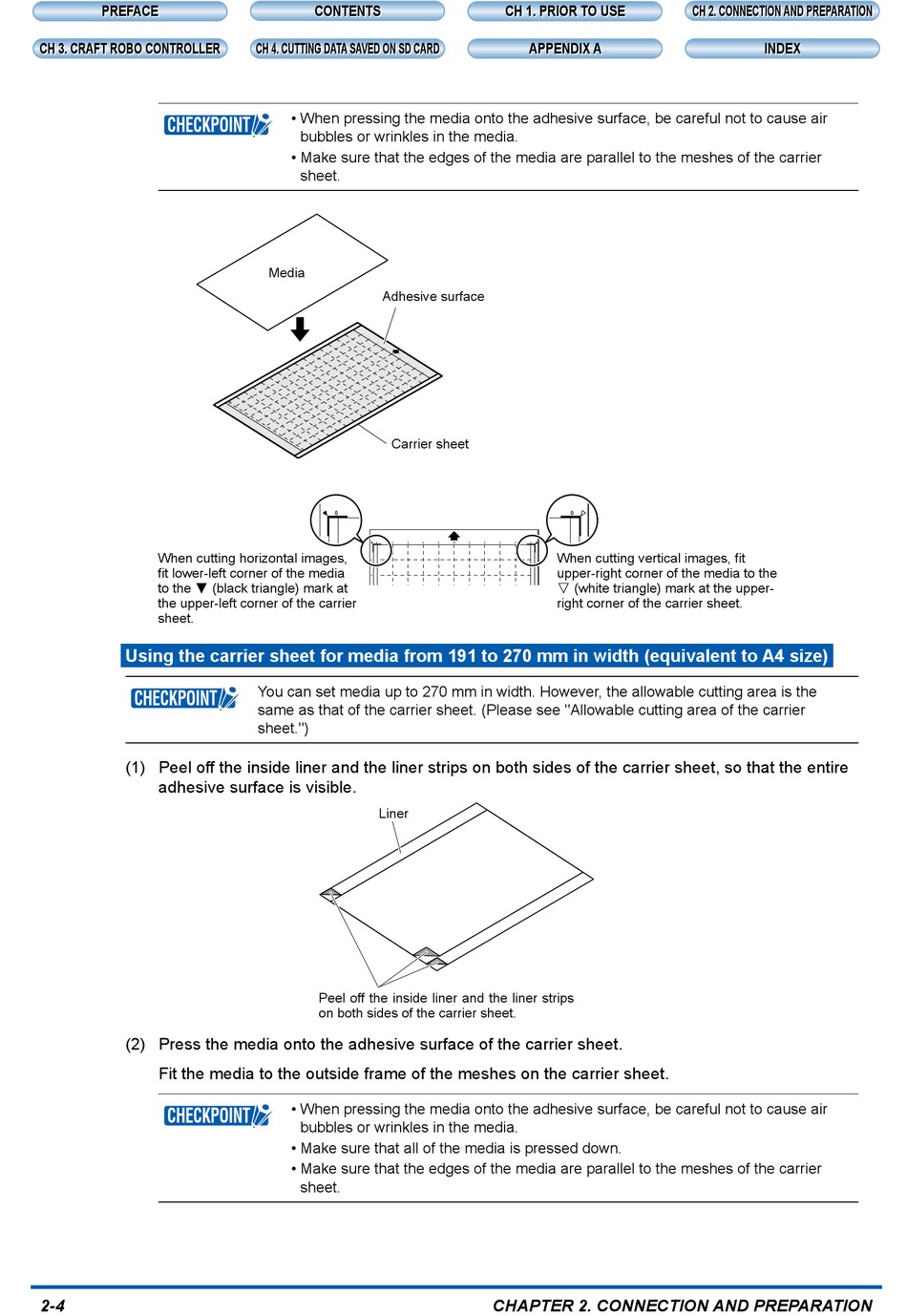

Using the carrier sheet for media from 191 to 270 mm in width (equivalent to A4 size)
CHECKPOINT
(1) Peel off the inside liner and the liner strips on both sides of the carrier sheet, so that the entire
adhesive surface is visible.
(2) Press the media onto the adhesive surface of the carrier sheet.
Fit the media to the outside frame of the meshes on the carrier sheet.
CHECKPOINT
2-4
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
• When pressing the media onto the adhesive surface, be careful not to cause air
bubbles or wrinkles in the media.
• Make sure that the edges of the media are parallel to the meshes of the carrier
sheet.
Media
Adhesive surface
Carrier sheet
You can set media up to 270 mm in width. However, the allowable cutting area is the
same as that of the carrier sheet. (Please see "Allowable cutting area of the carrier
sheet.")
Liner
Peel off the inside liner and the liner strips
on both sides of the carrier sheet.
• When pressing the media onto the adhesive surface, be careful not to cause air
bubbles or wrinkles in the media.
• Make sure that all of the media is pressed down.
• Make sure that the edges of the media are parallel to the meshes of the carrier
sheet.
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
APPENDIX A
APPENDIX A
When cutting vertical images, fit
upper-right corner of the media to the
 (white triangle) mark at the upper-
right corner of the carrier sheet.
