305 mm
Loadng the carrer sheet wth meda attached

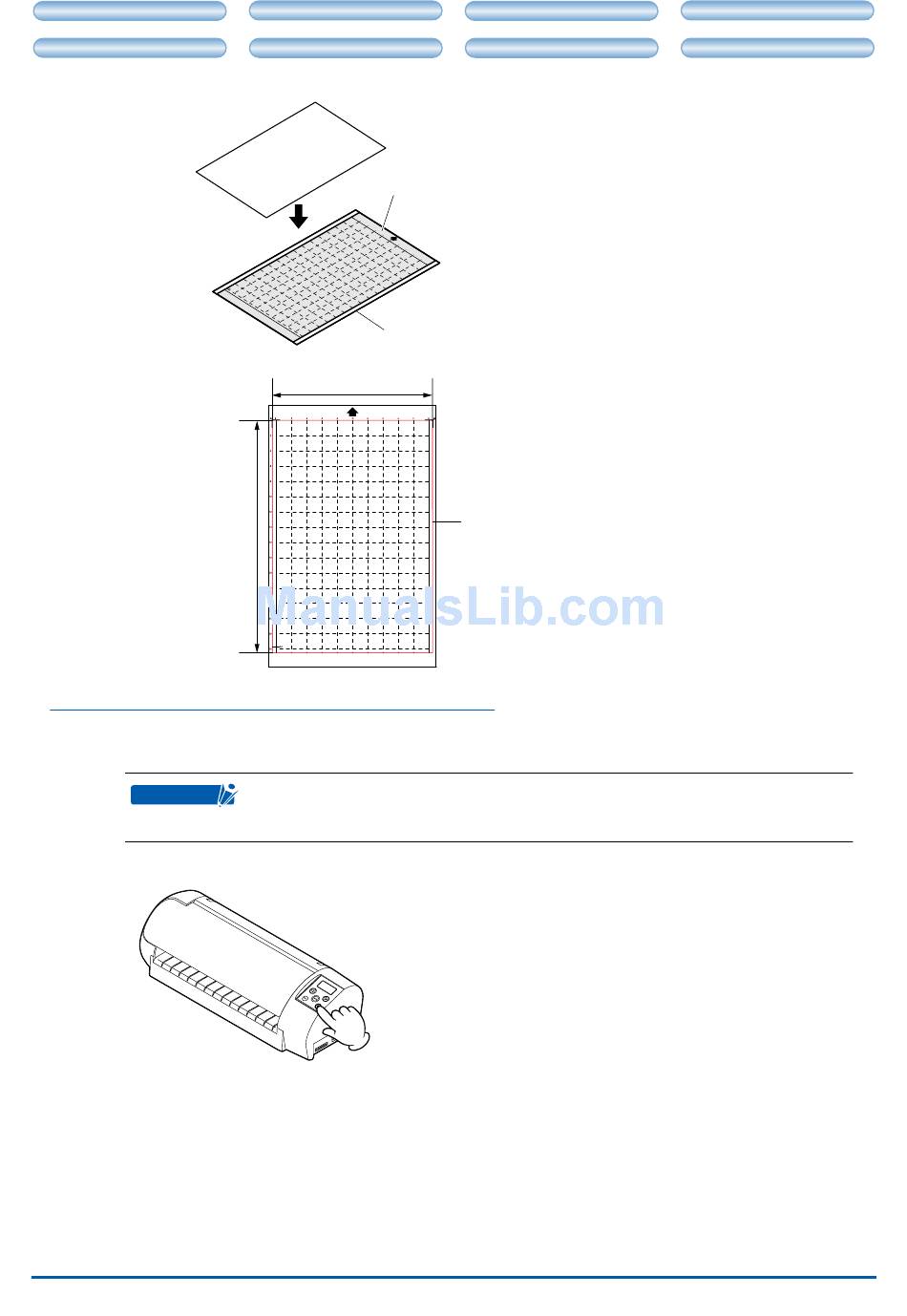

When using media smaller than 210 mm x 305 mm, always affix the media within the allowable
cutting area.
CHECKPOINT
(1) Press the standby switch and confirm that the LED lamp is lit (green).
(2) Load the carrier sheet with media attached in the Craft ROBO.
Align the left edge of the sheet with the left guideline on the front guide. Place the top edge of
the sheet against both push rollers, making sure that the sheet is straight.
CHAPTER 2. CONNECTION AND PREPARATION
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
Media
Adhesive surface
Carrier sheet
210 mm
• Do not use media smaller than postcard size.
• For details about the allowable cutting area of the carrier sheet, please refer to
"Allowable cutting area of the carrier sheet."
