20mm
If the media width is between 210 and 270 mm
Even if the width of the media is larger than 210 mm, the allowable width is the same as that for an
A4 size media (190 mm in Standard mode and 200 mm in Expanded mode).

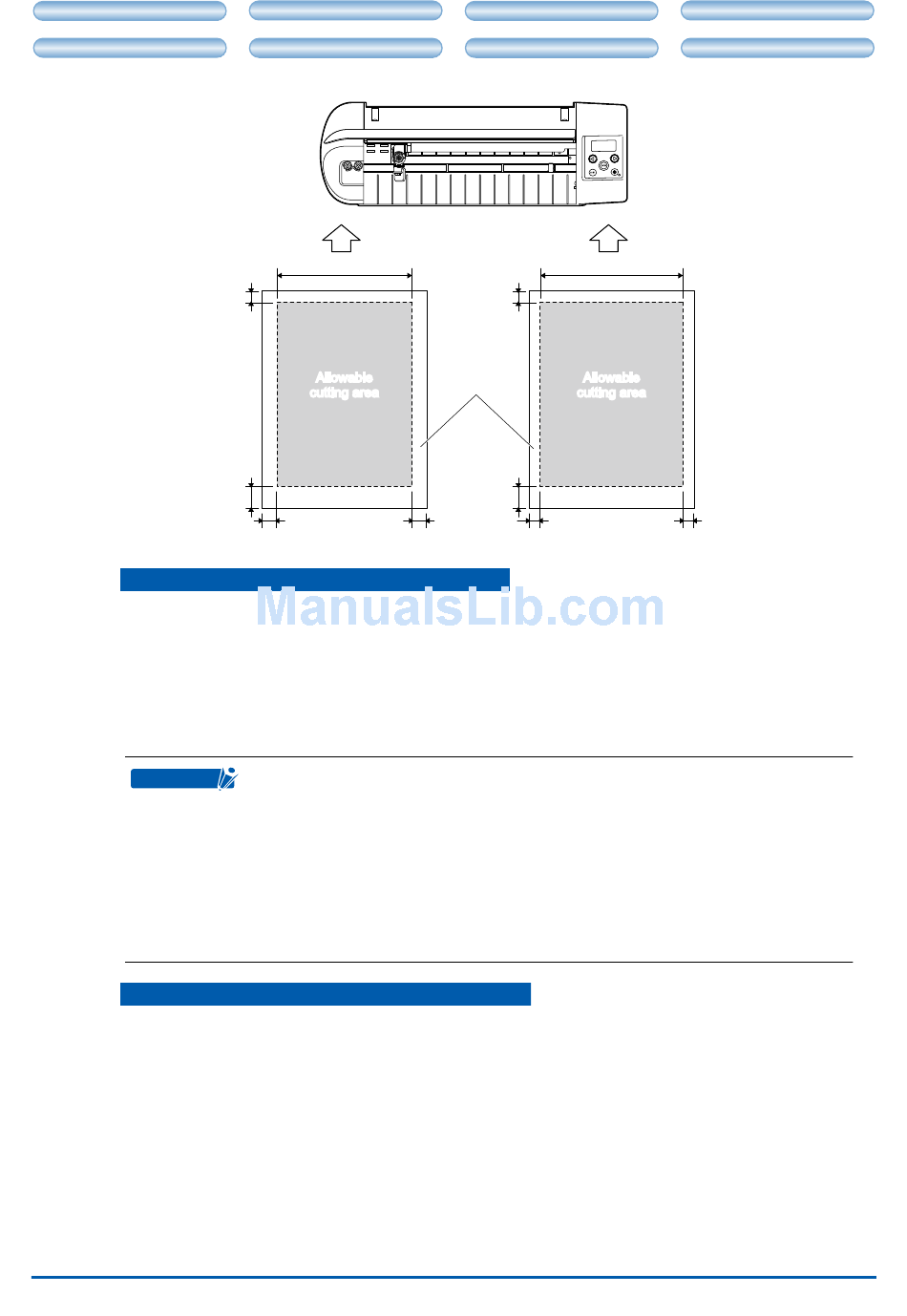

Standard mode: The width of the allowable cutting area is 190 mm.
Expanded mode: The width of the allowable cutting area is 200 mm.
If registration marks are used, the allowable width is 190 mm.
CHECKPOINT
If the media length is between 297 and 1,000 mm
Standard mode: The width of the allowable cutting area is 190 mm.
Expanded mode: The width of the allowable cutting area is 200 mm.
If registration marks are used, the allowable width is 190 mm.
2-10
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
190mm
5mm
Allowable
cutting area
10mm
Standard mode
• Follow the procedure below to change the mode from Standard to Expanded or
viceversa. The default setting is "Standard" mode.
1. In the Control Panel, open "Printers" ("Printers and Faxes" for Windows XP).
2. Open "Properties" for Graphtec CC300 or CC330.
3. Click [Printing Preferences] in the "General" tab.
4. Select the desired mode in "Margins" on the "Basic Setup" tab.
(If you create the cut data using the ROBO Master or Cutting Master 2, the [Expanded]
mode is selected.)
• The allowable cutting area indicated above is applicable only when the media is set
correctly.
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
APPENDIX A
APPENDIX A
5mm
Media
20mm
10mm 5mm
Expanded mode
CHAPTER 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
200mm
Allowable
cutting area
5mm
