Mountng the ballpont pen
Mount a ballpoint pen into the ballpoint pen plunger and then mount the ballpoint pen plunger in the
Craft ROBO's tool holder.

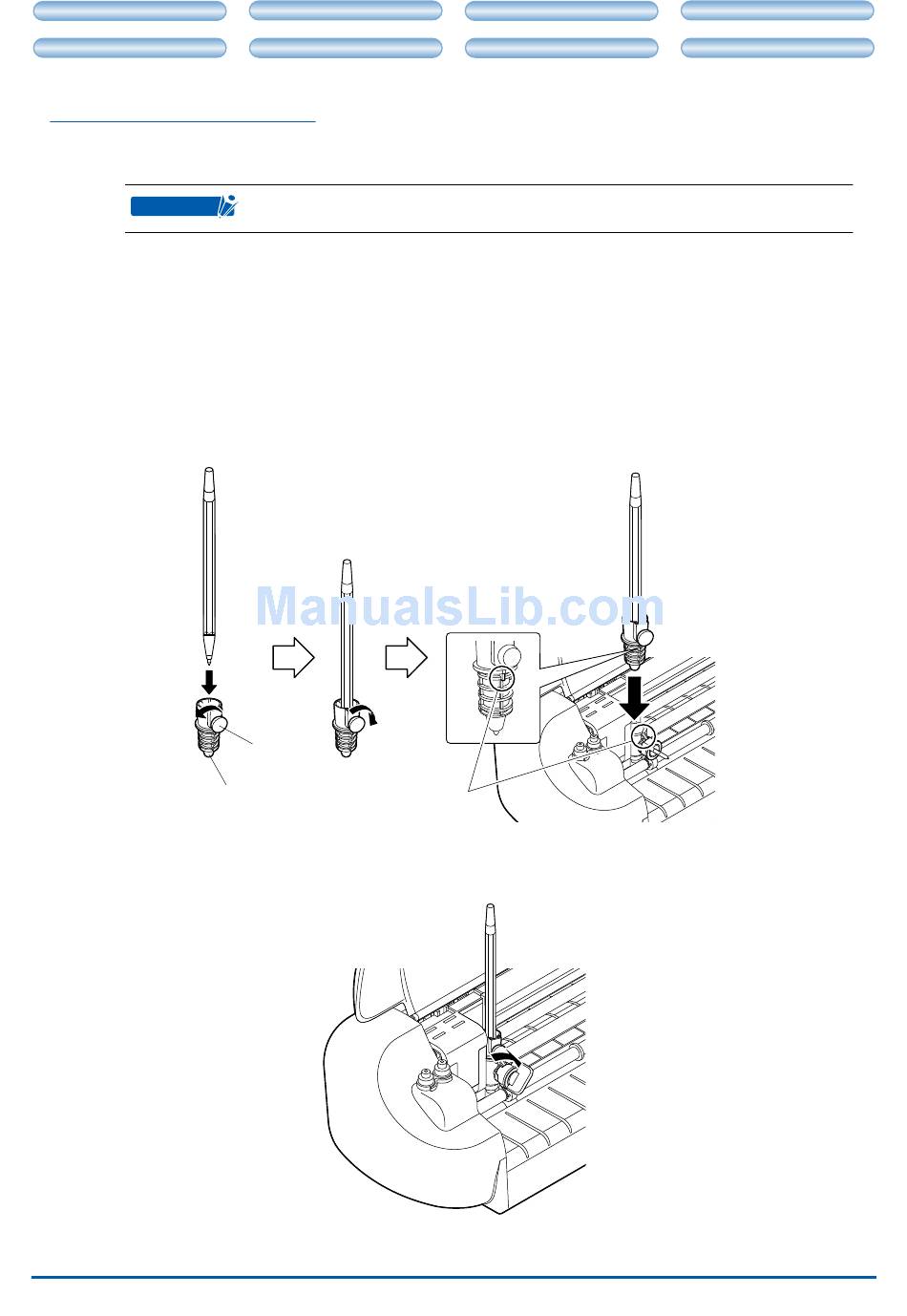

CHECKPOINT
(1) Loosen the thumbscrew on the ballpoint pen plunger by turning it counterclockwise.
(2) Insert the ballpoint pen into the plunger.
(3) Confirm that the tip of the ballpoint pen protrudes 3 - 3.5 mm from the plunger.
(4) Tighten the thumbscrew by turning it clockwise.
(5) Turn the lock lever to the left (OPEN direction) to loosen the tool holder.
(6) Mount the ballpoint pen plunger in the tool holder while making sure that the protrusion on the
plunger faces the front and that it is aligned with the notch in the tool holder.
(7) When the pen plunger has been mounted, turn the lock lever to the right (CLOSE direction) to
tighten it.
2-16
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
When mounting the ballpoint pen plunger, always align it with the notched part of the tool
holder.
Ballpoint pen
Loosen
Tighten
Thumb
screw
Ballpoint pen
plunger
