Startng up from Craft ROBO-compatble software (such as ROBO Master)

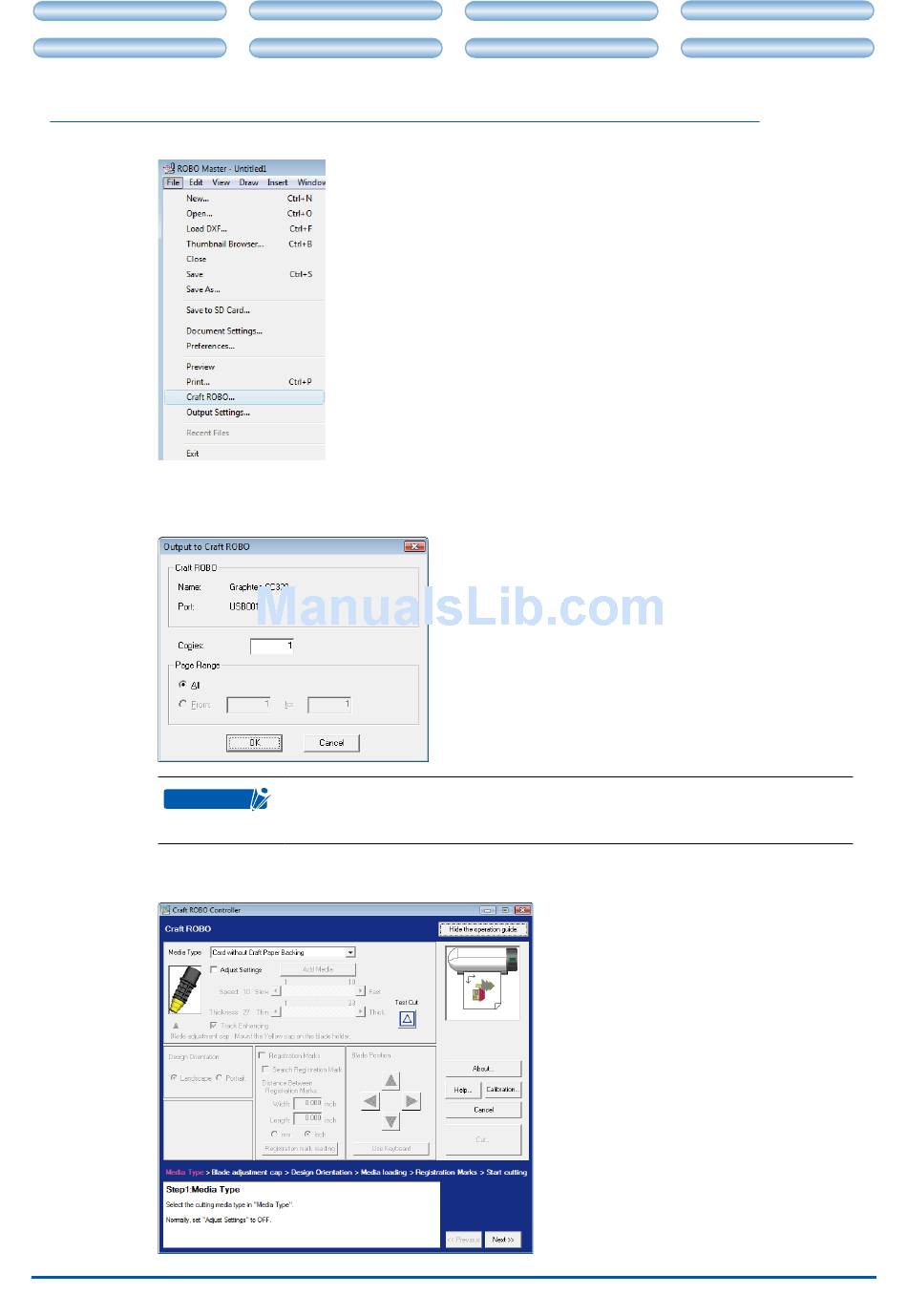

(1) Click [Craft ROBO] in the File menu of ROBO Master.
(2) The "Output to Craft ROBO" window will open. Click [OK] to start up the Craft ROBO
Controller. When the Craft ROBO Controller is started up from the ROBO Master, the [Cut]
button is displayed, enabling output from the Controller.
CHECKPOINT
(3) When the Craft ROBO Controller is started up, a window similar to the one shown below is
displayed.
3-6
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
The above procedure is an example using the ROBO Master. The Craft ROBO can
also be started up from other compatible software applications. Please refer to the
user's manual provided with each software application for the start-up procedure.
