2.5 Adjusting and Mounting the Blade Plunger
The blade adjustment cap controls the blade length. To obtain optimum cutting results, select the blade
adjustment cap for the blade plunger to suit the type of media to be cut.
When handling the cutter blade, take care not to cut your hands.
Caution

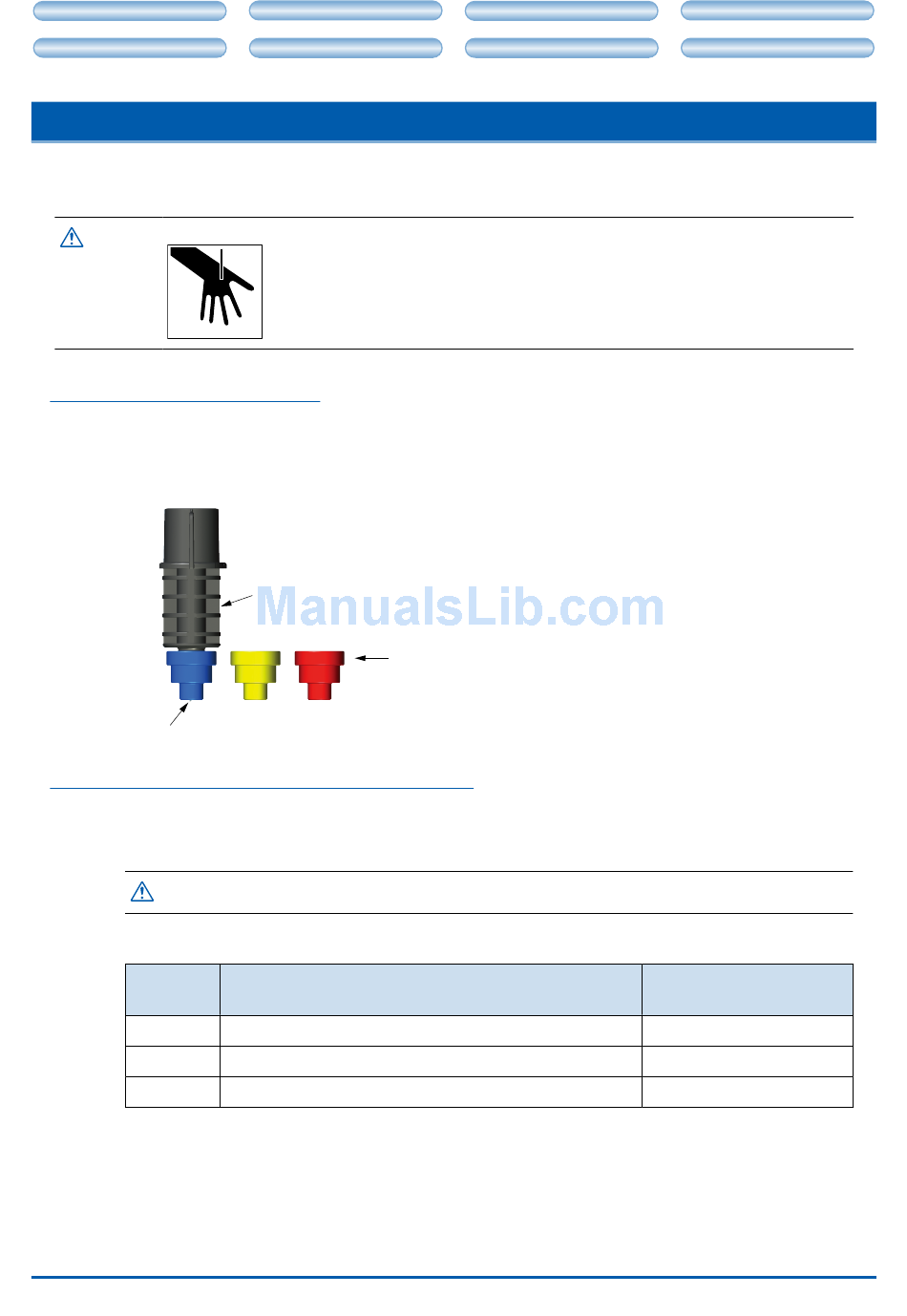

Blade plunger constructon
The blade plunger consists of a plunger to which a cap containing a blade is attached. The length
of the blade protruding from the cap can be adjusted by selecting one of the three available blade
adjustment caps.
Select the blade adjustment cap best suited for the media you plan to use.
Blade
Blade adjustment caps and meda selecton
Select and attach the blade adjustment cap best suited to the media you plan to use. To prevent
damage to the cutting mat, the length of the blade protruding from the cap should not exceed the
thickness of the media.
Caution
Selection guide for blade adjustment caps
Cap
Blue
Yellow
Red
2-12
CONTENTS
CONTENTS
CH 4. CUTTING DATA SAVED ON SD CARD
CH 4. CUTTING DATA SAVED ON SD CARD
Plunger
Blade adjustment cap
• Blue: Thin media, thin paper or film
• Yellow: Medium thick paper such as Kent paper, thick film
• Red: Thick paper such as scrapbooking paper
When handling the cutter blade, take care not to cut your hands.
Media
Thin media, thin paper or film
Medium thick paper such as Kent paper, thick film
Thick paper such as scrapbooking paper
CH 1. PRIOR TO USE
CH 1. PRIOR TO USE
APPENDIX A
APPENDIX A
CHAPTER 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
CH 2. CONNECTION AND PREPARATION
INDEX
INDEX
Protruding blade length
(approx.)
0.1 mm
0.2 mm
0.3 mm
